Rittal

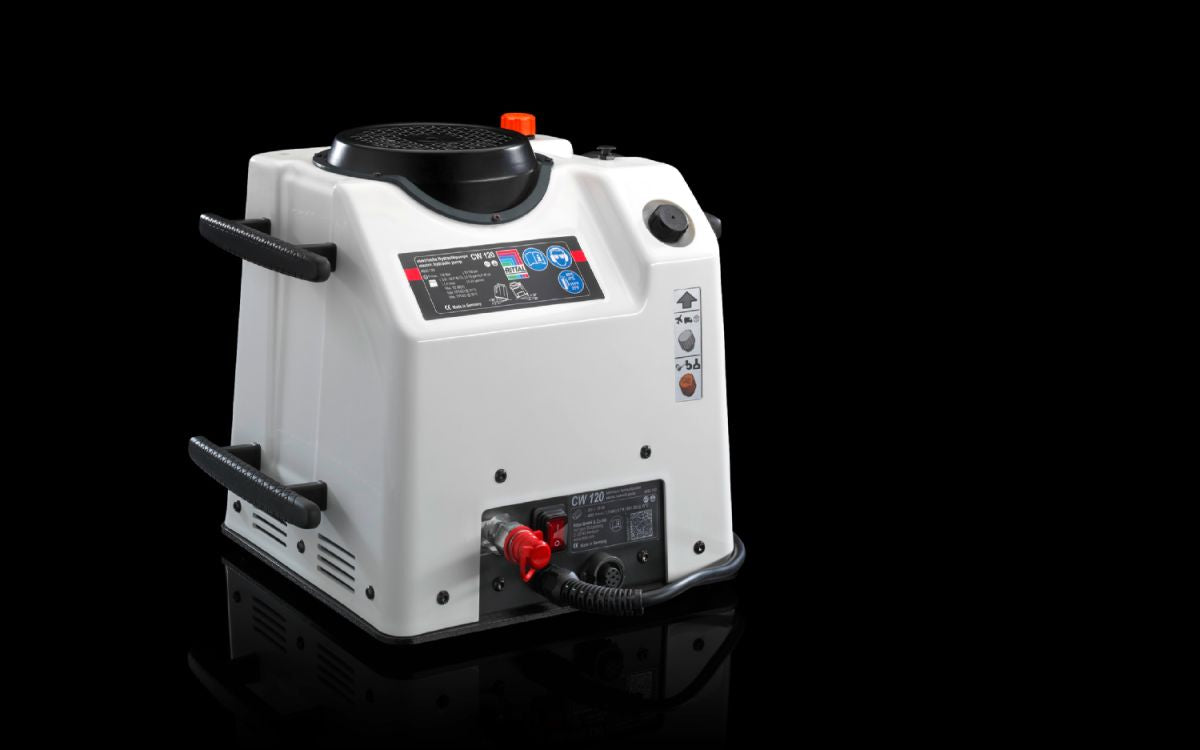

Rittal AS 4055.720, Electro-hydraulic pump
Rittal AS 4055.720, Electro-hydraulic pump
Regular price
€5.056,46
Regular price
Sale price
€5.056,46
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:AS 4055.720
The electro-hydraulic pump is used to drive products in the CW 120-S series.
| Article number: | AS 4055.720 |
| Product description | The electro-hydraulic pump is used to drive products in the CW 120-S product series. |
| Power consumption | 1.3 kW |
| Filling volume | 3.2 l |
| Working volume | 2.2 l |
| Flow rate (max.) | 1.1 l/min |
| Oil (type) | HLP 46 |
| Rated operating voltage | 230 V, 50 Hz |
| Rated current | 5.65 A |
| Machine dimensions | Width: 400 mmHeight: 325 mmDepth: 335 mm |
| Support area | Width: 402 mmHeight: 342 mmDepth: 397 mm |
| Permissible operating pressure (p. max.) | 700 bar |
| Packs of | 1 pc(s). |
| Net weight | 32 kg |
| Gross weight | 34.5 kg |
| Customs tariff number | 84138100 |
| EAN | 4028177920644 |
| ETIM 9 | EC011047 |
| ETIM 8 | EC011047 |
| ECLASS 8.0 | 27301290 |
| Product description | Electro-hydraulic pump suitable for CW 120 – S and hydraulic cylinders |
