Rittal

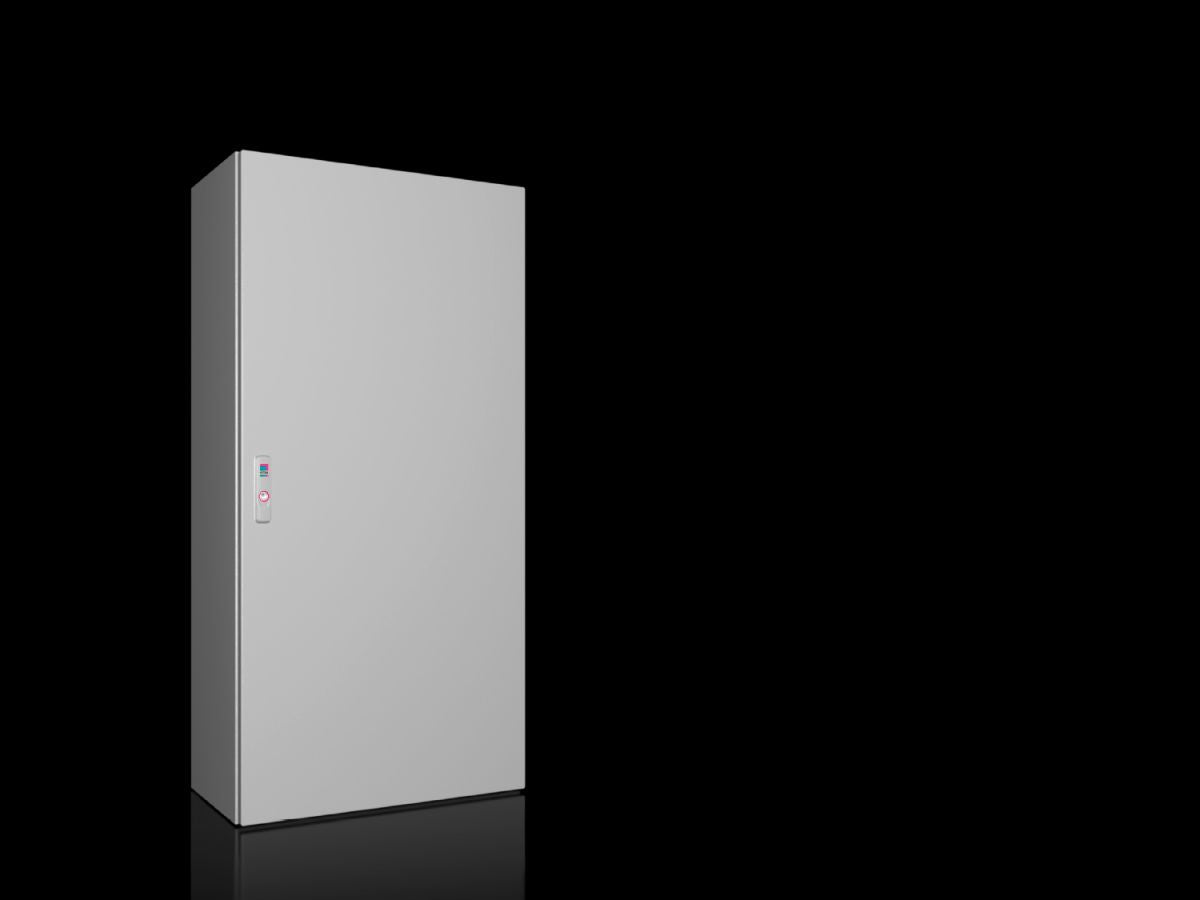

Rittal AX 1260.000, Basic enclosure AX, sheet steel
Rittal AX 1260.000, Basic enclosure AX, sheet steel
Regular price
€317,35
Regular price
Sale price
€317,35
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:AX 1260.000
The compact enclosure AX with integral enclosure locators in the roof, base and side forms the familiar 25 mm system pitch pattern from the VX25 large enclosure. With this unique, patented system, AX compact enclosures are prepared for all types of configurations and refits. System components and accessories are easily, quickly and securely installed and retrofitted on rails, with no drilling required.
| Article number: | AX 1260.000 |
| Benefits | More interior installation options thanks to integral enclosure locators on a 25 mm system pitch pattern combined with the interior installation rail and our diverse range of system accessories |
| Material | Enclosure: Sheet steelDoor: Sheet steel, all-round foamed-in PU seal |
| Surface finish | Enclosure and door: Dipcoat primed, powder-coated on the outside, textured paintMounting plate: Zinc-plated |
| Colour | RAL 7035 |
| Supply includes | Enclosure with door(s)Gland plate(s) in enclosure baseMounting platePerforated door stripLock: 3 mm double-bit |
| Protection category NEMA | NEMA 1 |
| Protection category to IEC 60 529 | IP 66 |
| Type rating to UL 50E | Type 1 |
| IK Code | IK10 |
| Dimensions | Width: 600 mmHeight: 1,200 mmDepth: 300 mm |
| Material thickness - door | 2 mm |
| Material thickness - enclosure | 1.5 mm |
| Material thickness of mounting plate | 2.5 mm |
| Dimensions mounting plate (W x H) | 545 mm x 1,175 mm |
| Number of doors | 1 |
| Interchangeable door hinge | Yes |
| Lock | Lock version: 3-point lock systemNumber of locks: 1Lock insert: 3 mm double-bit |
| Gland plate | Size: 7Qty.: 1 |
| Basic material | Sheet steel |
| Packs of | 1 pc(s). |
| Net weight | 45.4 kg |
| Gross weight | 50 kg |
| PCF per pack (cradle-to-gate) | 156.9 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 94032080 |
| EAN | 4028177813274 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | AX Compact enclosure, WHD: 600x1200x300 mm, sheet steel, with mounting plate, single-door, with 3-point lock system |
