Rittal

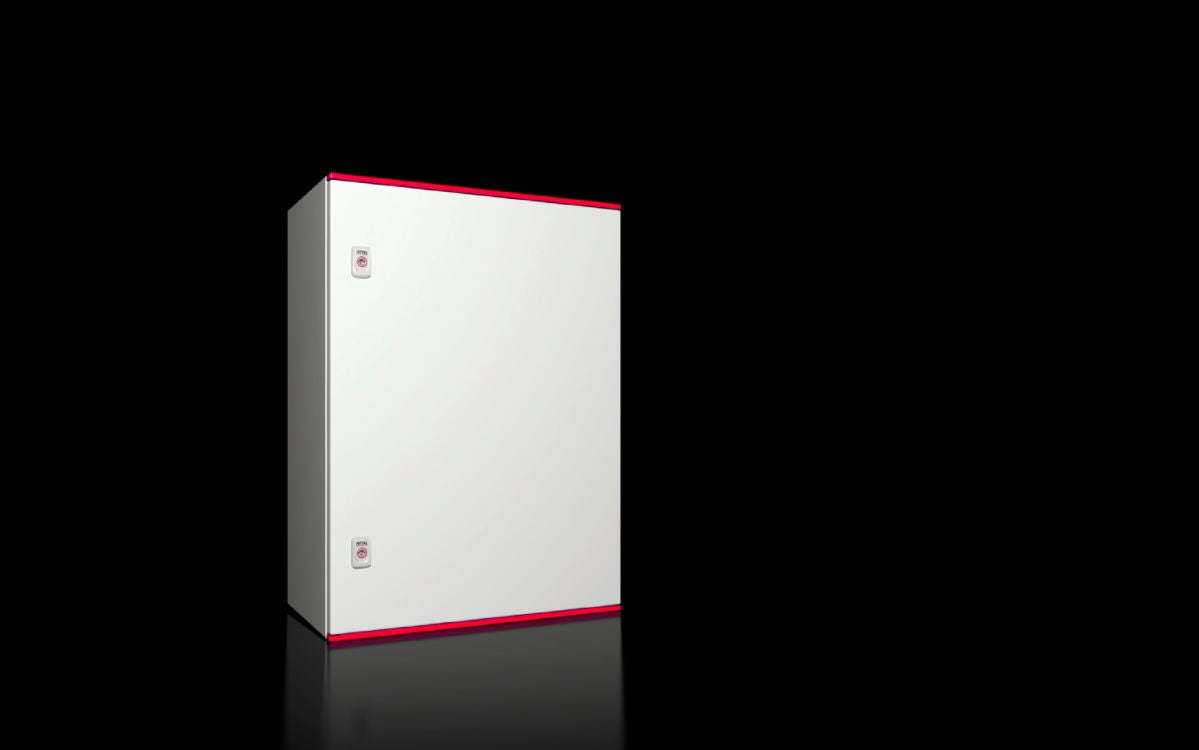

Rittal AX 1468.000, Plastic enclosures AX without viewing window
Rittal AX 1468.000, Plastic enclosures AX without viewing window
Regular price
€493,33
Regular price
Sale price
€493,33
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 09.12.2025
Couldn't load pickup availability
SKU: SKU:AX 1468.000
AX plastic enclosures are ideal for applications in challenging situations. Numerous mounting bosses inside the enclosure allow individual interior configuration on a 25 mm pitch pattern, e.g. with punched sections and rails.
| Article number: | AX 1468.000 |
| Design | without viewing window |
| Material | Enclosure and door: Fibreglass-reinforced unsaturated polyesterDoor: All-round foamed-in PU sealMounting plate: Sheet steelFire protection corresponding to UL 94-V0Halogen free |
| Surface finish | Enclosure and door: Dyed plastic with no after-treatmentMounting plate: Zinc-plated |
| Colour | Similar to RAL 7035 |
| Supply includes | Enclosure with hinged door, of all-round solid construction, 3 mm double-bit lockDoor hinged on the right, may be swapped to the leftMounting plateTwin seal on the top and bottom edges of the door as integral rain protection strip |
| Note | If exposed to long-term UV radiation (sunlight) and rain, we recommend spray-finishing the surface with a PUR paint to avoid any visual impairments to the surface. Prices and delivery times on request. |
| Protection category NEMA | NEMA 1 |
| Protection category to IEC 60 529 | IP 66 |
| Type rating to UL 50E | Type 1 |
| Protection class | II (at 1000 V AC) |
| IK Code | IK09 |
| Dimensions | Width: 600 mmHeight: 800 mmDepth: 300 mm |
| Material thickness of mounting plate | 3 mm |
| Dimensions mounting plate (W x H) | 505 mm x 725 mm |
| Door opening angle | 130° |
| Number of locks | 2 |
| Basic material | Plastic |
| Standards | Meets the F1 outdoor rating to UL 746C |
| Assembly instruction | Interior installation screws are required to secure components inside the enclosure |
| Packs of | 1 pc(s). |
| Net weight | 24.8 kg |
| Gross weight | 25.38 kg |
| Customs tariff number | 94037000 |
| EAN | 4028177006928 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | AX Plastic enclosure, WHD: 600x800x300 mm, without viewing window |
