Rittal

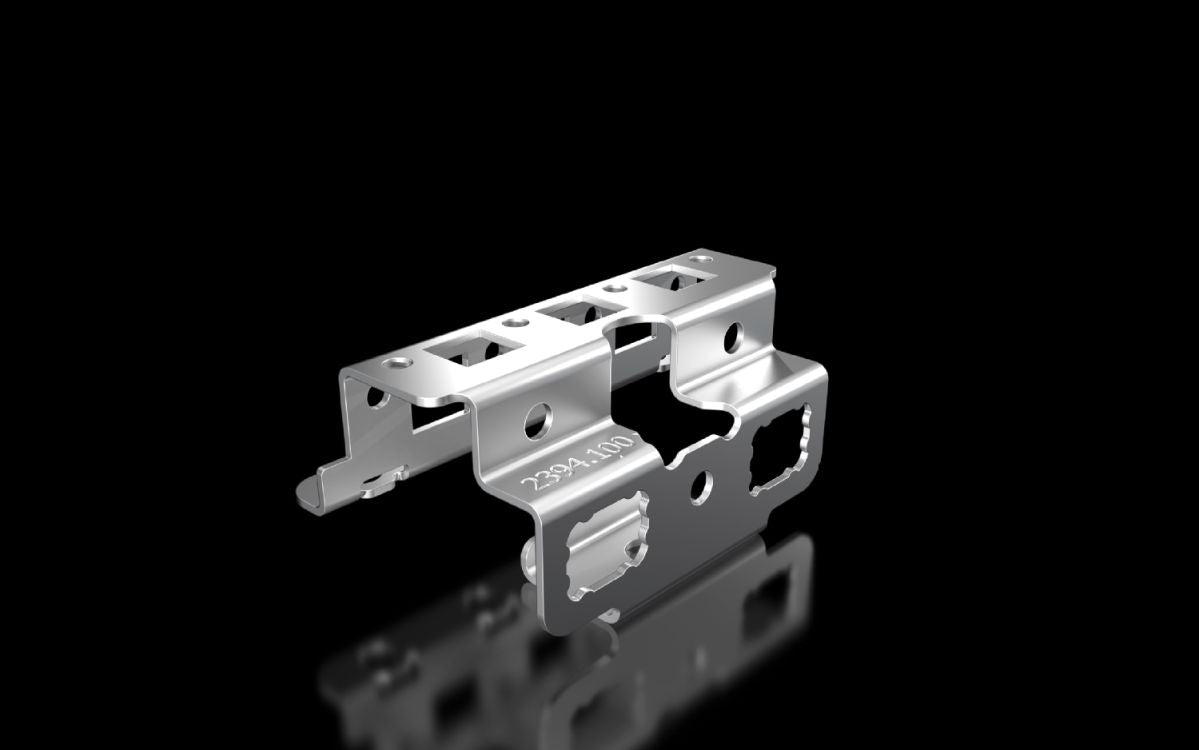

Rittal AX 2394.100, Base configuration rail for AX
Rittal AX 2394.100, Base configuration rail for AX
Regular price
€30,20
Regular price
Sale price
€30,20
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 03.12.2025
Couldn't load pickup availability
SKU: SKU:AX 2394.100
Rail for flexible interior configuration of AX compact enclosures in combination with the new AX rail for interior installation. For mounting e.g. VX punched section with mounting flange 23 x 64 mm, LED system lights, VX cable clamp rails and support rails.
| Article number: | AX 2394.100 |
| Product description | For mounting in the enclosure depth, on the existing threaded bolts, no machining required. System punchings on 2 sides. Creates additional installation options. |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | Assembly parts |
| Length | 99 mm |
| Installation options | For installation in AX sheet steel, only in conjunction with rail for interior installation AX |
| To fit | Enclosure type: AX |
| Packs of | 4 pc(s). |
| Net weight | 0.4 kg |
| Gross weight | 0.451 kg |
| PCF per pack (cradle-to-gate) | 1.6 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177965737 |
| ETIM 9 | EC002620 |
| ETIM 8 | EC002620 |
| ECLASS 8.0 | 27189234 |
| Product description | AX base configuration rail |
