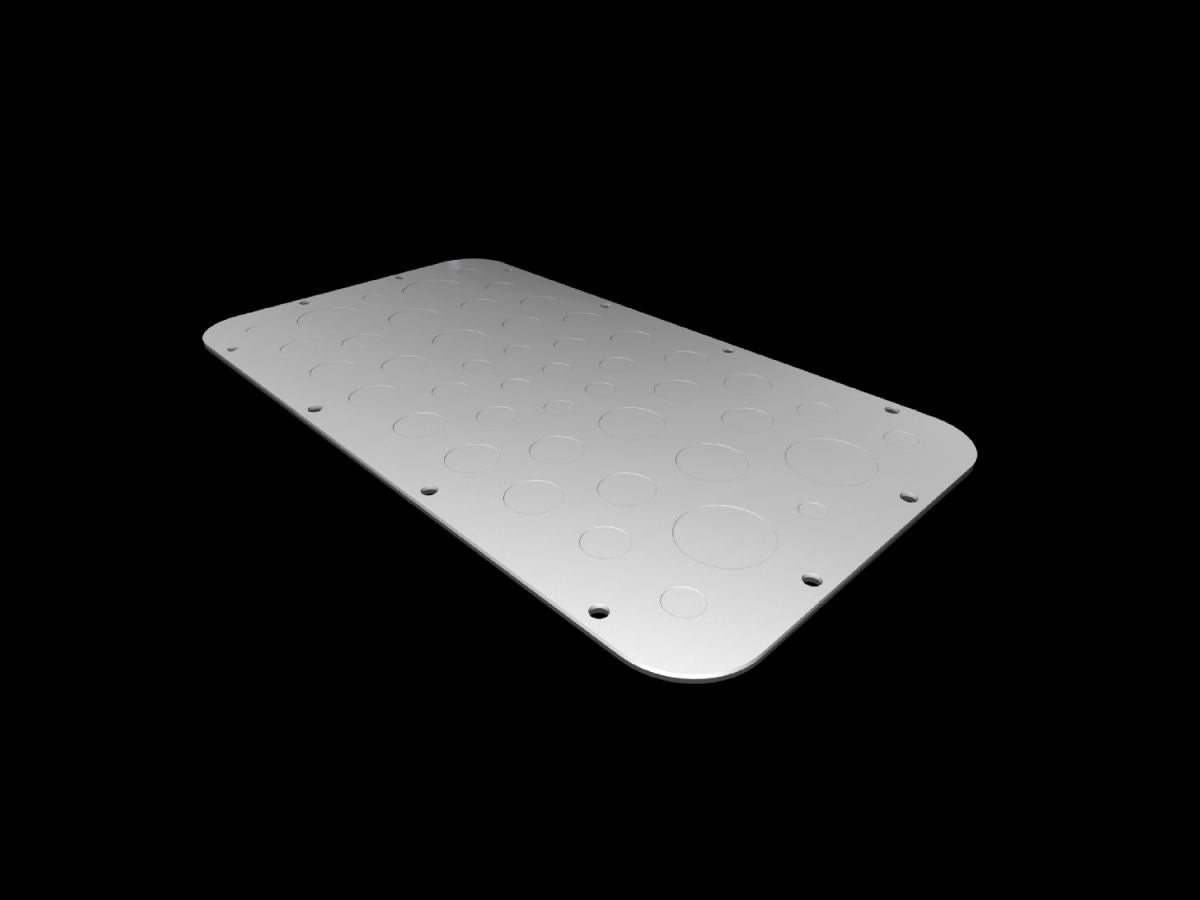

Rittal AX 2576.100, Metal gland plate with metric knockouts, for AX
Rittal AX 2576.100, Metal gland plate with metric knockouts, for AX
Regular price
€30,62
Regular price
Sale price
€30,62
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:AX 2576.100
Simply knock out the holes for the cable glands using a screwdriver.
| Article number: | AX 2576.100 |
| Product description | Simply knock out the holes for the cable glands using a screwdriver. |
| Material | Sheet steel |
| Colour | RAL 7035 |
| Note | The allocation of gland plate sizes is indicated on the relevant enclosures |
| No. of metric knockouts | 2 x M1210 x M168 x M2018 x M254 x M324 x M40 |
| Dimensions | Width: 401 mmDepth: 221 mm |
| To fit | Enclosure type: AX |
| Gland plate | Size: 6 |
| Protection category to IEC 60 529 | IP 66 if installed correctly |
| Type rating to UL 50E | Type 1 |
| Number knockouts | 21081844 |
| Metric diameter | M12 |
| Packs of | 1 pc(s). |
| Net weight | 1.07 kg |
| Gross weight | 1.073 kg |
| PCF per pack (cradle-to-gate) | 5.4 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177925281 |
| ETIM 9 | EC000211 |
| ETIM 8 | EC000211 |
| ECLASS 8.0 | 27142421 |
| Product description | SZ Metal gland plate, for AX, with metric knockouts, WD: 401x221 mm, for gland plates size 6 |
