Rittal

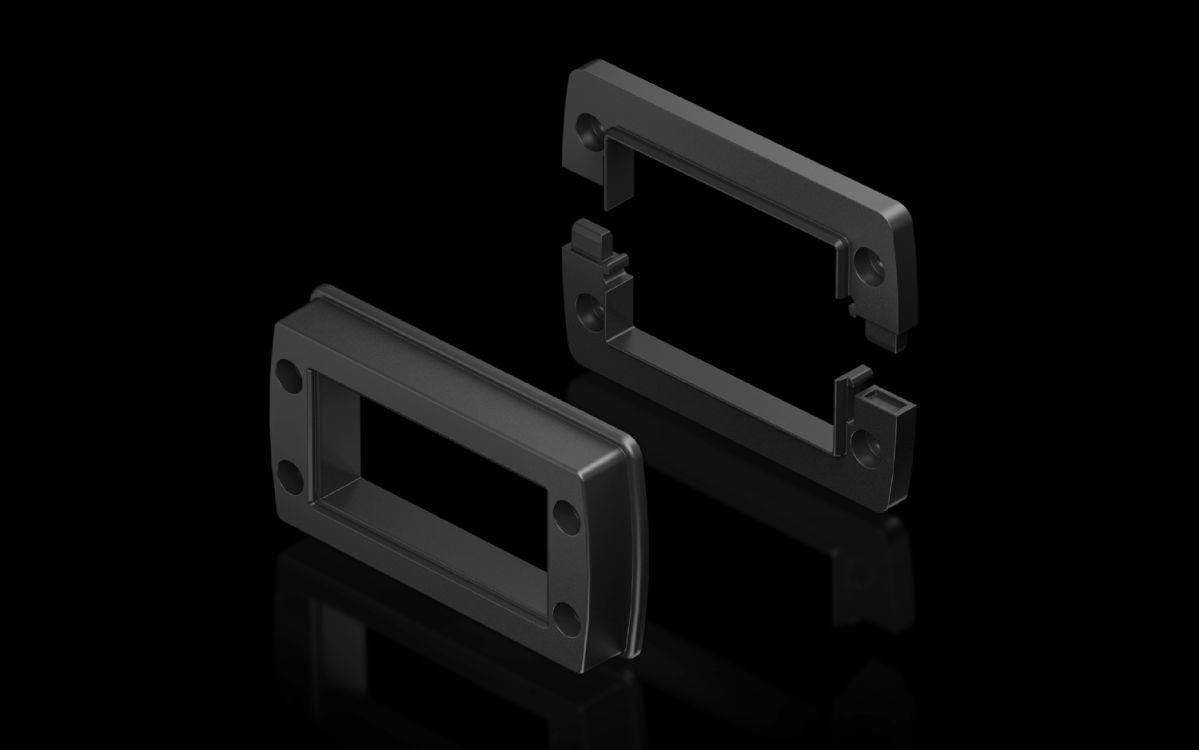

Rittal AX 2583.100, Sealing frame, modular
Rittal AX 2583.100, Sealing frame, modular
Regular price
€30,62
Regular price
Sale price
€30,62
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:AX 2583.100
For the universal use on all surfaces and walls, for feeding through pre-fabricated cables with connectors. Can also be mounted onto 24-pole or 16-pole connector cut-outs.
| Article number: | AX 2583.100 |
| Design | for 10 seal inserts, small |
| Product description | For the universal use on all surfaces and walls, for feeding through pre-fabricated cables with connectors. Can also be mounted onto 24-pole or 16-pole connector cut-outs. |
| Material | Plastic |
| Colour | Black |
| Supply includes | Sealing frameLocking frame |
| Required cut-out | 113.5 x 46 mm (24-pole) |
| Dimensions | Width: 153.08 mmDepth: 70.08 mm |
| IP protection category to IEC 60 529 | IP 66 |
| Packs of | 1 pc(s). |
| Net weight | 0.12 kg |
| Gross weight | 0.14 kg |
| Customs tariff number | 39269097 |
| EAN | 4028177939912 |
| ETIM 9 | EC000441 |
| ETIM 8 | EC000441 |
| ECLASS 8.0 | 27149109 |
| Product description | SZ Sealing frame, for cable entry, modular, for 10 seal inserts or, for connector cut-outs, 24-pole |
