Rittal

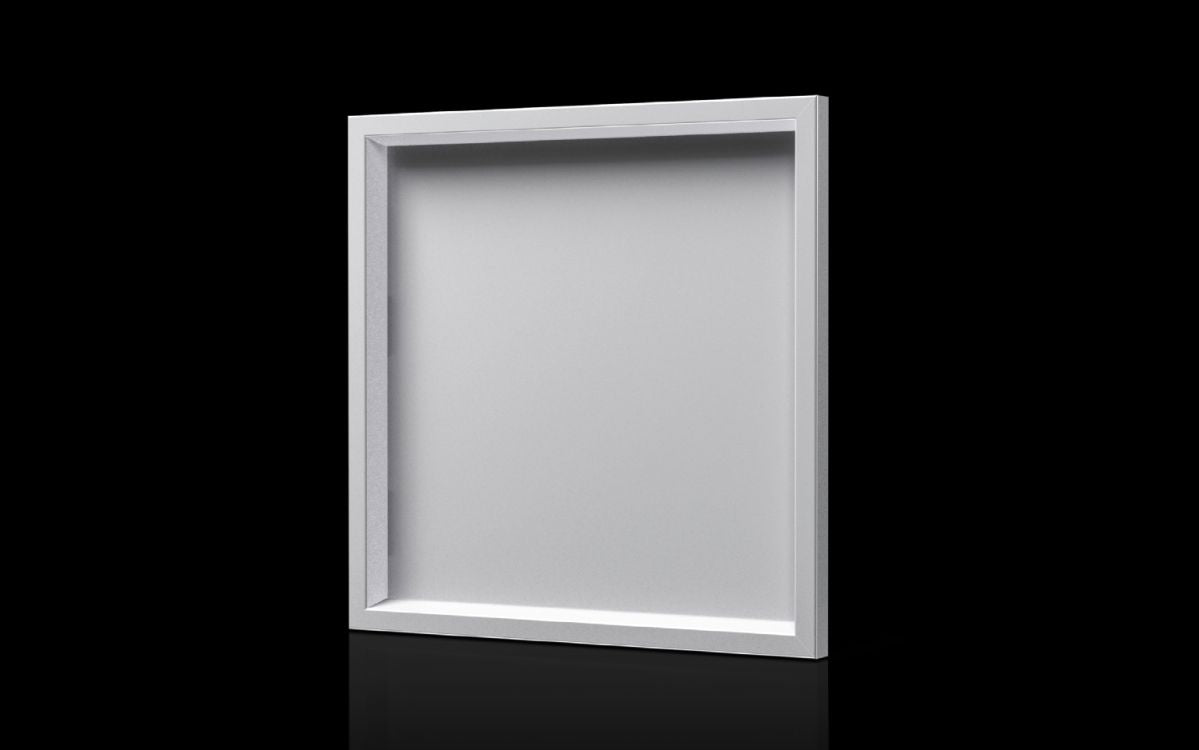

Rittal AX 2743.010, Operating panel for AX
Rittal AX 2743.010, Operating panel for AX
Regular price
€164,86
Regular price
Sale price
€164,86
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:AX 2743.010
For external mounting on an AE enclosure instead of a door and on surfaces. Frame construction with internal corner connectors, 3 mm aluminium plate secured from the inside.
| Article number: | AX 2743.010 |
| Product description | For external mounting on an AE enclosure instead of a door and on surfaces. Frame construction with internal corner connectors, 3 mm aluminium plate secured from the inside. |
| Material | Aluminium, natural anodised |
| Supply includes | Aluminium frameDisplay panelHingesBrackets |
| Protection category to IEC 60 529 | IP 54 |
| To fit Model No. | 1008.000 |
| Note | When installing instead of a door, the cam lock is required |
| To fit | Enclosure type: AXWidth: = 380 mmHeight: = 600 mm |
| Dimensions | Width: 377 mmHeight: 597 mmDepth: 36 mm |
| Dimensions of aluminium plate | Width: 323 mmHeight: 543 mm |
| Area available for population | Width: 307 mmHeight: 527 mm |
| Packs of | 1 pc(s). |
| Net weight | 3.22 kg |
| Gross weight | 3.44 kg |
| Customs tariff number | 76169990 |
| EAN | 4028177938533 |
| ETIM 9 | EC000747 |
| ETIM 8 | EC000747 |
| ECLASS 8.0 | 27182204 |
| Product description | FT Operating panel, WHD: 377x597x36 mm, for AE enclosures instead of the door and surfaces |
