Rittal

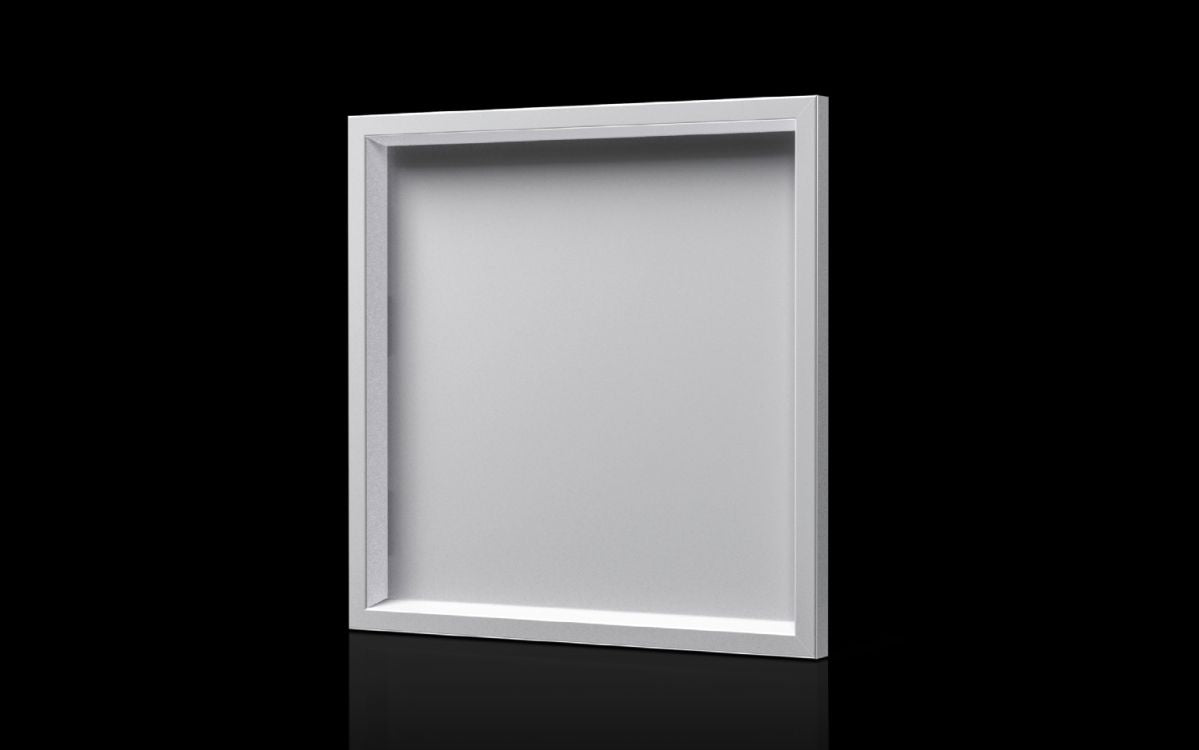

Rittal AX 2744.010, Operating panel for AX
Rittal AX 2744.010, Operating panel for AX
Regular price
€164,86
Regular price
Sale price
€164,86
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:AX 2744.010
For external mounting on an AE enclosure instead of a door and on surfaces. Frame construction with internal corner connectors, 3 mm aluminium plate secured from the inside.
| Article number: | AX 2744.010 |
| Product description | For external mounting on an AE enclosure instead of a door and on surfaces. Frame construction with internal corner connectors, 3 mm aluminium plate secured from the inside. |
| Material | Aluminium, natural anodised |
| Supply includes | Aluminium frameDisplay panelHingesBrackets |
| Protection category to IEC 60 529 | IP 54 |
| To fit Model No. | 1009.000 |
| Note | When installing instead of a door, the cam lock is required |
| To fit | Enclosure type: AXWidth: = 600 mmHeight: = 380 mm |
| Dimensions | Width: 597 mmHeight: 377 mmDepth: 36 mm |
| Dimensions of aluminium plate | Width: 543 mmHeight: 323 mm |
| Area available for population | Width: 527 mmHeight: 307 mm |
| Packs of | 1 pc(s). |
| Net weight | 3.131 kg |
| Gross weight | 3.331 kg |
| Customs tariff number | 76169990 |
| EAN | 4028177938540 |
| ETIM 9 | EC000747 |
| ETIM 8 | EC000747 |
| ECLASS 8.0 | 27182204 |
| Product description | FT Operating panel, WHD: 597x377x36 mm, for AE enclosures instead of the door and surfaces |
