Rittal

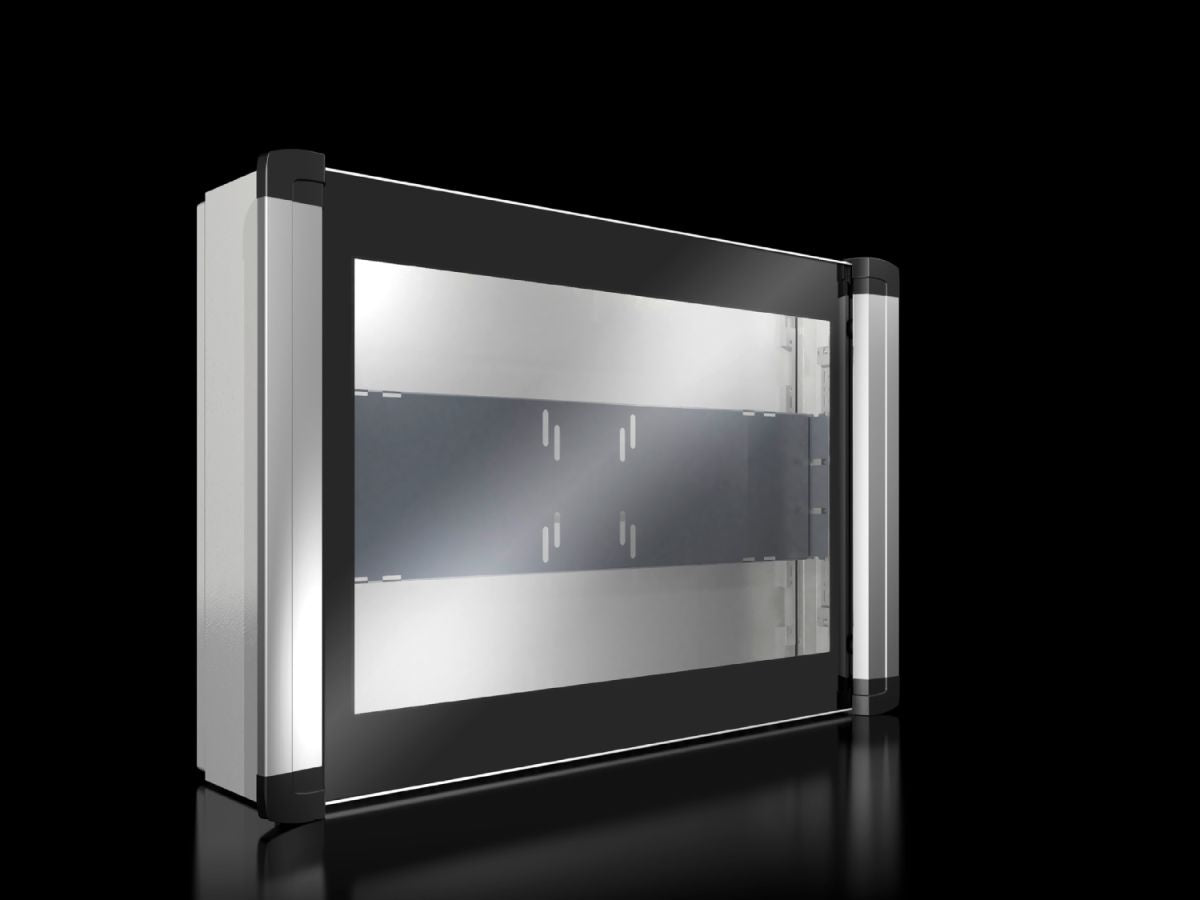

Rittal AX 6321.050, Operating housing AX for desktop TFT up to 24"
Rittal AX 6321.050, Operating housing AX for desktop TFT up to 24"
Regular price
€500,69
Regular price
Sale price
€500,69
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:AX 6321.050
The operating housing for desktop TFT up to 24" based on AX, sheet steel, with an integrated VESA 75/100 bracket. Effective and appealing protection for standard desktop TFTs up to 24" in the formats 16:9/16:10. High protection category IP 65.
| Article number: | AX 6321.050 |
| Product description | For the installation of commercially available desktop TFTs with a screen diagonal of up to 24" in the formats 16:9/16:10. |
| Material | Enclosure: Sheet steelDoor: Sheet steel, all-round foamed-in PU sealHandle strips: AluminiumCover caps: PlasticViewing window: Single-pane safety glassTFT holder: Sheet steel |
| Surface finish | Enclosure and door: Dipcoat primed, powder-coated on the outside, textured paintHandle strip: Natural anodised |
| General colour | RAL 7035 |
| Colour | Enclosure and door: RAL 7035Handle strip: Natural anodisedCover caps: similar to RAL 7024 |
| Supply includes | Enclosure with door, cut-out and reinforcement for support arm connection Ø 130 mmViewing windowHolder for desktop TFT with VESA 75/100 locatorSide handle strips and cover capsRear door with r/h hingeCam lock with 3 mm double-bit insertIntegral interior installation bracket with system punchings |
| Dimensions | Width: 650 mmHeight: 450 mmDepth: 155 mm |
| IP protection category to IEC 60 529 | IP 65 |
| Protection category NEMA | NEMA 1 |
| Type rating to UL 50E | Type 1 |
| Number of locks | 2 |
| IK Code | IK08 |
| Note | The support arm connection and door hinge may be swapped over by rotating the enclosure |
| Basic material | Sheet steel |
| Lock | Lock version: CamNumber of locks: 2Lock insert: 3 mm double-bit |
| Packs of | 1 pc(s). |
| Net weight | 15.66 kg |
| Gross weight | 15.8 kg |
| PCF per pack (cradle-to-gate) | 59.5 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 94032080 |
| EAN | 4028177923249 |
| ETIM 9 | EC002504 |
| ECLASS 8.0 | 27180505 |
| Product description | AX Operating housing, for desktop TFT up to 24", WHD: 650x450x155 mm, sheet steel, aluminium handle strips |
