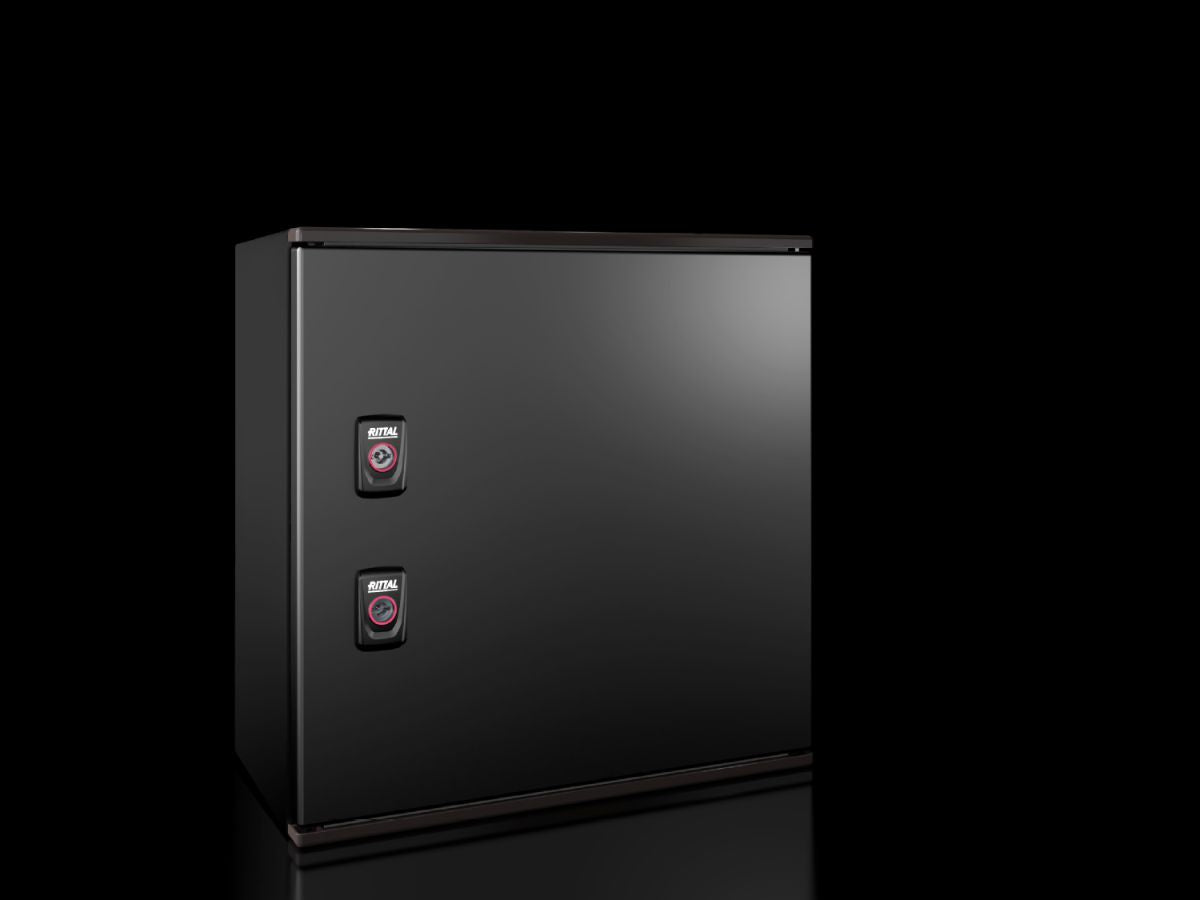

Rittal AX 9204.100, Ex enclosures AX plastic, empty enclosure with hinged door
Rittal AX 9204.100, Ex enclosures AX plastic, empty enclosure with hinged door
Regular price
€311,75
Regular price
Sale price
€311,75
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 06.01.2026
Couldn't load pickup availability
SKU: SKU:AX 9204.100
Ex enclosures with hinged door, plastic
| Article number: | AX 9204.100 |
| Design | Ex enclosures |
| Applications | Zone 1 and 2 or 21 and 22 to 2014/34/EC |
| Material | Fibre-glass-reinforced unsaturated polyester, surface resistance: < 10⁹ ΩDoor: Fibreglass-reinforced unsaturated polyester, surface resistance: < 10⁹ Ω, bonded all-round silicone sealMounting plate: Sheet steel, zinc-plated |
| Colour | RAL 9011 |
| Supply includes | EnclosureDoorMounting plate |
| Dimensions | Width: 400 mmHeight: 400 mmDepth: 200 mm |
| Dimensions mounting plate (W x H) | 305 mm x 325 mm |
| Material thickness of mounting plate | 2.5 mm |
| Certificate IEC EX PTB 10.0011U | Yes |
| Certificate PTB 03 ATEX 1011U | Yes |
| Lock | Number of locks: 2 |
| IP protection category to IEC 60 529 | IP 65 |
| Protection category NEMA | Type 1 |
| IK Code | IK09 |
| Operating temperature range | -40 °C...70 °C |
| Operating temperature | The specified temperatures may be limited by the installed equipment |
| Packs of | 1 pc(s). |
| Net weight | 8.7 kg |
| Gross weight | 8.9 kg |
| Customs tariff number | 94037000 |
| EAN | 4028177952089 |
| ETIM 9 | EC002503 |
| ECLASS 8.0 | 27180502 |
| Product description | AX Ex enclosure, WHD: 400x400x200 mm, fibreglass-reinforced unsaturated polyester, with mounting plate, empty enclosure with hinged door |
