Rittal

Rittal CM 5001.083, Cable clamp rail C-section, for mounting plates, for VX, TS, VX SE, TP

Rittal CM 5001.083, Cable clamp rail C-section, for mounting plates, for VX, TS, VX SE, TP

€28,05
€28,05
Sale Sold out
Taxes included.

📦 Ready for dispatch: 04.12.2025

SKU: CM 5001.083

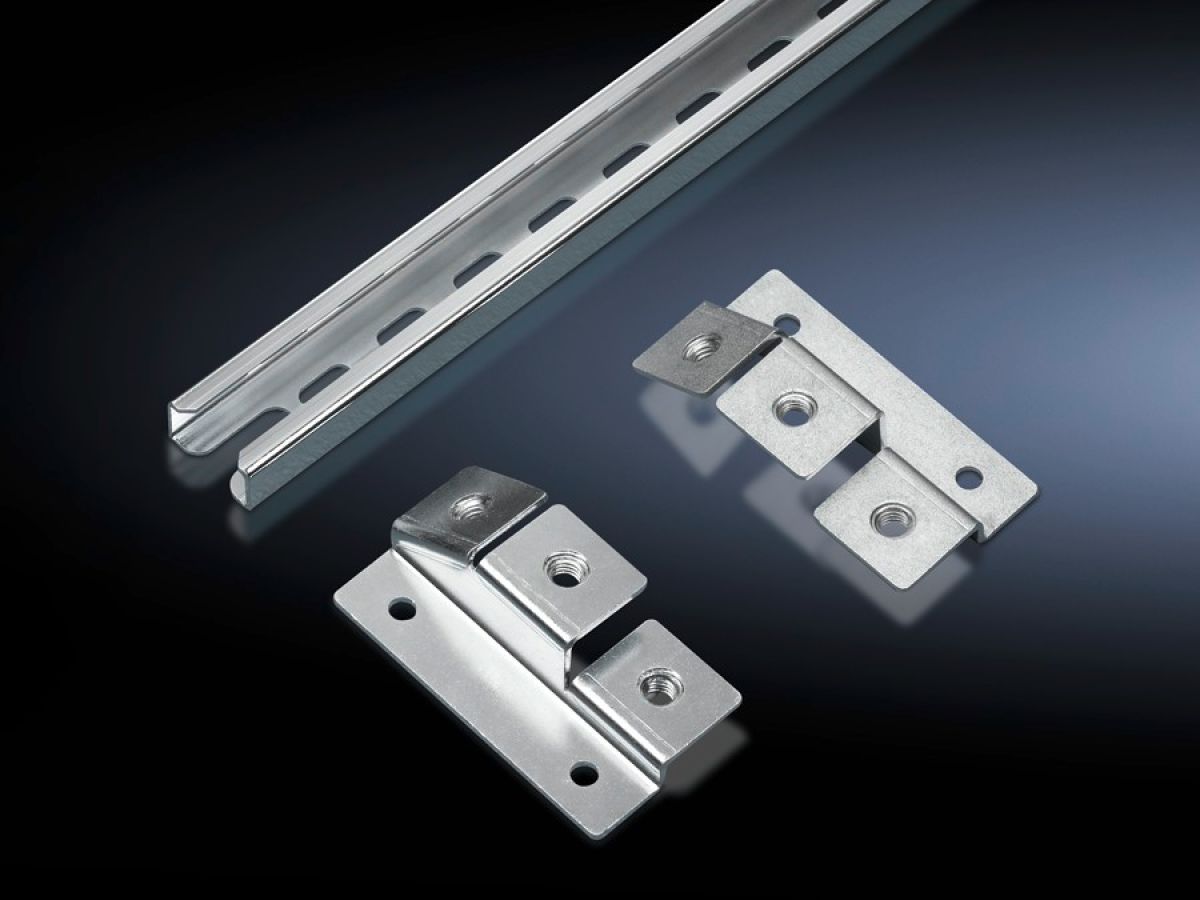

For strain relief with cable entry. The length of the cable clamp rail is tailored to the width of the mounting plate. The mounting bracket included with the supply supports three different installation situations on the mounting plate.

Article number: CM 5001.083
Product description For strain relief with cable entry. The length of the cable clamp rail is tailored to the width of the mounting plate. The mounting bracket included with the supply supports three different installation situations on the mounting plate.
Material Sheet steel
Surface finish Zinc-plated
Supply includes Two mounting brackets and assembly screws
Installation options straight, at a distance of 23 mm from the mounting plate
VX base/plinth installation options In base/plinth width/depth 1200 mm for mounting on the base/plinth corner pieces, in conjunction with metal multi-tooth screws
Installation options for VX base/plinth, stainless steel In base/plinth width 1200 mm, in conjunction with M6 multi-tooth screws and M6 nuts
To fit Base/plinth system VX
Dimensions Length: 1,099 mm
To fit Enclosure type: VXTSVX SETPWidth: = 1,200 mm
Packs of 1 pc(s).
Net weight 0.93 kg
Gross weight 1.14 kg
PCF per pack (cradle-to-gate) 1.7 kg CO2 eq (Cat B)
Note on PCF category Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number 73269098
EAN 4028177502970
ETIM 9 EC000322
ETIM 8 EC000322
ECLASS 8.0 27400604
Product description CM Cable clamp rail C-section, for mounting plates, for TS, VX TS, SE, TP, for W: 1200 mm
View full details
