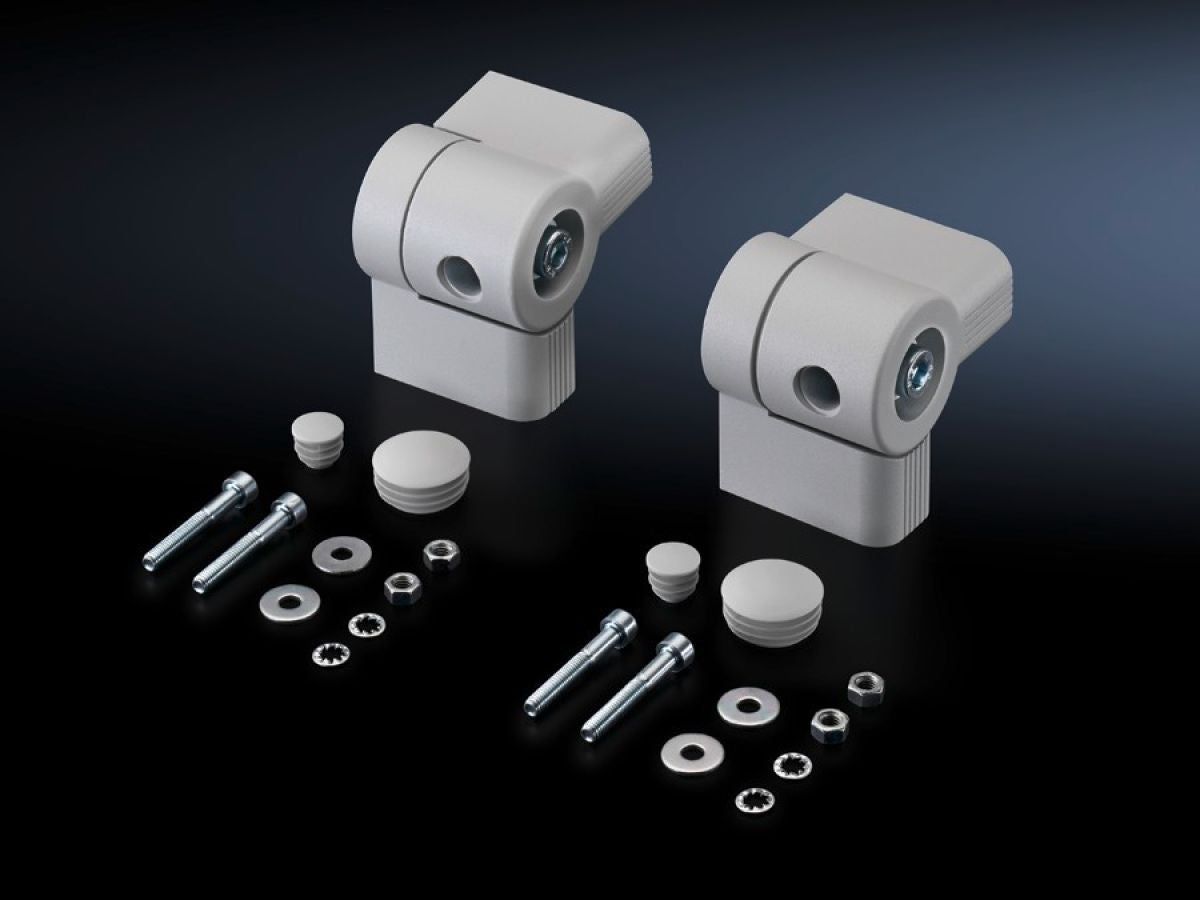

Rittal CP 6016.200, Enclosure connectors Adjustable
Rittal CP 6016.200, Enclosure connectors Adjustable
Regular price
€122,16
Regular price
Sale price
€122,16
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:CP 6016.200
For use between Command Panels, terminal boxes, compact enclosures and horizontal or vertical surfaces. Pre-mount the connector halves on both sides, screw together and secure with a locking screw, and/or adjust the angle of rotation.
| Article number: | CP 6016.200 |
| Product description | For use between Command Panels, terminal boxes, compact enclosures and horizontal or vertical surfaces. Pre-mount the connector halves on both sides, screw together and secure with a locking screw, and/or adjust the angle of rotation. |
| Material | Die-cast zinc |
| Surface finish | Powder-coated |
| Colour | RAL 7035 |
| Supply includes | Assembly parts for both sides. |
| Note | The locking screws may be exchanged for standard, commercially available clamping levers (M10 x 50 mm). |
| Rotation angle/swivel area | ±105° adjustable in 7.5° stepped increments. |
| Packs of | 2 pc(s). |
| Net weight | 1.6 kg |
| Gross weight | 1.778 kg |
| Customs tariff number | 79070000 |
| EAN | 4028177319509 |
| ETIM 9 | EC002622 |
| ECLASS 8.0 | 27189263 |
| Product description | CP Enclosure connectors, adjustable |
