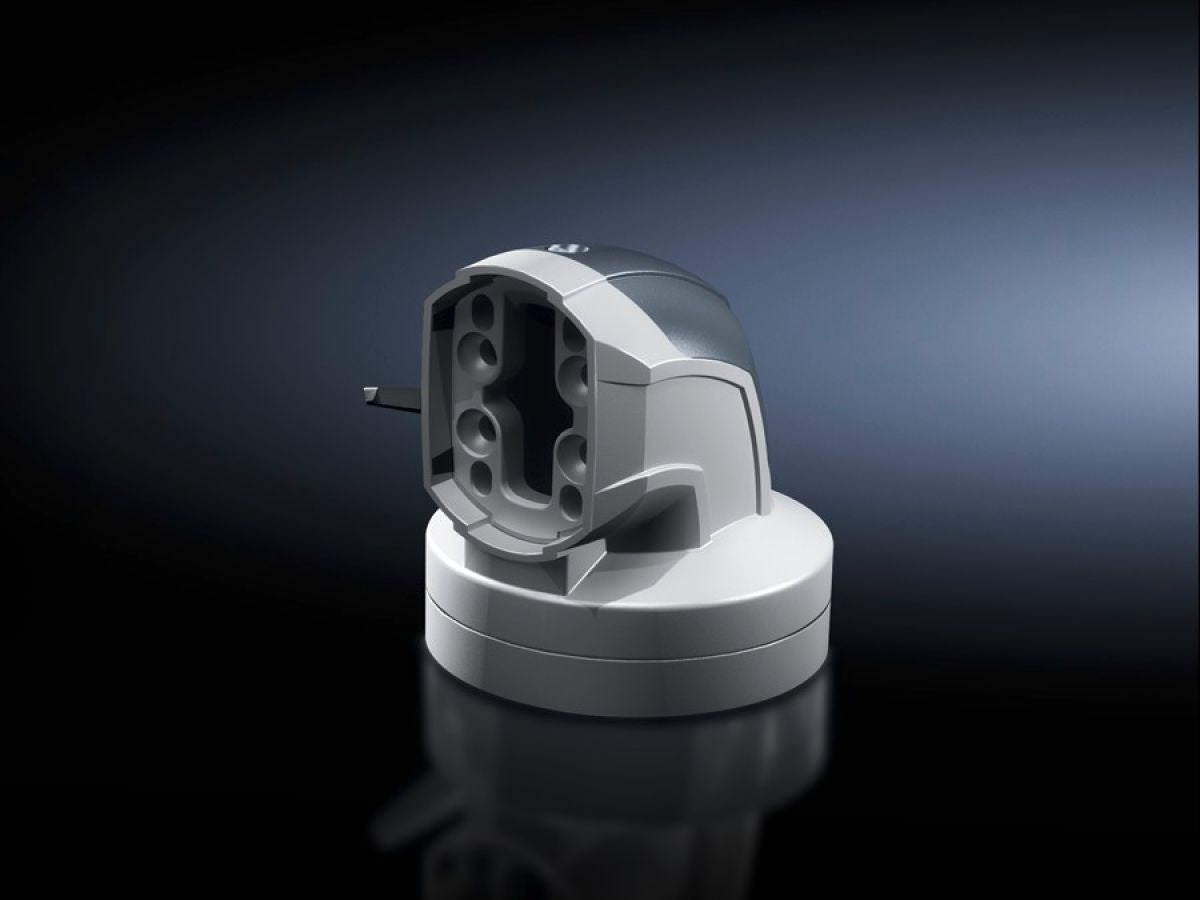

Rittal CP 6206.380, Angle coupling 90° CP 60 for support arm connection Ø 130 mm
Rittal CP 6206.380, Angle coupling 90° CP 60 for support arm connection Ø 130 mm
Regular price
€223,83
Regular price
Sale price
€223,83
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:CP 6206.380
For swivel mounting of the enclosure on the horizontal part of the support arm system. Enclosure may be suspended or top-mounted. Removable cover for simple cable entry.
| Article number: | CP 6206.380 |
| Product description | For swivel mounting of the enclosure on the horizontal part of the support arm system. Enclosure may be suspended or top-mounted. Removable cover for simple cable entry. |
| Material | Angle coupling: Cast aluminium/die-cast zincCover: Plastic |
| Colour | Angle coupling: RAL 7035Cover: RAL 7024 |
| Supply includes | SealsGrub screwsAdjusting screwsSelf-tapping screws for support section attachment |
| Rotating/tilting | Yes |
| Rotation angle/swivel area | approx. 310°, lockable via clamping levers |
| Packs of | 1 pc(s). |
| Net weight | 1.8 kg |
| Gross weight | 1.953 kg |
| Customs tariff number | 79070000 |
| EAN | 4028177684393 |
| ETIM 9 | EC000882 |
| ECLASS 8.0 | 27400556 |
| Product description | CP Angle coupling 90°, CP 60, for support arm connection Ø 130 mm |
