Rittal

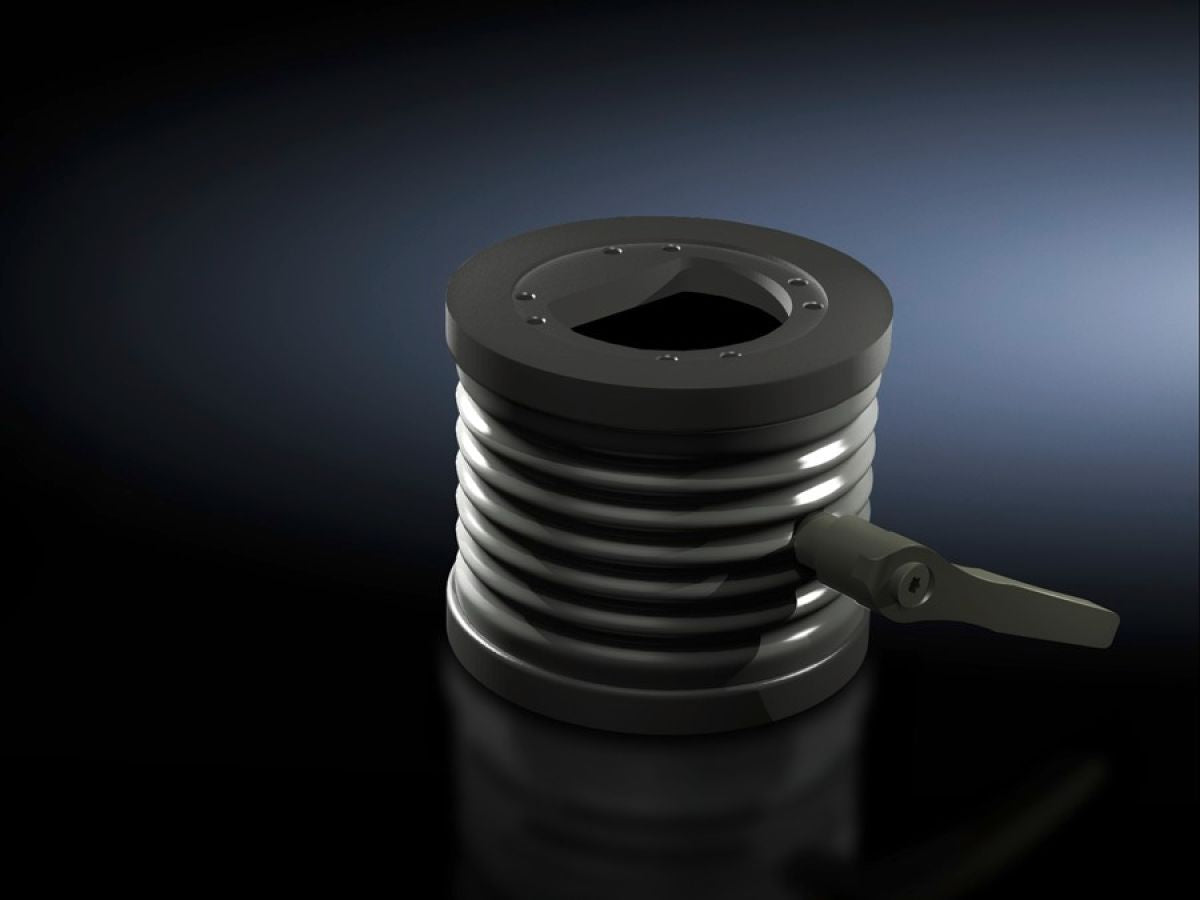

Rittal CP 6206.420, Tilting adaptor ± 45° for support arm connection Ø 130 mm
Rittal CP 6206.420, Tilting adaptor ± 45° for support arm connection Ø 130 mm
Regular price
€244,40
Regular price
Sale price
€244,40
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:CP 6206.420
For mounting between coupling, system 60/120 or attachment, system 60/120 or angle coupling 90°, system 60/120, and the command panel
| Article number: | CP 6206.420 |
| Benefits | The inner toothed hinge allows stable locking of the tilted enclosure in a variety of positions. |
| Applications | For connecting a command panel to a tilting adaptor |
| Material | Tilting adaptor: Cast aluminiumConcertina section: Plastic |
| Colour | RAL 7024 |
| Supply includes | SealsConcertina sectionAssembly parts |
| Rotating/tilting | Yes |
| Tilt angle note | Adjustable in 7.5° increments |
| Packs of | 1 pc(s). |
| Net weight | 1.35 kg |
| Gross weight | 1.42 kg |
| Customs tariff number | 76169990 |
| EAN | 4028177684447 |
| ETIM 9 | EC000882 |
| ECLASS 8.0 | 27400556 |
| Product description | CP Tilting adaptor 45°, CP 60/120, for support arm connection Ø 130 mm |
