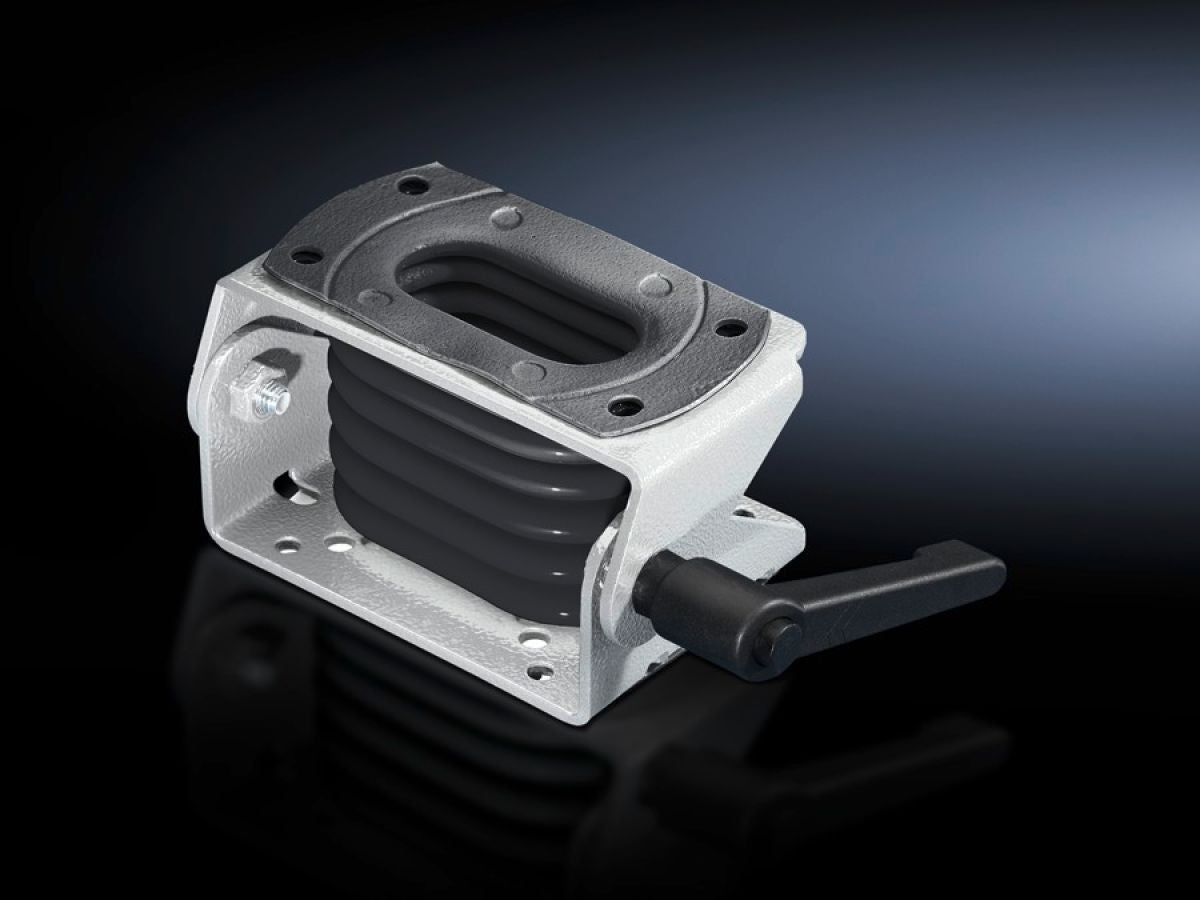

Rittal CP 6206.460, Tilting adaptor +100°/–60° for support arm connection 120 x 65 mm
Rittal CP 6206.460, Tilting adaptor +100°/–60° for support arm connection 120 x 65 mm
Regular price
€87,74
Regular price
Sale price
€87,74
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:CP 6206.460
For mounting on IW worktop, prepared for attachment Ø 130 mm, surfaces or attachments/couplings with support arm connection 120 x 65 mm. To fit enclosures up to 20 kg with support arm connection. With cable tube for protected cable entry.
| Article number: | CP 6206.460 |
| Design | For mounting onIW worktop, prepared for attachment of 130 mm diameterSurfacesAttachment/coupling with support arm connection 120 x 65 mmTo fit enclosures up to 20 kg with support arm connection90 x 71 mmØ 130 mm120 x 65 mmVESA Standard 75With cable tube for protected cable entry |
| Product description | Tilting angle adjustable in 7.2° increments via clamping lever and may be limited to +100°/–15° using the stop screw supplied loose. |
| Material | Tilting adaptor: Sheet steel, spray-finishedConcertina section: Plastic |
| Colour | Tilting adaptor: RAL 7035Concertina section: RAL 7024 |
| Supply includes | Assembly partsConcertina section |
| Rotating/tilting | Yes |
| Tilt angle note | Adjustable in 7.2° increments via clamping lever and may be limited to +100°/-15° using the stop screw supplied loose |
| Packs of | 1 pc(s). |
| Net weight | 0.86 kg |
| Gross weight | 0.871 kg |
| PCF per pack (cradle-to-gate) | 3 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177684454 |
| ETIM 9 | EC000882 |
| ECLASS 8.0 | 27400556 |
| Product description | CP Tilting adaptor +100°/-60°, CP 60/120, for support arm connection 120 x 65 mm |
