Rittal

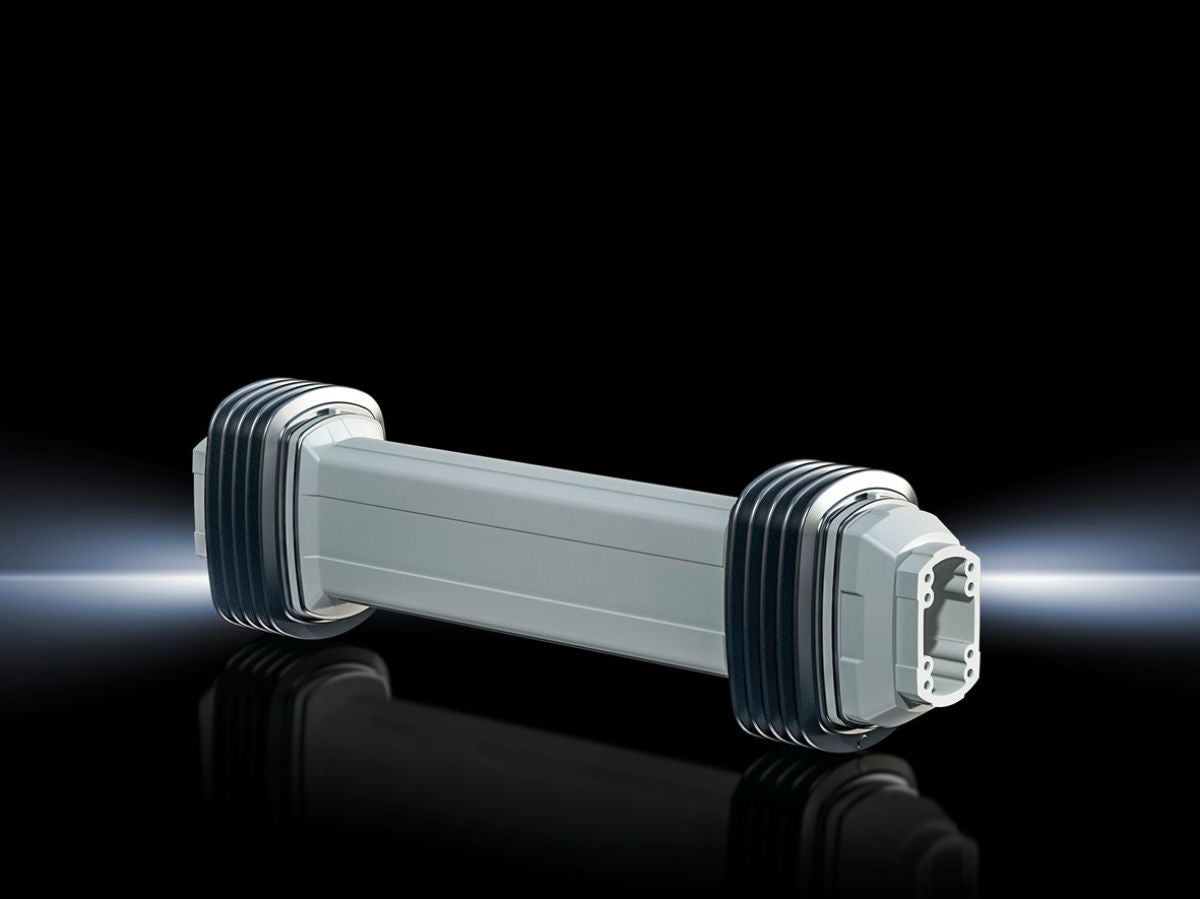

Rittal CP 6212.120, Support section, height-adjustable for support arm systems
Rittal CP 6212.120, Support section, height-adjustable for support arm systems
Regular price
€1.346,78
Regular price
Sale price
€1.346,78
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:CP 6212.120
The new height-adjustable support section ensures that you always have a good view of the key parameters in human/machine interaction. The system can be fitted directly to the components in the CP 120 support arm system without any further adaptation on the wall side, and on the enclosure side on support arm system CP 120.
| Article number: | CP 6212.120 |
| Product description | The new height-adjustable support section ensures that you always have a good view of the key parameters in human/machine interaction. The system can be fitted directly to the components in the CP 120 support arm system without any further adaptation on the wall side, and on the enclosure side on support arm system CP 60 or CP 120 depending on the model. |
| Benefits | Support arm holds securely in any position |
| Technical specifications | Cable tray: 43 x 21 mm (W x H), max. connector gland: 59 x 17 mm (W x H) |
| Applications | For tall and short operators |
| Material | Joint parts: Cast aluminiumConcertina section: Plastic |
| General colour | RAL 7035 |
| Colour | RAL 7035 |
| Supply includes | Assembly parts |
| Length | 790 mm |
| Connection options enclosure | CP 120 |
| Connection options wall / machine | CP 120 |
| Note | In combination with support support section, height adjustable observe: When using an intermediate hinge, the height-adjustable support section should always be inserted in the closest horizontal position to the enclosure. |
| Dimensions | Length: 790 mm |
| Load capacity | 10 kg...60 kg |
| Note on Model No. | Maximum cross-section for cable entry 17 x 59 mm |
| Packs of | 1 pc(s). |
| Net weight | 13.76 kg |
| Gross weight | 14.2 kg |
| Customs tariff number | 73269060 |
| EAN | 4028177924345 |
| ETIM 9 | EC000882 |
| ECLASS 8.0 | 27400556 |
| Product description | CP support section height-adjustable, CP120/120, for weight range 10-60 kg |
