Rittal

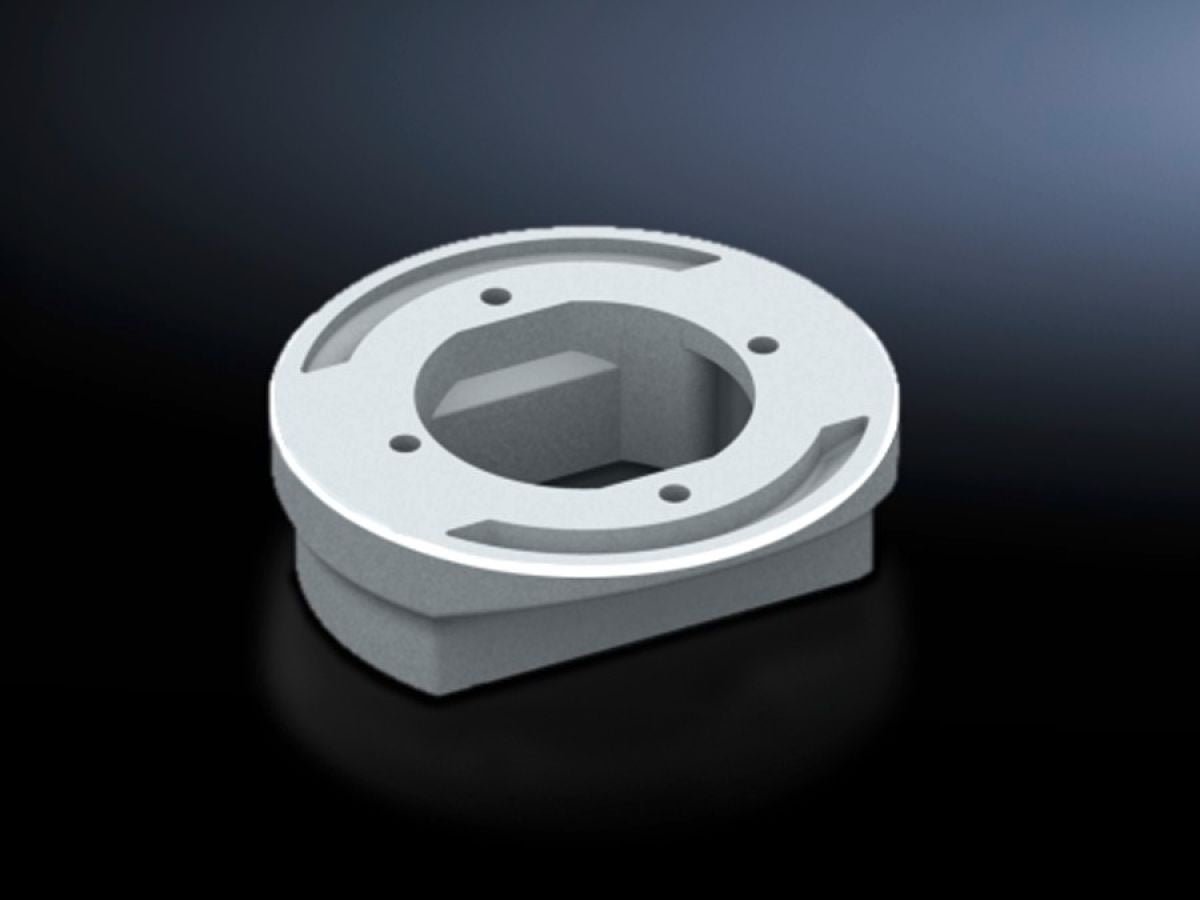

Rittal CP 6212.500, Adaptor support arm connection Ø 130 mm to 120 x 65 mm
Rittal CP 6212.500, Adaptor support arm connection Ø 130 mm to 120 x 65 mm
Regular price
€59,76
Regular price
Sale price
€59,76
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:CP 6212.500
For external mounting of operating housings with support arm cut-out 120 x 65 mm and connection console VESA 75/100
| Article number: | CP 6212.500 |
| Design | For external mounting of command panel with support arm cut-out 120 x 65 mm and connection console VESA 75/100 to:Coupling CP 120, 6212.300Attachment CP 120, 6212.320Angle coupling 90°, CP 120, 6212.380Pivot with jib (6206.850)Pivot for machine-integrated installation (6206.870) |
| Material | Cast aluminium |
| Colour | RAL 7035 |
| Supply includes | SealsAssembly parts |
| Rifid y/n | Yes |
| Dimensions | Height: 40 mm |
| Packs of | 1 pc(s). |
| Net weight | 0.5 kg |
| Gross weight | 0.552 kg |
| Customs tariff number | 76169990 |
| EAN | 4028177684218 |
| ETIM 9 | EC000882 |
| ECLASS 8.0 | 27400556 |
| Product description | CP Adaptor CP 120/60, from support arm connection Ø 130 mm to 120 x 65 mm |
