Rittal

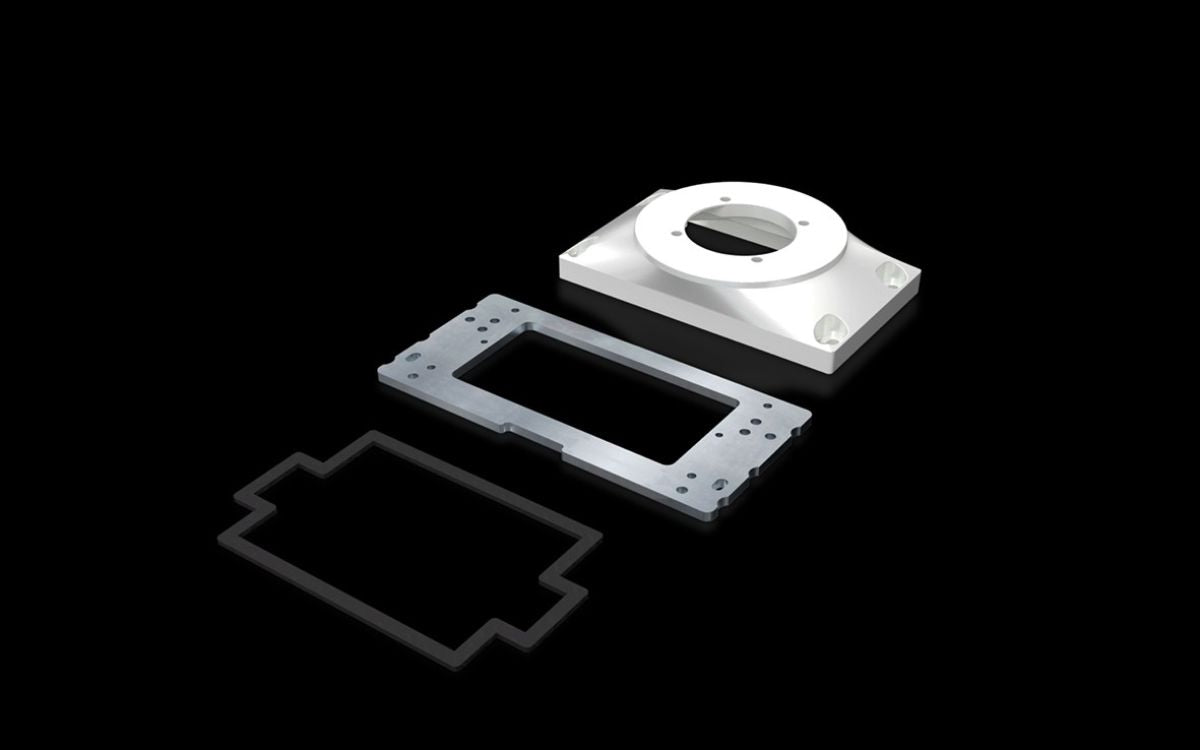

Rittal CP 6212.540, Connection plate with reinforcement plate
Rittal CP 6212.540, Connection plate with reinforcement plate
Regular price
€101,17
Regular price
Sale price
€101,17
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:CP 6212.540
For easy location of the command panel onto the support arm or pedestal.
| Article number: | CP 6212.540 |
| Design | For mountingComfort Panel from a front panel width of 247 mm and installation depth of 152 mmOptipanel from a front panel width of 220 mm and installation depth of 150 mmSheet steel from 135 mm installation depthFor mounting on support arm system componentsAttachment CP 60/120 for support arm connection Ø 130 mm, 6206.320, 6212.320Coupling CP 60/120/180 for support arm connection Ø 130 mm, 6206.300, 6212.300, 6218.300Angle coupling 90°, system 60/120 for support arm connection Ø 130 mm, CP 6206.380, 6212.380Tilting adaptor 10°, system 60/120 for support arm connection Ø 130 mm, CP 6206.400Tilting adaptor ±45°, system 60/120 for support arm connection Ø 130 mm, CP 6206.420 |
| Benefits | For easy location of the command panel onto the support arm or pedestal |
| Material | Connection plate: Cast aluminiumReinforcement plate: Sheet steel, 6 mm |
| Colour | RAL 7035 |
| Supply includes | Reinforcement plateSealsAssembly parts |
| Packs of | 1 pc(s). |
| Net weight | 1.3 kg |
| Gross weight | 1.604 kg |
| Customs tariff number | 76169990 |
| EAN | 4028177684232 |
| ETIM 9 | EC000882 |
| ECLASS 8.0 | 27400556 |
| Product description | CP Connection plates, with reinforced plate CP 120/60, for support arm connection Ø 130 mm |
