Rittal

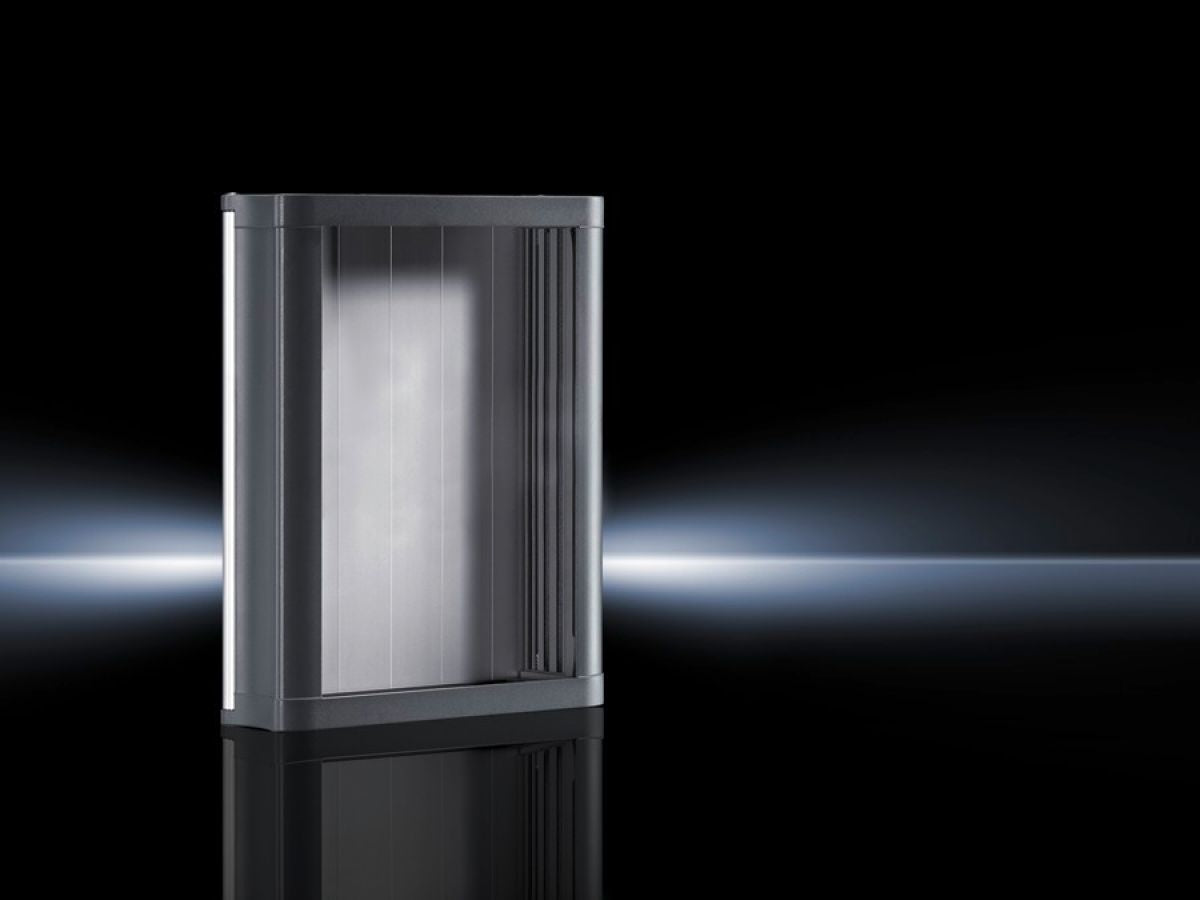

Rittal CP 6340.300, Compact Panel
Rittal CP 6340.300, Compact Panel
Regular price
€313,08
Regular price
Sale price
€313,08
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:CP 6340.300
Command panel in an elegant design made from extruded aluminium sections. Ideal for small operator panels. Versatile interior installation
| Article number: | CP 6340.300 |
| Design | With support arm connection 90 x 71 mm for CP 40, steel |
| Product description | For small operating units built into front panels. The front panel is inserted from the rear and secured with screw clamps. Special front panels with a material thickness of between 2 and 6 mm are possible. Rear panel optionally hinged on the left or right. Roof tray with cut-out and reinforcement for support arm system CP 40 steel. |
| Material | Roof tray, base tray: Die-cast zincRear panel: AluminiumSide parts: Extruded aluminium sectionScrew cover: Plastic |
| Surface finish | Roof tray, base tray, side parts: Powder-coatedRear panel: natural anodised |
| Colour | RAL 7024 |
| Supply includes | Roof trayBase trayRear panelSide partsScrew coverSeal and screw clamp |
| Dimensions | Width: 315 mmHeight: 238 mmDepth: 87 mm |
| IP protection category to IEC 60 529 | IP 65 |
| Protection category NEMA | NEMA 12 |
| To fit front panel width | 252 mm |
| To fit front panel height | 200 mm |
| Design | Servicing access from the rear |
| Basic material | Aluminium |
| Packs of | 1 pc(s). |
| Net weight | 3.028 kg |
| Gross weight | 4.12 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177382718 |
| ETIM 9 | EC002504 |
| ECLASS 8.0 | 27180505 |
| Product description | CP Compact Panel, WHD: 315x238x87 mm, aluminum, for front panel WH 252x200 mm |
