Rittal

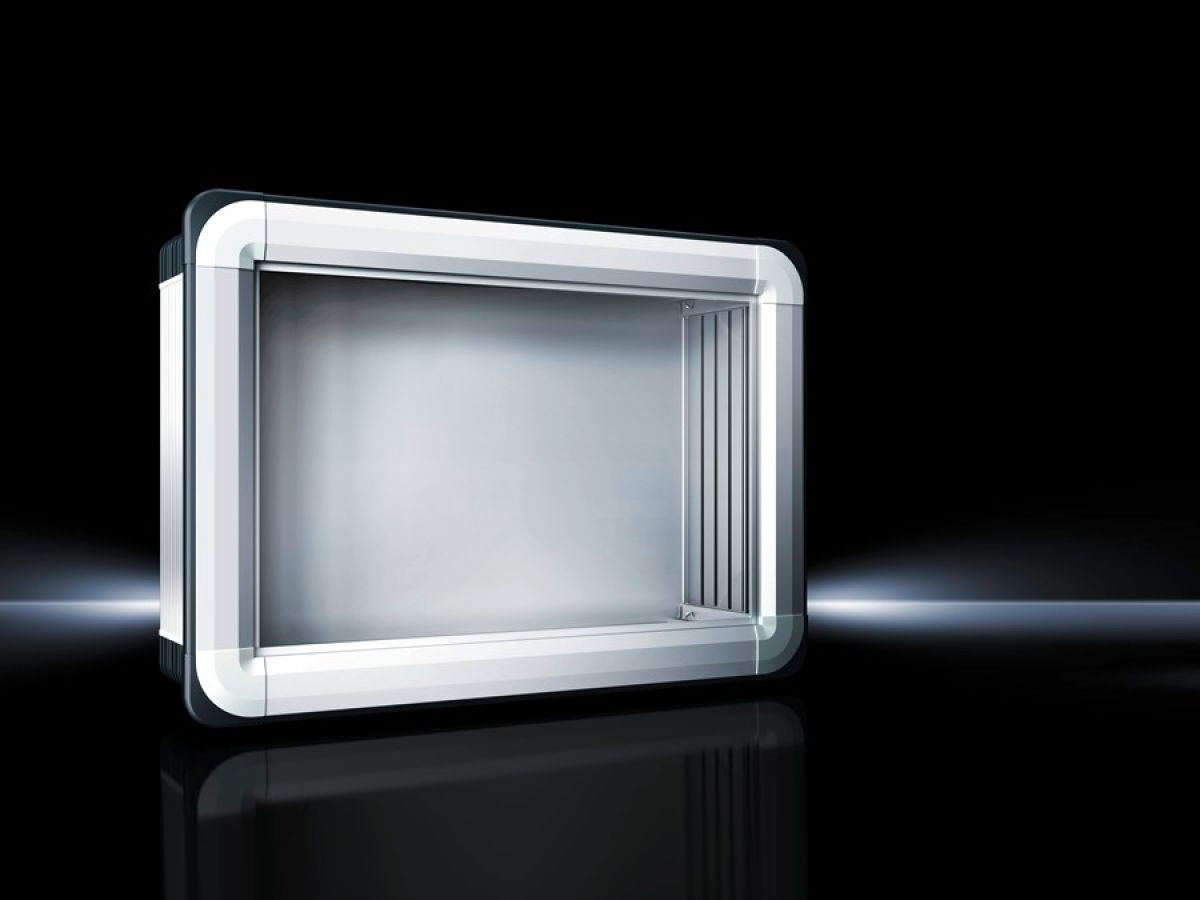

Rittal CP 6372.562, Comfort Panel
Rittal CP 6372.562, Comfort Panel
Regular price
€609,13
Regular price
Sale price
€609,13
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:CP 6372.562
Aluminium enclosure, high thermal conductivity for optimum passive heat dissipation. Low weight coupled with high stability. Protection category IP 65 to IEC 60 529.
| Article number: | CP 6372.562 |
| Design | Support arm connection Ø 130 mm |
| Benefits | Aluminium enclosure, high thermal conductivity for optimum passive heat dissipation. |
| Material | Enclosure: Extruded aluminium sectionCorner pieces: Die-cast zincCorner protectors: Plastic |
| General colour | Natural anodised |
| Colour | Enclosure: Natural anodisedCorner pieces: RAL 7035Corner protectors: similar to RAL 7024 |
| Supply includes | Enclosure with cut-out for support arm connection3 mm double-bit lock insert may be exchanged for 41 mm lock inserts, plastic handles and T handles, type CSeals and assembly parts for front panelsHinged rear panel, hinging on the longest side |
| Dimensions | Width: 628.5 mmHeight: 708.5 mmDepth: 170 mm |
| Installation depth | 152 mm |
| IP protection category to IEC 60 529 | IP 65 |
| Protection category NEMA | NEMA 12 |
| To fit front panel width | 520 mm |
| To fit front panel height | 600 mm |
| Design | Servicing access from the rear |
| Note | The support arm connection may be swapped over by rotating the enclosure |
| Basic material | Aluminium |
| Lock | Lock version: CamNumber of locks: 3Lock insert: 3 mm double-bit |
| Packs of | 1 pc(s). |
| Net weight | 13.5 kg |
| Gross weight | 20.32 kg |
| EAN | 4028177663138 |
| ETIM 9 | EC002504 |
| ECLASS 8.0 | 27180505 |
| Product description | CP Compact Panel, for front panel BH 520x600 mm, installation depth 152 mm, Extruded aluminum section, Support arm connection Ø 130 mm, Hinged rear panel with cam |
