Rittal

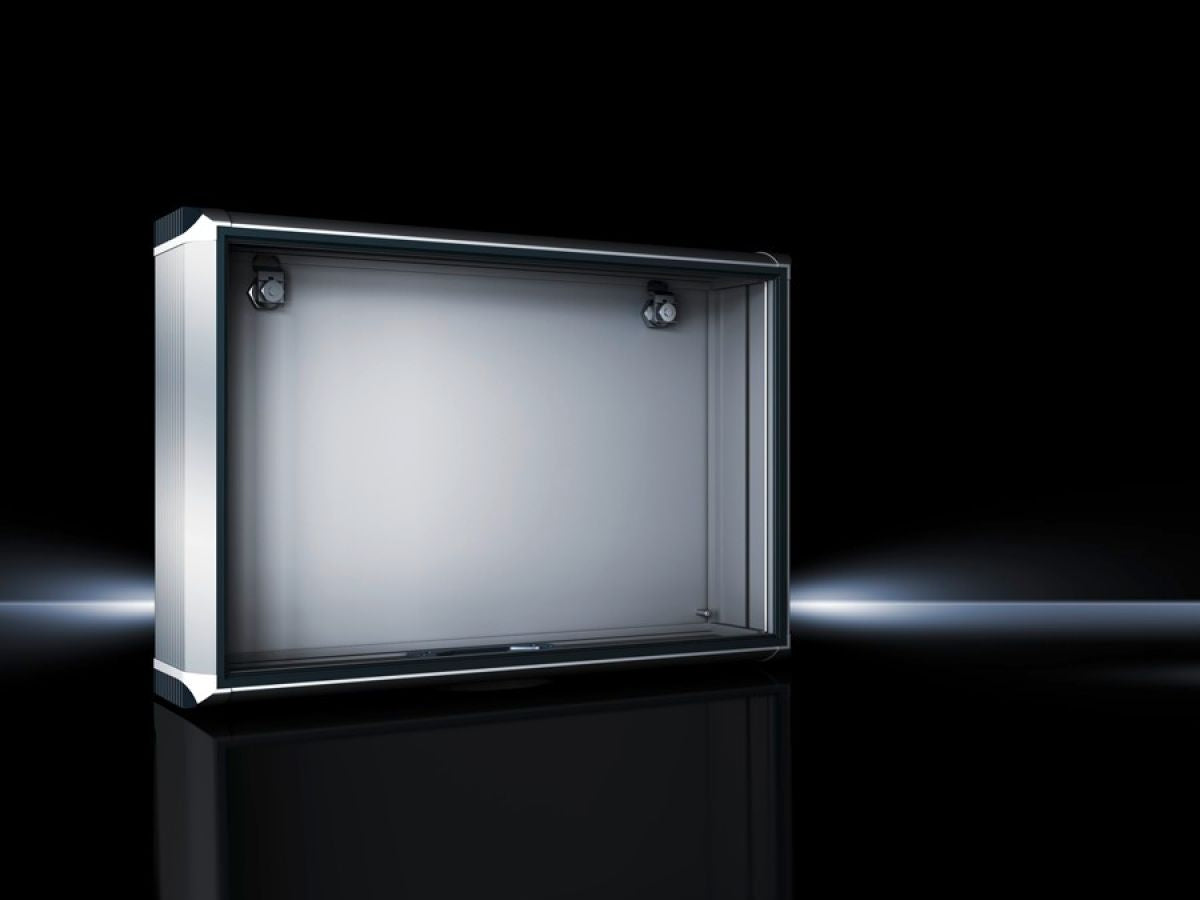

Rittal CP 6380.400, Optipanel
Rittal CP 6380.400, Optipanel
Regular price
€418,23
Regular price
Sale price
€418,23
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:CP 6380.400
Aluminium enclosure, high thermal conductivity for optimum passive heat dissipation. For smaller panels and control solutions. Super-slimline design, needs hardly more space than the installed equipment itself.
| Article number: | CP 6380.400 |
| Design | Support arm connection, rectangular 120 x 65 mm |
| Benefits | Aluminium enclosure, high thermal conductivity for optimum passive heat dissipation. |
| Material | Enclosure: Extruded aluminium sectionCorner pieces: Die-cast zincCorner protectors: Plastic |
| General colour | Natural anodised |
| Colour | Enclosure: Natural anodisedCorner pieces: RAL 7035Corner protectors: similar to RAL 7024 |
| Supply includes | Enclosure with hinged rear panelSealsSeals and assembly parts for front panels |
| Dimensions | Width: 564 mmHeight: 444 mmDepth: 110 mm |
| Installation depth | 100 mm |
| IP protection category to IEC 60 529 | IP 65 |
| To fit front panel width | 520 mm |
| To fit front panel height | 400 mm |
| Design | Servicing access from the rear |
| Note | The support arm connection may be swapped over by rotating the enclosure |
| Basic material | Aluminium |
| Lock | Lock version: CamNumber of locks: 2Lock insert: 3 mm double-bit |
| Packs of | 1 pc(s). |
| Net weight | 7.755 kg |
| Gross weight | 8.163 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177663152 |
| ETIM 9 | EC002504 |
| ECLASS 8.0 | 27180505 |
| Product description | CP Optipanel, for front panel BH 520x400 mm, installation depth 100 mm, Extruded aluminum section, Support arm connection 120x65 mm |
