Rittal CP 6380.510, Optipanel
Rittal CP 6380.510, Optipanel
Regular price
€522,78
Regular price
Sale price
€522,78
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:CP 6380.510

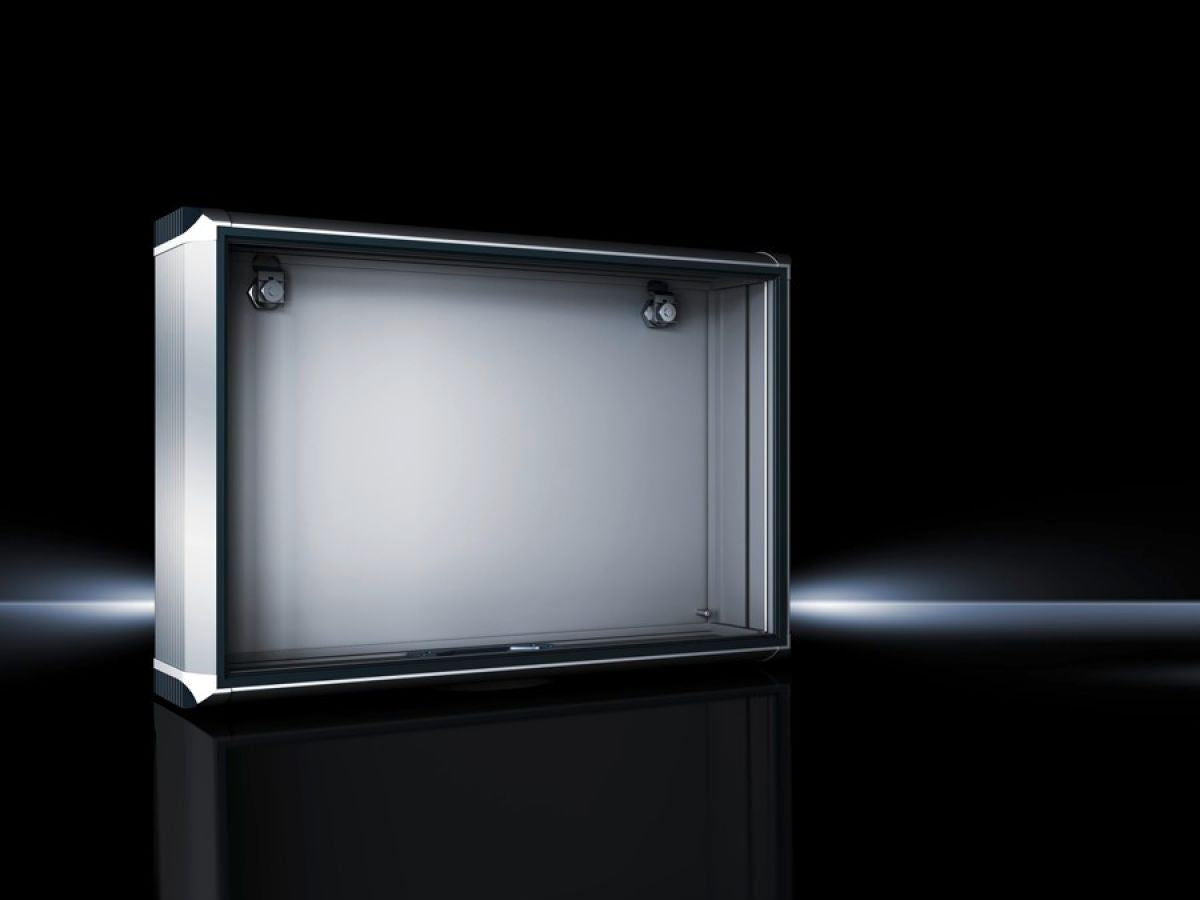

Aluminium enclosure, high thermal conductivity for optimum passive heat dissipation. For smaller panels and control solutions. Super-slimline design, needs hardly more space than the installed equipment itself.
| Article number: | CP 6380.510 |
| Design | Support arm connection Ø 130 mm |
| Benefits | Aluminium enclosure, high thermal conductivity for optimum passive heat dissipation. |
| Material | Enclosure: Extruded aluminium sectionCorner pieces: Die-cast zincCorner protectors: Plastic |
| General colour | Natural anodised |
| Colour | Enclosure: Natural anodisedCorner pieces: RAL 7035Corner protectors: similar to RAL 7024 |
| Supply includes | Enclosure with hinged rear panelSealsSeals and assembly parts for front panels |
| Installation depth | 150 mm |
| IP protection category to IEC 60 529 | IP 65 |
| To fit front panel width | 520 mm |
| To fit front panel height | 500 mm |
| Design | Servicing access from the rear |
| Note | The support arm connection may be swapped over by rotating the enclosure |
| Basic material | Aluminium |
| Lock | Lock version: CamNumber of locks: 2Lock insert: 3 mm double-bit |
| Packs of | 1 pc(s). |
| Net weight | 10.922 kg |
| Gross weight | 11.497 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177663183 |
| ETIM 9 | EC002504 |
| ECLASS 8.0 | 27180505 |
| Product description | CP Optipanel, for front panel BH 520x500 mm, installation depth 150 mm, Extruded aluminum section, Support arm connection Ø 130 mm |
