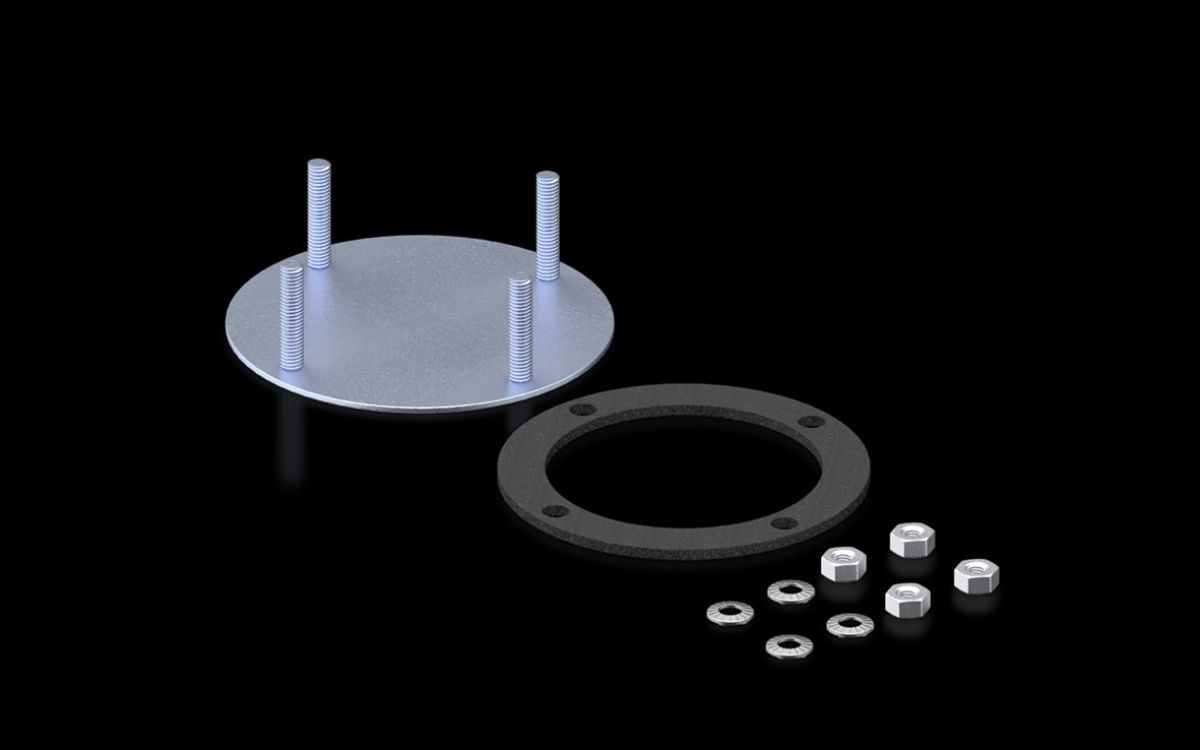

Rittal CP 6505.500, Cover plate for support arm connection
Rittal CP 6505.500, Cover plate for support arm connection
Regular price
€29,63
Regular price
Sale price
€29,63
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:CP 6505.500
Cover plates for round and rectangular support arm connections.
| Article number: | CP 6505.500 |
| Product description | For secure sealing of an unrequired support arm connection in the enclosure |
| Material | Sheet steel |
| Surface finish | Zinc plated, passivated |
| Supply includes | Seal and assembly parts |
| To fit support arm connection | Ø 130 mm |
| Note | If there are already 2 support arm cut-outs provided with the Comfort Panel, Optipanel and Compact Panel command panels, a cover plate is included with the supply of the enclosure. |
| Packs of | 1 pc(s). |
| Net weight | 0.13 kg |
| Gross weight | 0.133 kg |
| PCF per pack (cradle-to-gate) | 0.5 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177205895 |
| ETIM 9 | EC000456 |
| ECLASS 8.0 | 27189263 |
| Product description | CP Cover plate, for support arm connection Ø 130 mm |
