Rittal

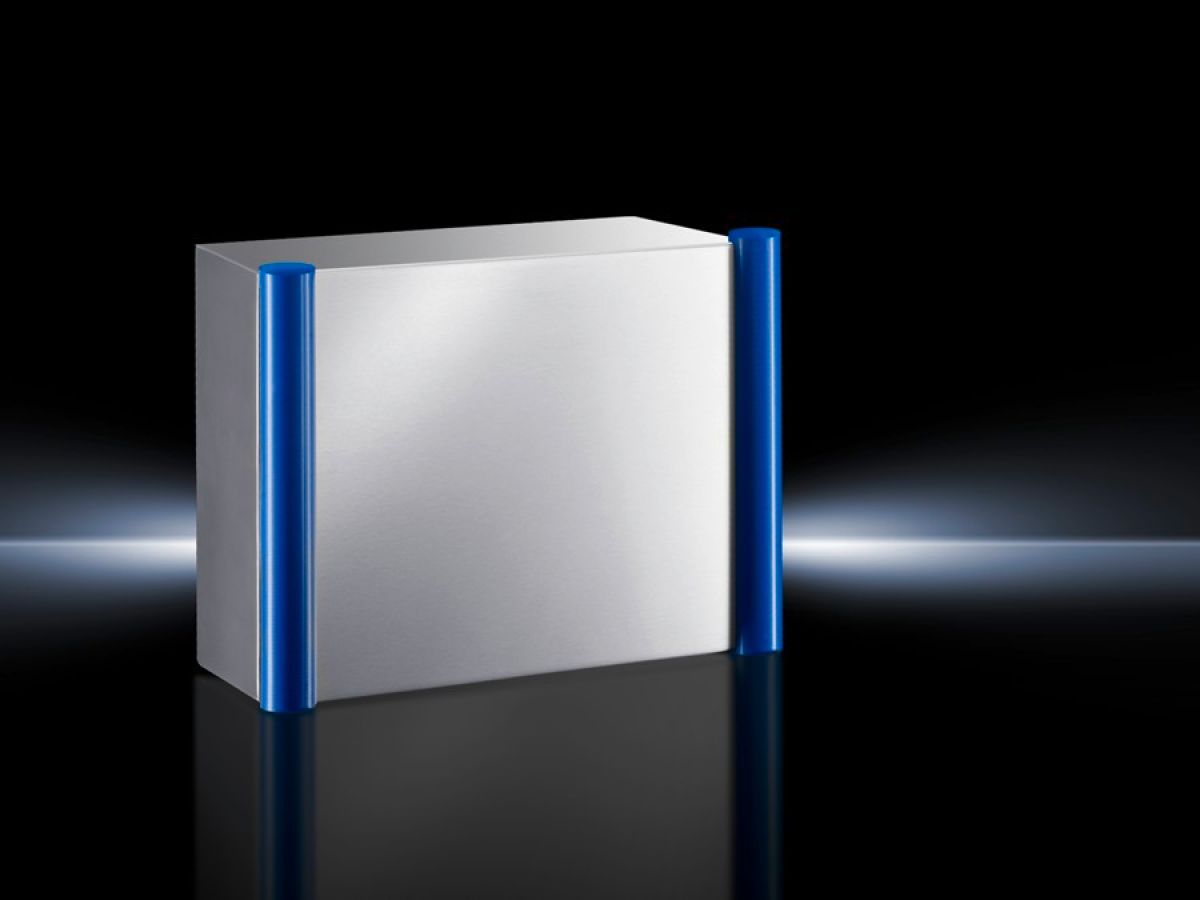

Rittal CP 6535.010, Command panel housing with door Stainless steel
Rittal CP 6535.010, Command panel housing with door Stainless steel
Regular price
€457,99
Regular price
Sale price
€457,99
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:CP 6535.010
Command panel housing with door made from stainless steel 1.4301 (AISI 304), with handle strips made from plastic approved for use with foodstuffs. May be combined with support arm system CP40, stainless steel.
| Article number: | CP 6535.010 |
| Design | With support arm connection CP 40, stainless steel |
| Material | Enclosure and door: Stainless steel 1.4301 (AISI 304)Handle strips: Plastic approved for use with foodstuffs, dyed blue |
| Surface finish | Brushed, grain 400 |
| General colour | Stainless steel |
| Colour | Handle strips: similar to RAL 5002 |
| Supply includes | Enclosure of all-round solid constructionCut-out and reinforcement for support arm system CP 40 stainless steelFastener with guide plateDoor with sealing frame and side handle stripsLock: 3 mm double-bit |
| Dimensions | Width: 300 mmHeight: 300 mmDepth: 150 mm |
| IP protection category to IEC 60 529 | IP 66 |
| Protection category NEMA | NEMA 12 |
| Note | The support arm connection and door hinge may be swapped over by rotating the enclosure |
| Basic material | Stainless steel 1.4301 (AISI 304) |
| Note on Model No. | Matching mounting panel 5050.432 with dispatch bag 5050.507 |
| Packs of | 1 pc(s). |
| Net weight | 5.985 kg |
| Gross weight | 6.3 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177220362 |
| ETIM 9 | EC002504 |
| ECLASS 8.0 | 27180505 |
| Product description | CP Command panel housing with door, WHD: 300x300x150 mm, Stainless steel 1.4301 |
