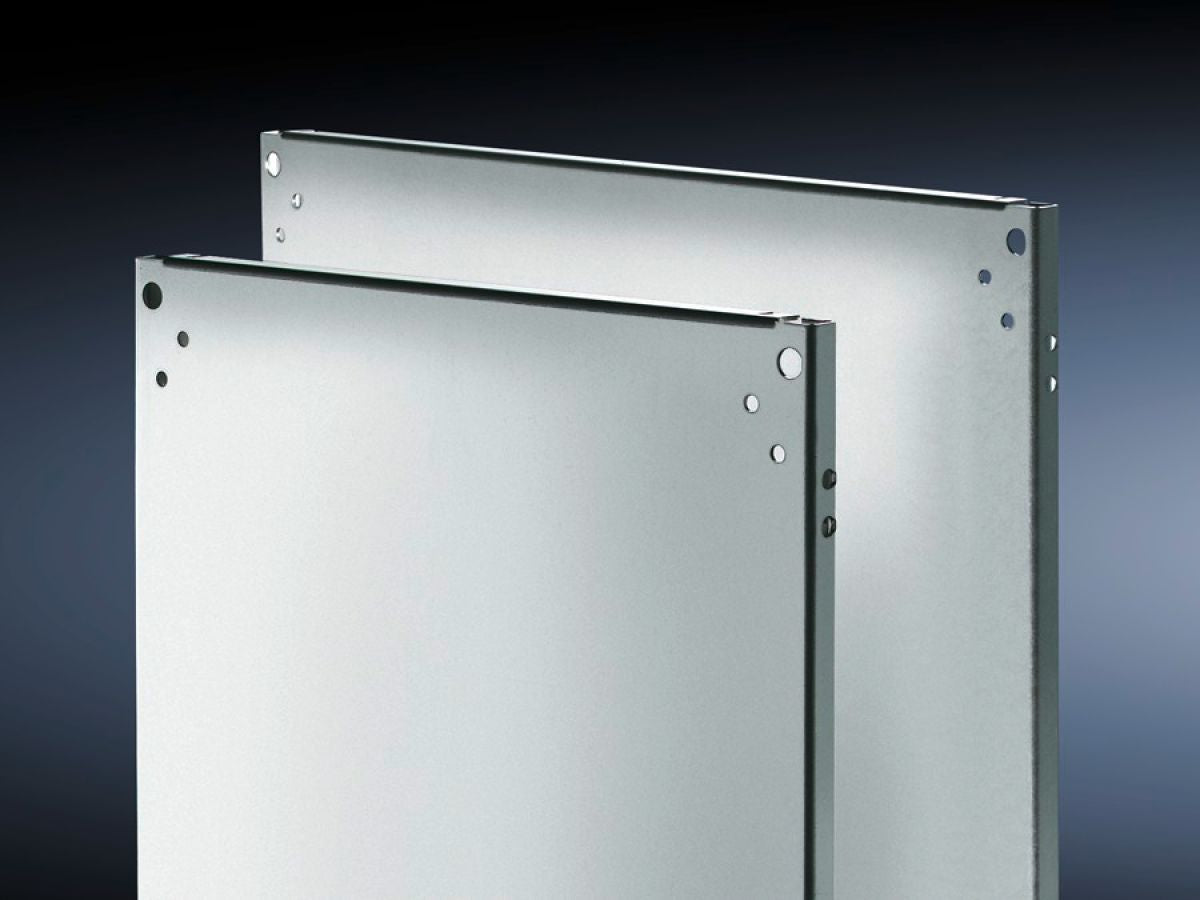

Rittal CS 9765.095, Mounting plate for CS New Basic enclosure
Rittal CS 9765.095, Mounting plate for CS New Basic enclosure
Regular price
€146,29
Regular price
Sale price
€146,29
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:CS 9765.095
For the configuration of mounting levels, depth-adjustable on a 25 mm pitch pattern.
| Article number: | CS 9765.095 |
| Product description | For the configuration of mounting levels. The mounting plates are depth-adjustable on a 25 mm pitch pattern. |
| Material | Aluminium, 3 mm |
| Supply includes | Assembly parts |
| Note | For an enclosure width of 1200 mm, partial installation with one or two 600 mm wide mounting plates is possible. |
| Dimensions | Width: 699 mmHeight: 1,096 mm |
| To fit | Enclosure type: CS basic enclosuresWidth: = 800 mmHeight: = 1,200 mm |
| Packs of | 1 pc(s). |
| Net weight | 8.888 kg |
| Gross weight | 9.408 kg |
| Customs tariff number | 76169990 |
| EAN | 4028177216877 |
| ETIM 9 | EC000213 |
| ECLASS 8.0 | 27409216 |
| Product description | CS Mounting plates for CS New Basic enclosure, WH: 800x1200 mm |
