Rittal

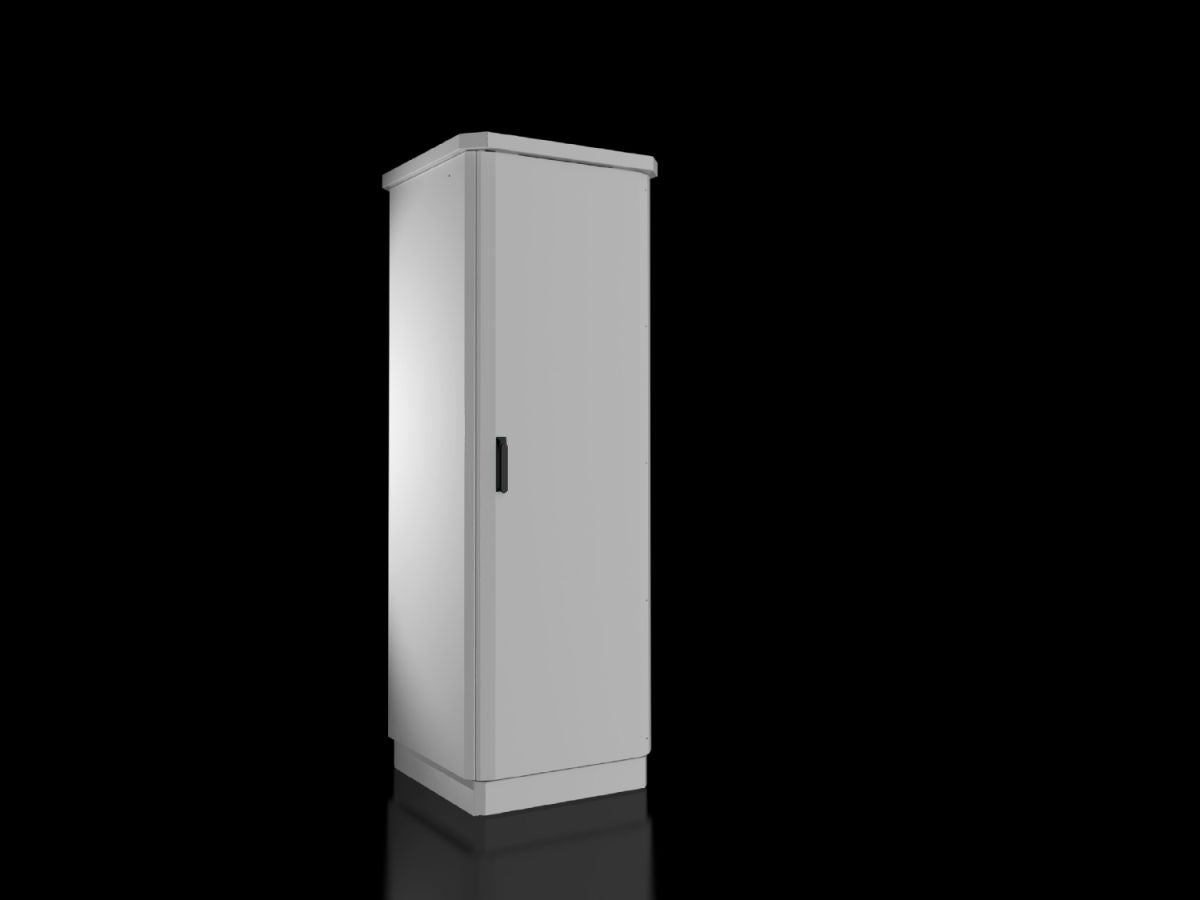

Rittal CS 9774.510, CS Toptec
Rittal CS 9774.510, CS Toptec
Regular price
€3.273,24
Regular price
Sale price
€3.273,24
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:CS 9774.510
Outdoor enclosure with 100 mm transport plinth and rain canopy with projections on all sides. Side panels, rear panel and door fully double-walled on the outside, the entire TS 8 frame is available for interior installation.
| Article number: | CS 9774.510 |
| Design | Without cut-out |
| Product description | Outdoor enclosure with 100 mm transport plinth and rain canopy with projections on all sides. Side panels, rear panel and door fully double-walled on the outside, the entire TS 8 frame is available for interior installation. |
| Material | Enclosure frame: Stainless steel 1.4301 (AISI 304)Enclosure panels and base/plinth trim: Aluminium, AlMg3Rain canopy: Aluminium |
| Surface finish | Powder-coatedUV-resistant pure polyester |
| Colour | RAL 7035 |
| Supply includes | Double-walled outdoor enclosure, fully preconfiguredEnclosure frame with 25 mm system punchings in the roof and base frame plus vertical sections with two mounting levelsFront door with door stay, swing lever handle and profile half-cylinder, lock BJ 20027Side panels left and rightRear panelRain canopyBase/plinth with screw-fastened gland plates and screw-fastened trim panels front and rear |
| Dimensions | Width: 600 mmHeight: 1,800 mmDepth: 600 mm |
| IP protection category to IEC 60 529 | IP 55 |
| IK Code | IK10 |
| Note | All enclosure panels are doubled and earthed (external wall onto internal wall) |
| Basic material | Aluminium |
| Packs of | 1 pc(s). |
| Net weight | 86 kg |
| Gross weight | 88 kg |
| EAN | 4028177963139 |
| ETIM 9 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | CS TopTec Enclosure WHD: 600x1800x600 mm closed |
