Rittal
Rittal CS 9783.610, Outdoor Basic enclosures
Rittal CS 9783.610, Outdoor Basic enclosures
Regular price
€1.107,15
Regular price
Sale price
€1.107,15
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:CS 9783.610

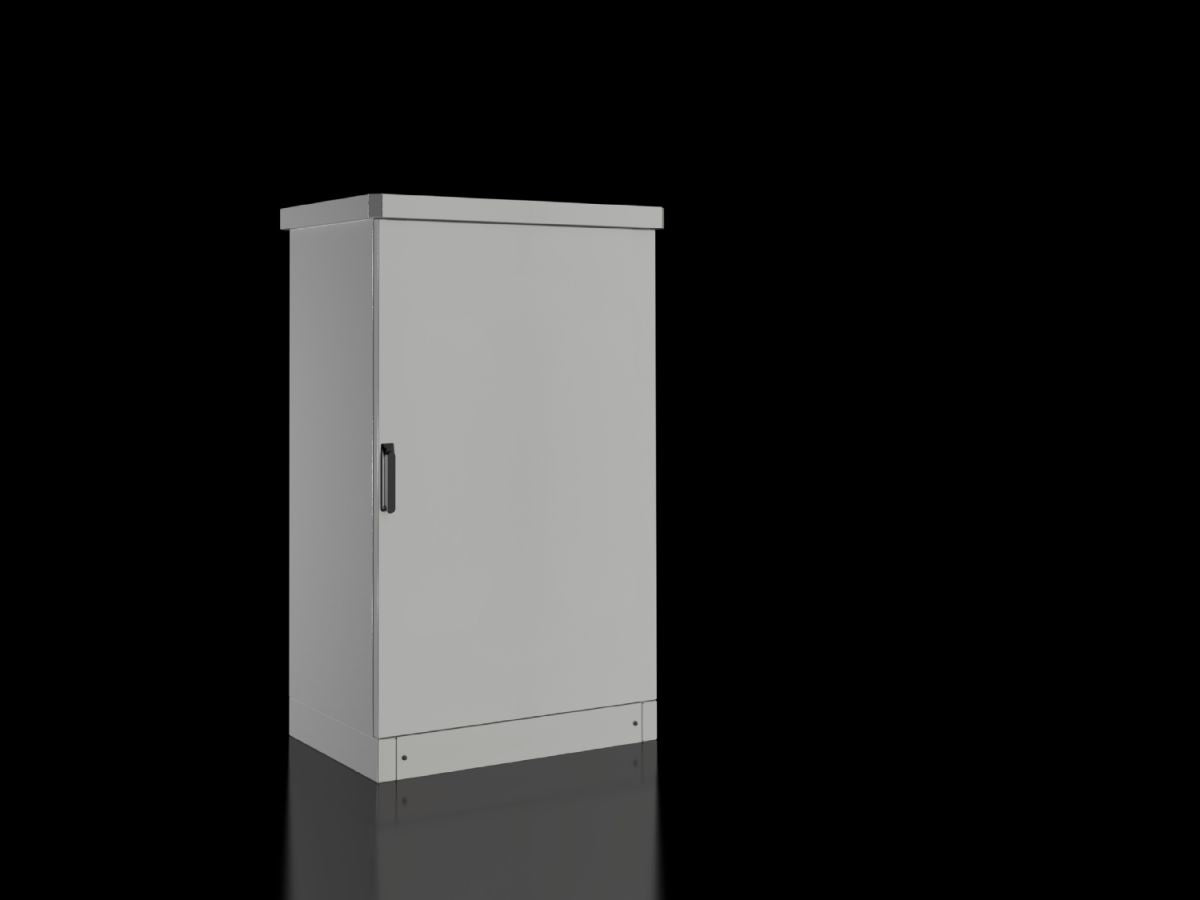

Single-walled enclosure systems, one-door and two-door. Ready to use in all applications with passive interior installation or minimal heat loss in the outdoor sector. Roof concept with all-round louvred grilles
| Article number: | CS 9783.610 |
| Product description | Outdoor enclosure with 100 mm transport plinth and rain canopy with projections on all sides. |
| Material | Aluminium AlMg3 |
| Surface finish | Powder-coatedUV-resistant pure polyester |
| Colour | RAL 7035 |
| Supply includes | Single-walled outdoor enclosure, fully preconfiguredBasic enclosure with gland plate, three-part25 mm system punchings in the roof, base, front and in the enclosure depthFront door(s) with door stay, swing lever handle and profile half-cylinder, lock BJ 20027Transport plinth with screw-fastened trim panels front and rearRain canopy |
| Dimensions | Width: 800 mmHeight: 1,200 mmDepth: 500 mm |
| Dimensions | Overall height: 1,355 mmRain canopy width: 850 mmRain canopy height: 55 mmRain canopy depth: 550 mmClearance width: 712 mmClearance height: 1,112 mmClearance depth: 449 mmHeight base/plinth: 100 mm |
| Number of doors | 1 |
| Type rating to UL 50E | Type 3R |
| IP protection category to IEC 60 529 | IP 55 |
| IK Code | IK10 |
| Basic material | Aluminium |
| Packs of | 1 pc(s). |
| Net weight | 34 kg |
| Gross weight | 36.15 kg |
| EAN | 4028177569171 |
| ETIM 9 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | Outdoor Basic enclosure, WHD: 800x1200x500 mm, aluminium, with 100 mm transport plinth and rain canopy, single door at front |
