Rittal

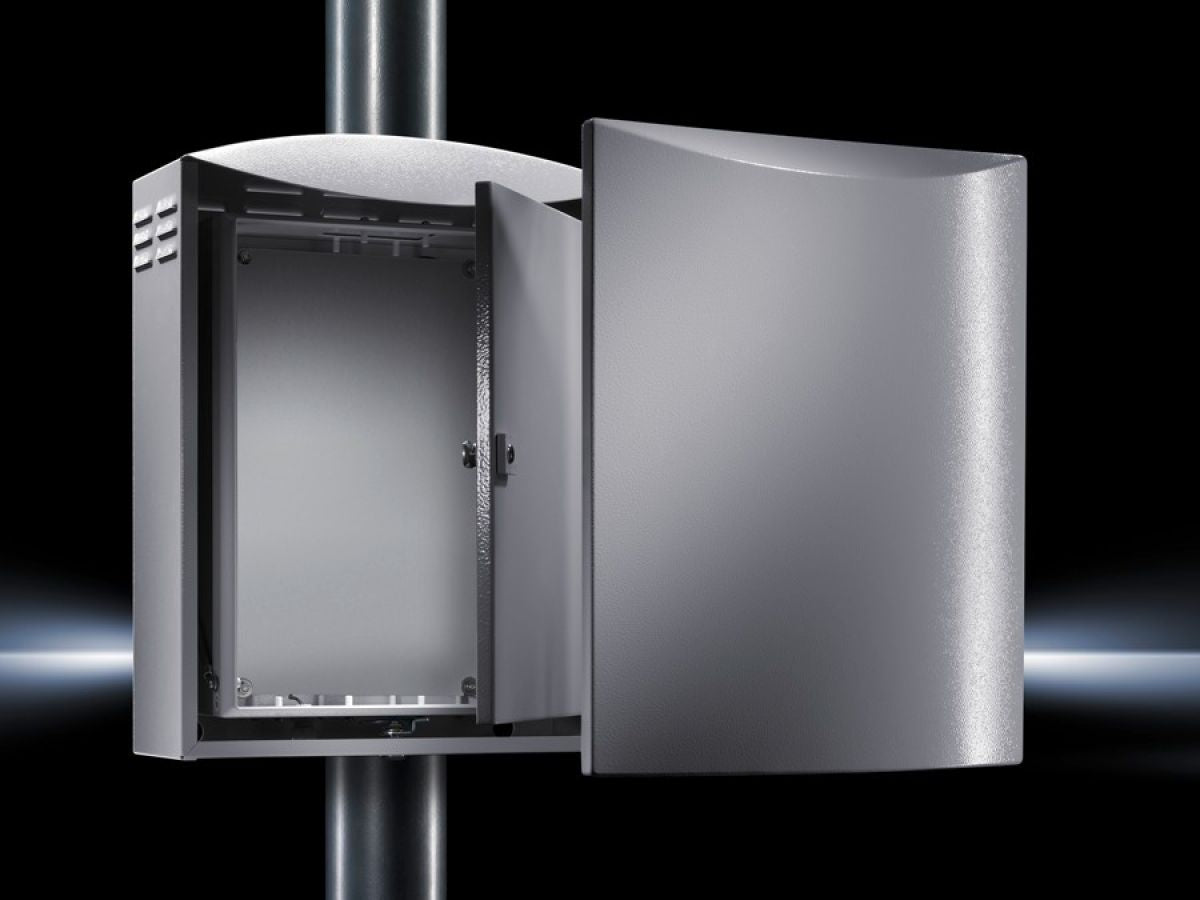

Rittal CS 9791.015, Outdoor wall-mounted enclosures
Rittal CS 9791.015, Outdoor wall-mounted enclosures
Regular price
€583,70
Regular price
Sale price
€583,70
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:CS 9791.015
Outdoor enclosures for wall or pole mounting. Enclosure-within-an-enclosure concept, outer enclosure with cut-out at the bottom and integrated louvres on the rear panel and side panels for ventilation.
| Article number: | CS 9791.015 |
| Product description | Outdoor enclosures for wall or pole mounting. Enclosure-within-an-enclosure concept, outer enclosure with cut-out in the bottom and integrated louvres on the rear panel and side panels for ventilation. |
| Material | Enclosure and mounting plate: Aluminium, AlMg3Door, inner enclosure: Stainless steel 1.4301 (AISI 304) |
| Surface finish | Enclosure: Powder-coated, UV-resistant pure polyester |
| Colour | RAL 7035 |
| Supply includes | Double-walled outdoor enclosure, fully preconfiguredInner enclosure with mounting plate, gland plate and security lockMounting bracket for enclosure internal thermostat or hygrostatOuter enclosure with designer cover and security lock 3524 E2 C rails on the rear panel |
| Dimensions | Width: 370 mmHeight: 522 mmDepth: 210 mm |
| Clearances | Clearance width: 280 mmClearance height: 380 mmClearance depth: 145 mm |
| Dimensions mounting plate (W x H) | 270 mm x 380 mm |
| Inner enclosure | Width: 300 mmHeight: 400 mmDepth: 170 mm |
| Lock | Lock version: CamNumber of locks: 1 |
| IP protection category to IEC 60 529 | IP 55 |
| Note | Extended delivery times. |
| Basic material | Aluminium |
| Packs of | 1 pc(s). |
| Net weight | 8.048 kg |
| Gross weight | 8.472 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177193697 |
| ETIM 9 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | CS Wall-mounted enclosure, WHD: 370x522x210 mm, aluminum, with mounting plate, Enclosure-within-an-enclosure concept |
