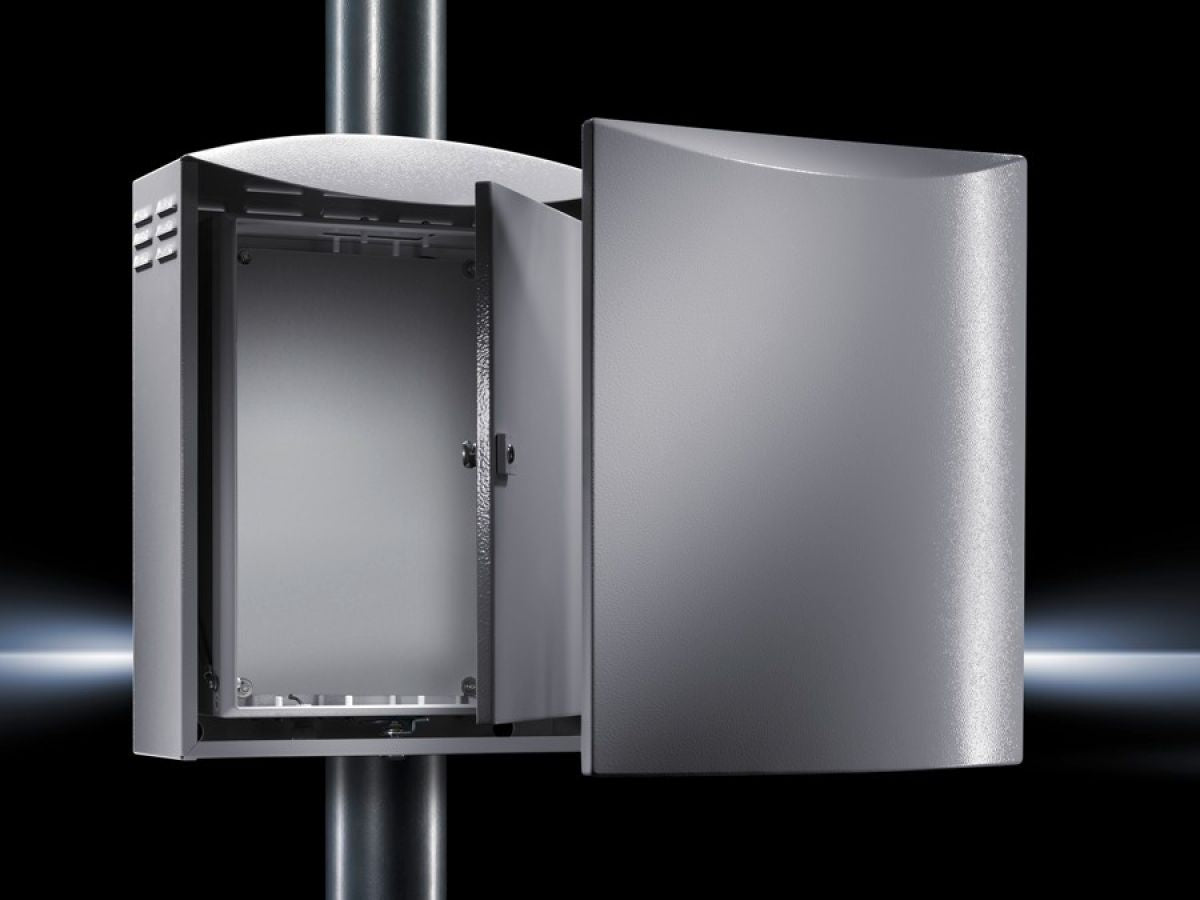

Rittal CS 9791.035, Outdoor wall-mounted enclosures
Rittal CS 9791.035, Outdoor wall-mounted enclosures
Regular price
€917,04
Regular price
Sale price
€917,04
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:CS 9791.035
Outdoor enclosures for wall or pole mounting. Enclosure-within-an-enclosure concept, outer enclosure with cut-out at the bottom and integrated louvres on the rear panel and side panels for ventilation.
| Article number: | CS 9791.035 |
| Product description | Outdoor enclosures for wall or pole mounting. Enclosure-within-an-enclosure concept, outer enclosure with cut-out in the bottom and integrated louvres on the rear panel and side panels for ventilation. |
| Material | Enclosure and mounting plate: Aluminium, AlMg3Door, inner enclosure: Stainless steel 1.4301 (AISI 304) |
| Surface finish | Enclosure: Powder-coated, UV-resistant pure polyester |
| Colour | RAL 7035 |
| Supply includes | Double-walled outdoor enclosure, fully preconfiguredInner enclosure with mounting plate, gland plate and security lockMounting bracket for enclosure internal thermostat or hygrostatOuter enclosure with designer cover and security lock 3524 E2 C rails on the rear panel |
| Dimensions | Width: 530 mmHeight: 700 mmDepth: 265 mm |
| Clearances | Clearance width: 440 mmClearance height: 545 mmClearance depth: 195 mm |
| Dimensions mounting plate (W x H) | 430 mm x 535 mm |
| Inner enclosure | Width: 460 mmHeight: 565 mmDepth: 220 mm |
| Lock | Lock version: CamNumber of locks: 2 |
| IP protection category to IEC 60 529 | IP 55 |
| Note | Extended delivery times. |
| Basic material | Aluminium |
| Packs of | 1 pc(s). |
| Net weight | 16.625 kg |
| Gross weight | 17.5 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177193710 |
| ETIM 9 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | CS Wall-mounted enclosure, WHD: 530x700x265 mm, aluminum, with mounting plate, Enclosure-within-an-enclosure concept |
