Rittal

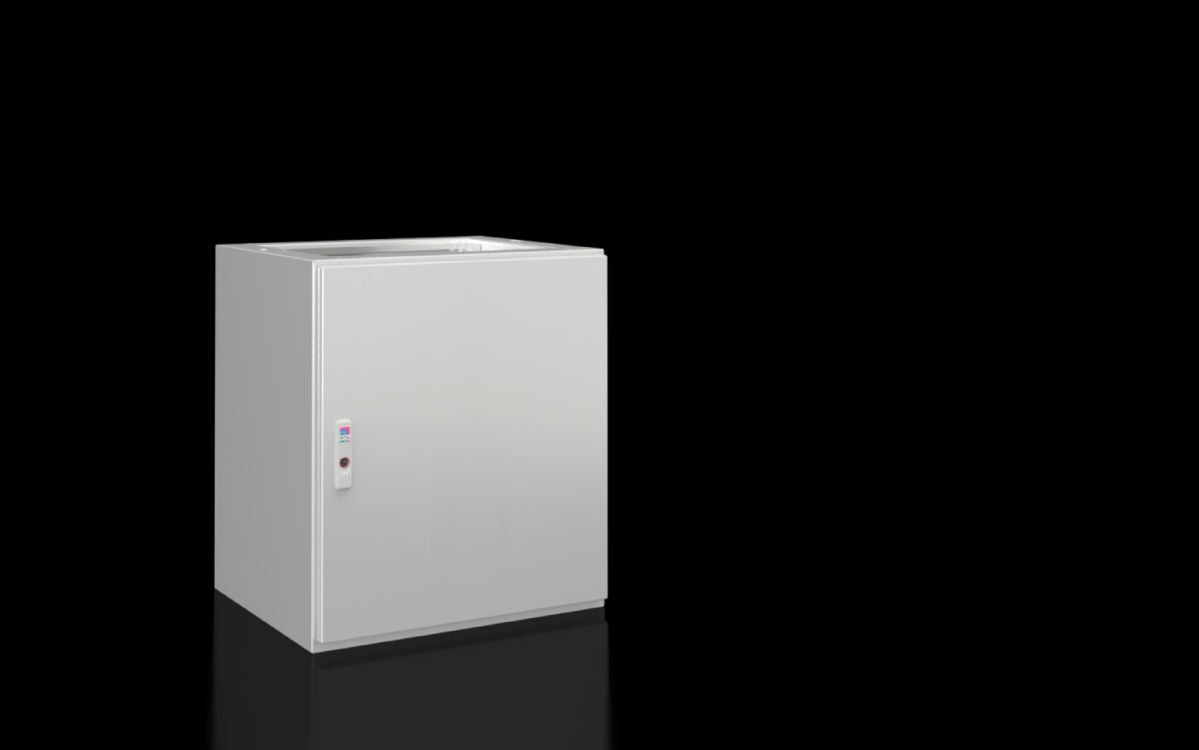

Rittal CX 6704.000, CX pedestal
Rittal CX 6704.000, CX pedestal
Regular price
€503,64
Regular price
Sale price
€503,64
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:CX 6704.000
CX pedestals, four widths and two different depths provide the basis for every console solution. The AX lock plate ensures a uniform appearance, and two-part gland plates are included with the supply for simple cable routing.
| Article number: | CX 6704.000 |
| Design | Pedestal |
| Material | Enclosure: Sheet steel 1.5 mmDoor: Sheet steel, 2.0 mm, all-round foamed-in PU sealMounting plate: Sheet steel, 2.5 mm |
| Surface finish | Enclosure and door: Dipcoat primed, powder-coated on the outside, textured paintMounting plate: Zinc-plated |
| Colour | RAL 7035 |
| Supply includes | Enclosure open at topDoor or double-door at front, with 3-point locking systemMounting plateGland platesLock: 3 mm double-bit |
| Dimensions | Width: 600 mmHeight: 675 mmDepth: 500 mm |
| Dimensions mounting plate (W x H) | 520 mm x 625 mm |
| Number of doors | 1 |
| Door opening angle | 130° |
| IK Code | IK10 |
| Note | A cover plate is required to seal the pedestal |
| IP protection category to IEC 60 529 | IP 55 |
| Protection category NEMA | NEMA 1 |
| Basic material | Sheet steel |
| Number of locks | 1 |
| Lock version | 3-point lock system |
| Lock insert | 3 mm double-bit |
| Lock | Lock version: 3-point lock systemNumber of locks: 1Lock insert: 3 mm double-bit |
| Packs of | 1 pc(s). |
| Net weight | 34 kg |
| Gross weight | 35.75 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177983762 |
| ETIM 9 | EC000784 |
| ETIM 8 | EC000784 |
| ECLASS 8.0 | 27180504 |
| Product description | CX console system, pedestal, WxHxD: 600x675x400 mm, sheet steel |
