Rittal

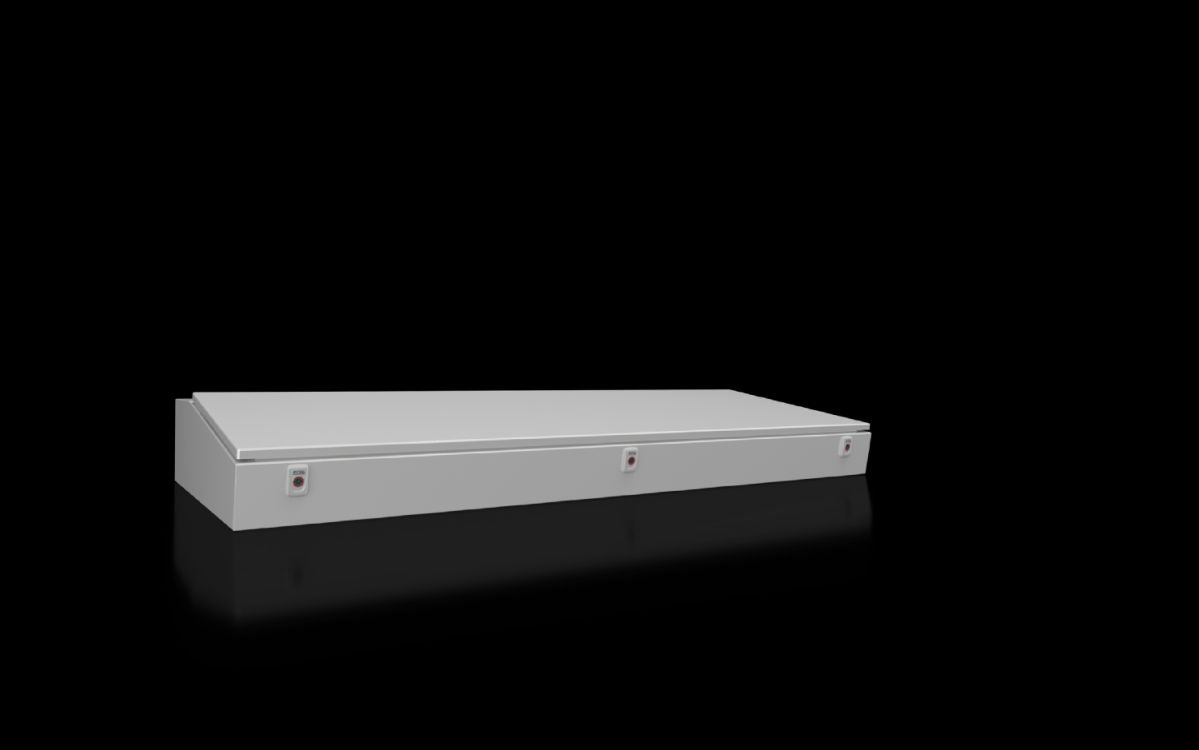

Rittal CX 6713.000, CX desk unit
Rittal CX 6713.000, CX desk unit
Regular price
€602,44
Regular price
Sale price
€602,44
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:CX 6713.000
Four widths form the bridge to two- or three-piece assembly of the CX console system.
| Article number: | CX 6713.000 |
| Design | Desk section |
| Material | Enclosure: Sheet steel 1.5 mmConsole lid: Sheet steel 2.0 mm, all-round foamed-in PU seal |
| Surface finish | Enclosure and cover: Dipcoat primed, powder-coated on the outside, textured paint |
| Colour | RAL 7035 |
| Supply includes | EnclosureCover hinged at rear, 2 stays with automatic locking. Automatic unlocking on the left, manual unlocking on the rightOpening for running cables into the enclosure baseLock: 3 mm double-bitEnclosureCover hinged at bottom, including cover retainerOpen base for individual cable entry |
| Dimensions | Width: 1,600 mmDepth: 745 mm |
| Height, front | 130 mm |
| Height rear | 200 mm |
| IK Code | IK10 |
| Note | A cover plate is required to seal the desk unit |
| IP protection category to IEC 60 529 | IP 55 |
| Protection category NEMA | NEMA 1 |
| Basic material | Sheet steel |
| Dimensions | Width: 1,600 mm |
| Number of locks | 3 |
| Lock version | Cam |
| Lock insert | 3 mm double-bit |
| Lock | Lock version: CamNumber of locks: 3Lock insert: 3 mm double-bit |
| Packs of | 1 pc(s). |
| Net weight | 46 kg |
| Gross weight | 47 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177983694 |
| ETIM 9 | EC000784 |
| ETIM 8 | EC000784 |
| ECLASS 8.0 | 27180504 |
| Product description | CX console system, desk unit, W: 1600 mm |
