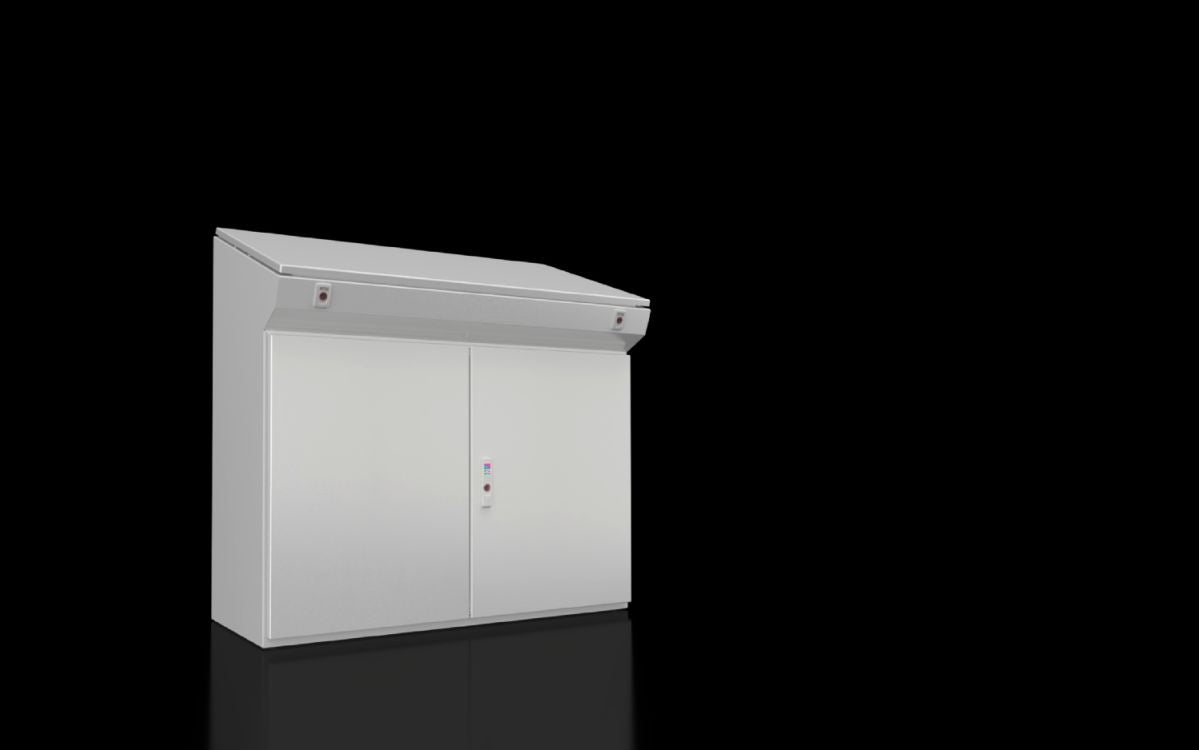

Rittal CX 6740.000, CX one-piece console
Rittal CX 6740.000, CX one-piece console
Regular price
€718,91
Regular price
Sale price
€718,91
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:CX 6740.000
One-piece console for operating and monitoring, with large mounting plate and a high protection category of IP 55, available in four different widths.
| Article number: | CX 6740.000 |
| Design | One-piece consoles |
| Material | Enclosure: Sheet steel 1.5 mmDoor and console cover: Sheet steel, 2.0 mm, all-round foamed-in PU sealMounting plate: Sheet steel, 2.5 mm |
| Surface finish | Enclosure, cover and door: Dipcoat-primed, powder-coated on the outside, textured paintMounting plate: Zinc-plated |
| Colour | RAL 7035 |
| Supply includes | Enclosure, solid back and sidesDoor or double-door at front, with 3-point locking systemMounting plateCover with cam locks, hinged at the rear, 2 stays with automatic latching. Automatic unlatching on the left, manual on the right.Gland plateLock: 3 mm double-bit |
| Dimensions | Width: 1,000 mmHeight: 970 mmDepth: 400 mm |
| Dimensions mounting plate (W x H) | 920 mm x 900 mm |
| Depth (top) | 495 mm |
| Depth (bottom) | 400 mm |
| Number of doors | 2 |
| IK Code | IK10 |
| IP protection category to IEC 60 529 | IP 55 |
| Protection category NEMA | NEMA 1 |
| Basic material | Sheet steel |
| Dimensions | Width: 1,000 mmHeight: 970 mmDepth (top): 495 mmDepth (bottom): 400 mm |
| Packs of | 1 pc(s). |
| Net weight | 72 kg |
| Gross weight | 75.25 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177983632 |
| ETIM 9 | EC000784 |
| ETIM 8 | EC000784 |
| ECLASS 8.0 | 27180504 |
| Product description | CX one-piece console, WxHxD: 1000x970x400 mm, sheet steel |
