Rittal

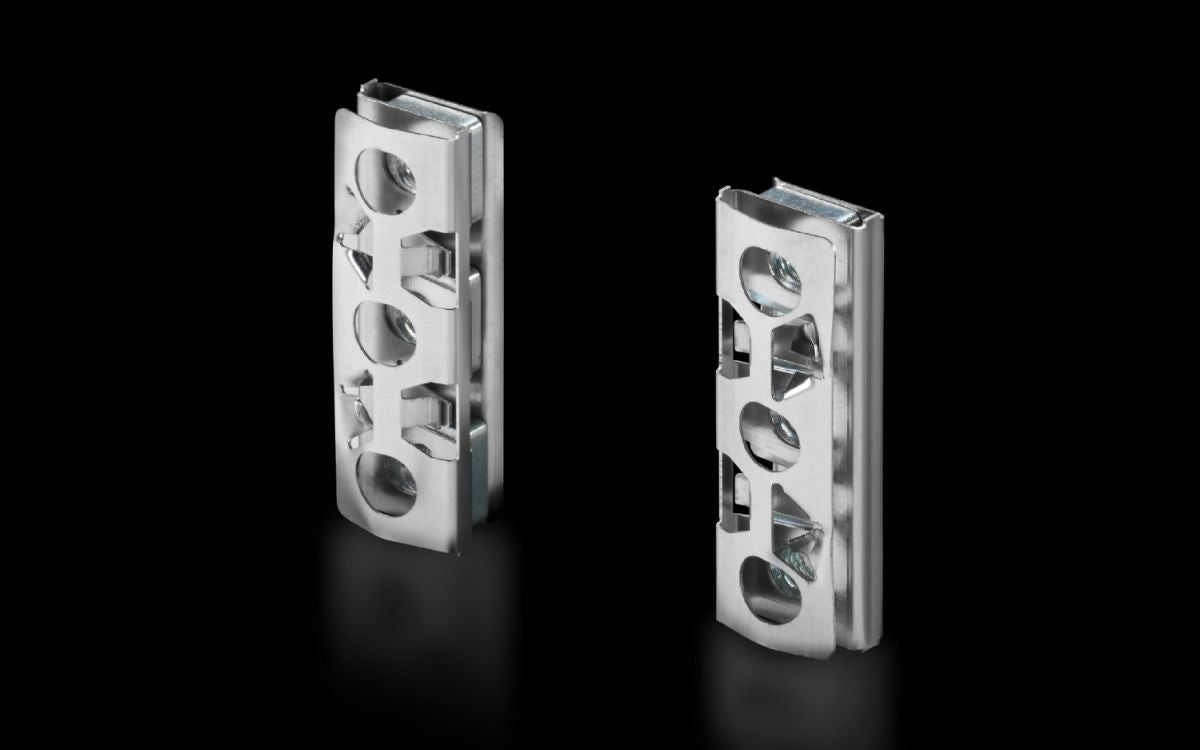

Rittal DK 2090.000, 482.6 mm (19") fastener, 1 U with contact
Rittal DK 2090.000, 482.6 mm (19") fastener, 1 U with contact
Regular price
€39,62
Regular price
Sale price
€39,62
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 2090.000
Assembly component for one 482.6 mm (19") mounting level
| Article number: | DK 2090.000 |
| Design | 1 U |
| Product description | For simple screw connection of installation components within the 482.6 mm (19") mounting level. Simply slide onto the mounting angle from the inside and lock home. |
| Benefits | Fast positioning and installation instead of using individual cage nuts |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Note | All enclosures in the Rittal range have already been tested within their tolerances for the use of 482.6 mm (19") fasteners. Suitability for use in enclosures from other manufacturers cannot be guaranteed. |
| Dimensions | Thread: M5 |
| Packs of | 24 pc(s). |
| Net weight | 0.24 kg |
| Gross weight | 0.36 kg |
| Customs tariff number | 73181900 |
| EAN | 4028177802230 |
| ETIM 9 | EC002358 |
| ETIM 8 | EC002358 |
| ECLASS 8.0 | 23110815 |
| Product description | DK 482.6 mm (19") fastener 1 U (M5), for 19" mounting angles and mounting frame |
