Rittal
Rittal DK 2094.400, Slot-in cable gland, 482.6 mm (19")
Rittal DK 2094.400, Slot-in cable gland, 482.6 mm (19")
Regular price
€38,05
Regular price
Sale price
€38,05
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 2094.400

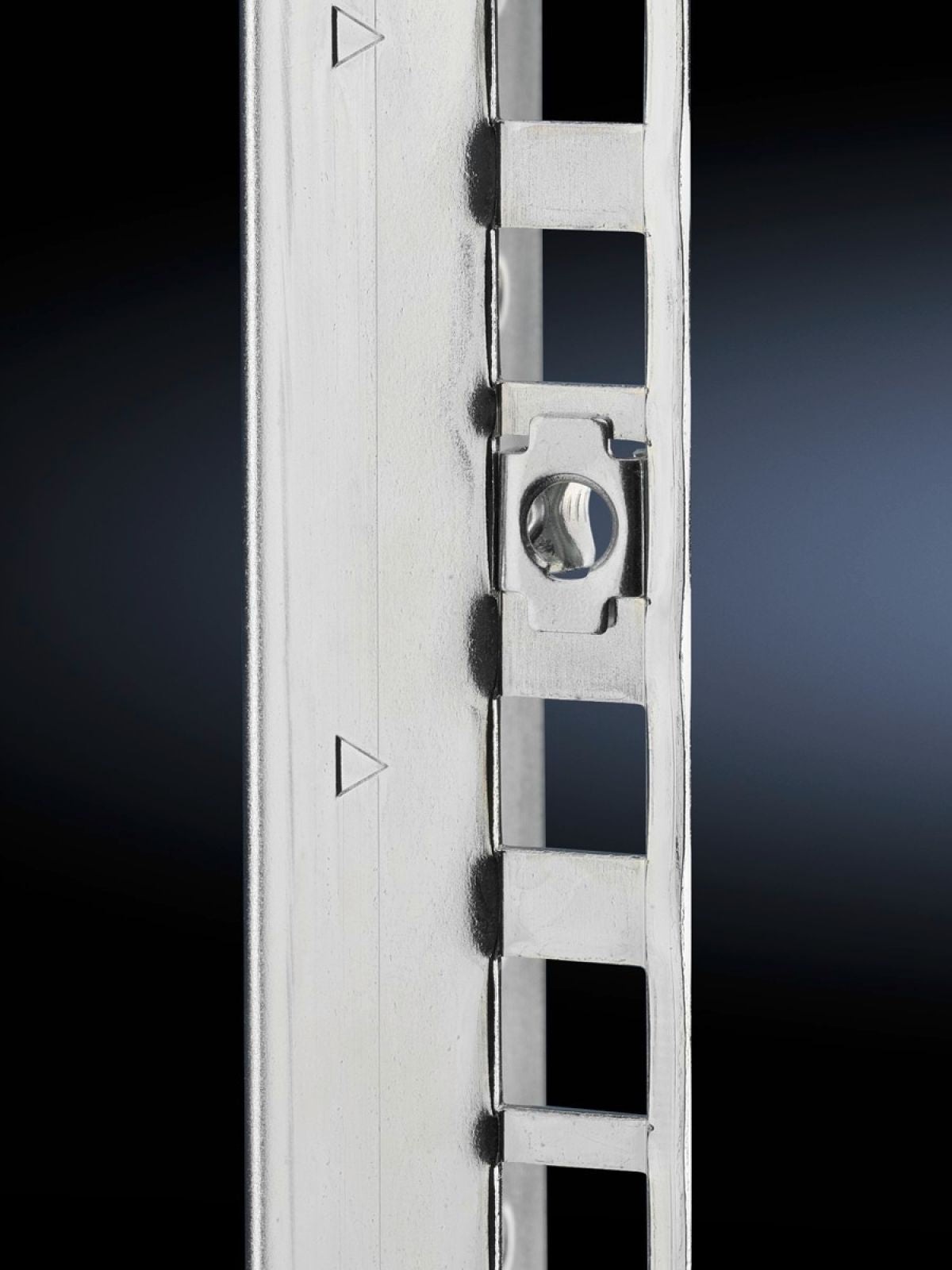

Consists of an expanding nut which is inserted into the square attachment hole at the front and then secured with the assembly screw.
| Article number: | DK 2094.400 |
| Design | Size of mounting hole 9.5 x 9.5 mm |
| Product description | The cage nut consists of an expanding nut which is simply inserted into the square attachment hole at the front and then secured with the assembly screw. When tightening the screw, the cage expands and thus secures the required components. Clamping range from 1.2 – 4.5 mm. Multi-tooth screw head, bit size T 30. |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | Pan-head screwsExpanding nutsPlastic washers |
| Dimensions | Thread: M6Thread length: 16 mm |
| Packs of | 50 pc(s). |
| Net weight | 0.3 kg |
| Gross weight | 0.38 kg |
| PCF per pack (cradle-to-gate) | 1.3 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73181900 |
| EAN | 4028177488847 |
| ETIM 9 | EC002358 |
| ETIM 8 | EC002358 |
| ECLASS 8.0 | 23110815 |
| Product description | DK Slot-in cable gland, 482.6 mm (19"), M6, L: 16 mm |
