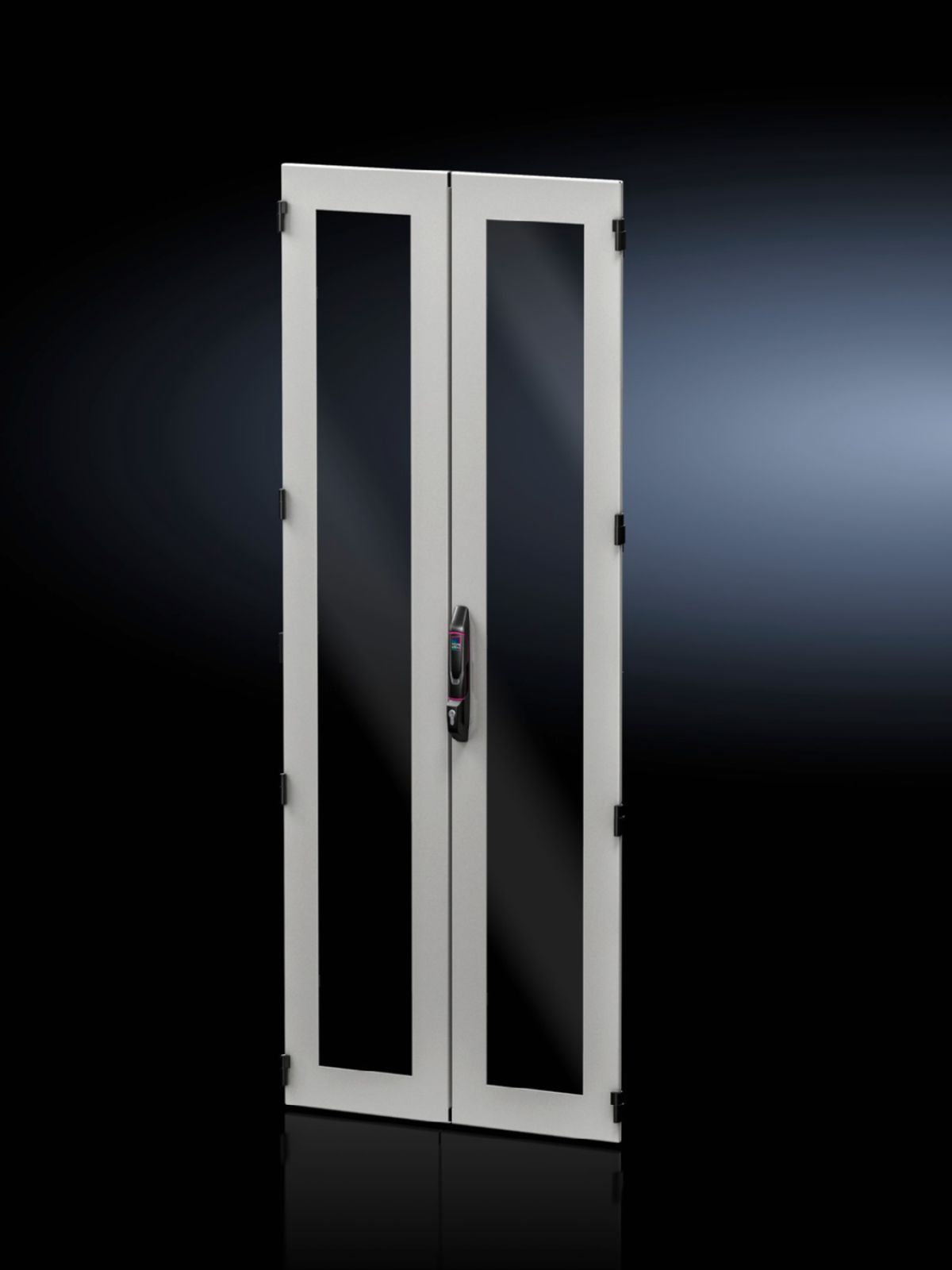

Rittal DK 5301.437, Sheet steel glazed door, vertically divided for VX IT
Rittal DK 5301.437, Sheet steel glazed door, vertically divided for VX IT
Regular price
€574,32
Regular price
Sale price
€574,32
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 5301.437
To replace existing doors. Thanks to the minimal rotation radius of the individual doors, the distance between individual bayed enclosure suites may be reduced.
| Article number: | DK 5301.437 |
| Product description | To replace existing doors. With underlaid viewing panel and 4-point locking rod. The divided design allows room-optimised siting of the enclosures coupled with the best possible access, thanks to a reduced distance between the individual bayed enclosure suites. |
| Material | Frame: Sheet steelViewing window: Single-pane safety glass, 3 mm |
| Surface finish | Powder-coated |
| Colour | Frame: RAL 7035Comfort handle VX, hinges: RAL 9005 |
| Supply includes | Door, vertically divided, with comfort handle VX for semi-cylinders with security lock 3524 E, right4 x 180° hinges, fitted on each half of the doorAssembly parts |
| Assembly instruction | For a door opening angle of 180° when baying, a 180° baying hinge is required |
| Note | Door opening angle for stand-alone siting: max. 240° |
| IP protection category to IEC 60 529 | IP 55 |
| To fit | Enclosure type: VX ITWidth: = 800 mmHeight: = 2,000 mm |
| Packs of | 1 pc(s). |
| Net weight | 32.7 kg |
| Gross weight | 33.2 kg |
| PCF per pack (cradle-to-gate) | 126.5 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| EAN | 4028177955035 |
| ETIM 9 | EC000747 |
| ECLASS 8.0 | 27182204 |
| Product description | Sheet steel glazed door, vertically divided for VX IT, to replace existing doors. With underlaid viewing panel and 4-point locking rod. For enclosure width 800 mm, for enclosure height 2,000 mm |
