Rittal

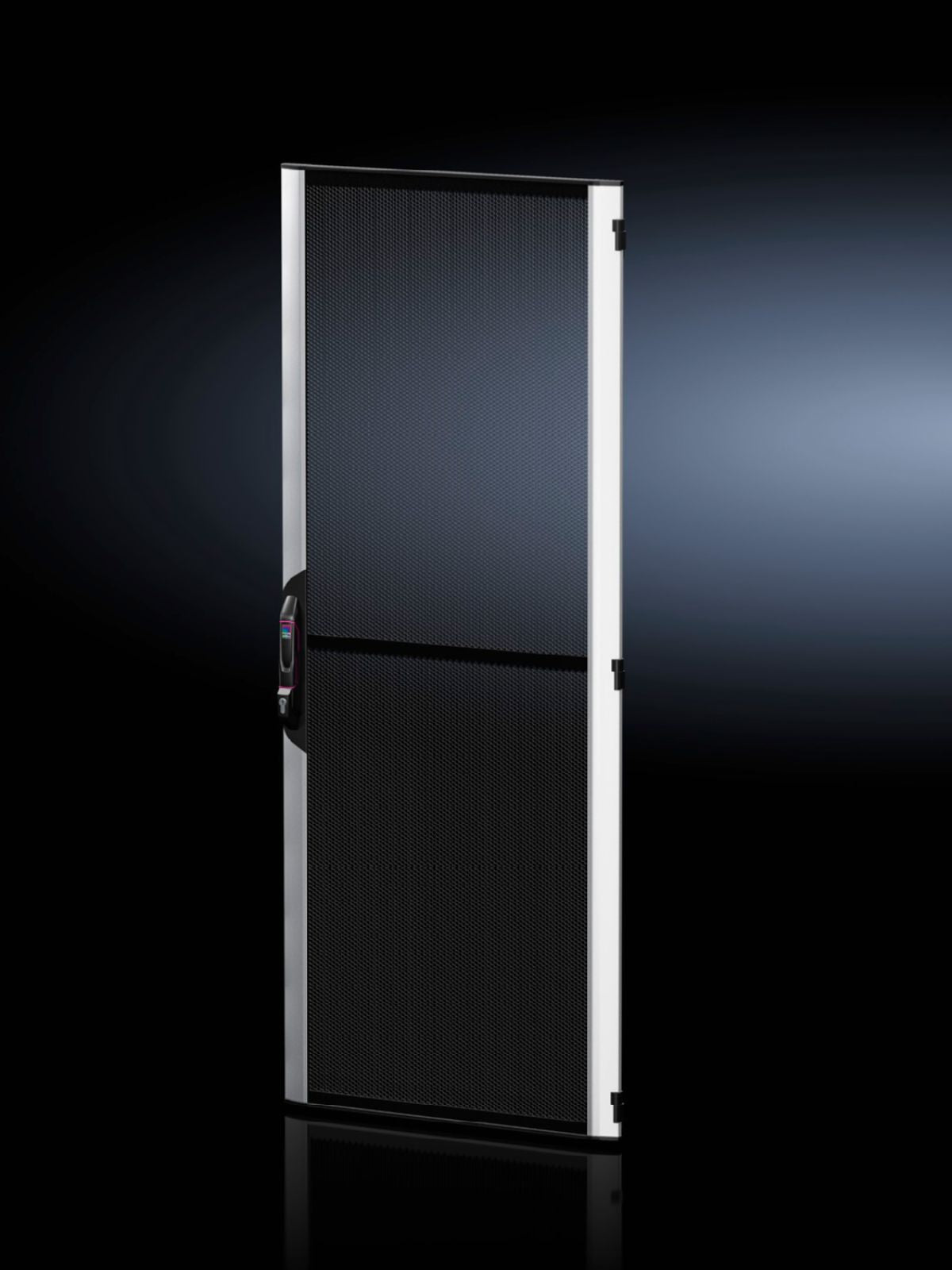

Rittal DK 5301.446, Aluminium/sheet steel door, vented for VX IT
Rittal DK 5301.446, Aluminium/sheet steel door, vented for VX IT
Regular price
€484,49
Regular price
Sale price
€484,49
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 03.12.2025
Couldn't load pickup availability
SKU: SKU:DK 5301.446
To replace existing doors. The vented surface area is approx. 85% perforated.
| Article number: | DK 5301.446 |
| Product description | To replace existing doors. The vented surface area is approx. 85% perforated. |
| Material | Frame: Extruded aluminium sectionVent grille: Sheet steelVertical extrusion: Aluminium, anodisedHorizontal extrusion: Aluminium, spray finished |
| Colour | Comfort handle VX, hinges, horizontal extrusion, vent grille: RAL 9005Vertical profile: silver coloured |
| Supply includes | Door with comfort handle for semi-cylinders with security lock 3524 E3 x 180° hinges, fittedAssembly parts |
| Assembly instruction | For a door opening angle of 180° when baying, a 180° baying hinge is required |
| Note | Door opening angle for stand-alone siting: max. 240° |
| To fit | Enclosure type: VX ITWidth: = 800 mmHeight: = 2,000 mm |
| Packs of | 1 pc(s). |
| Net weight | 10.3 kg |
| Gross weight | 11.2 kg |
| PCF per pack (cradle-to-gate) | 42.7 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| EAN | 4028177955059 |
| ETIM 9 | EC000747 |
| ECLASS 8.0 | 27182204 |
| Product description | Aluminium / sheet steel door, ventilated for VX IT, to replace existing doors. The vented surface area is approx. 85% perforated. For enclosure width 800 mm, for enclosure height 2,000 mm |
