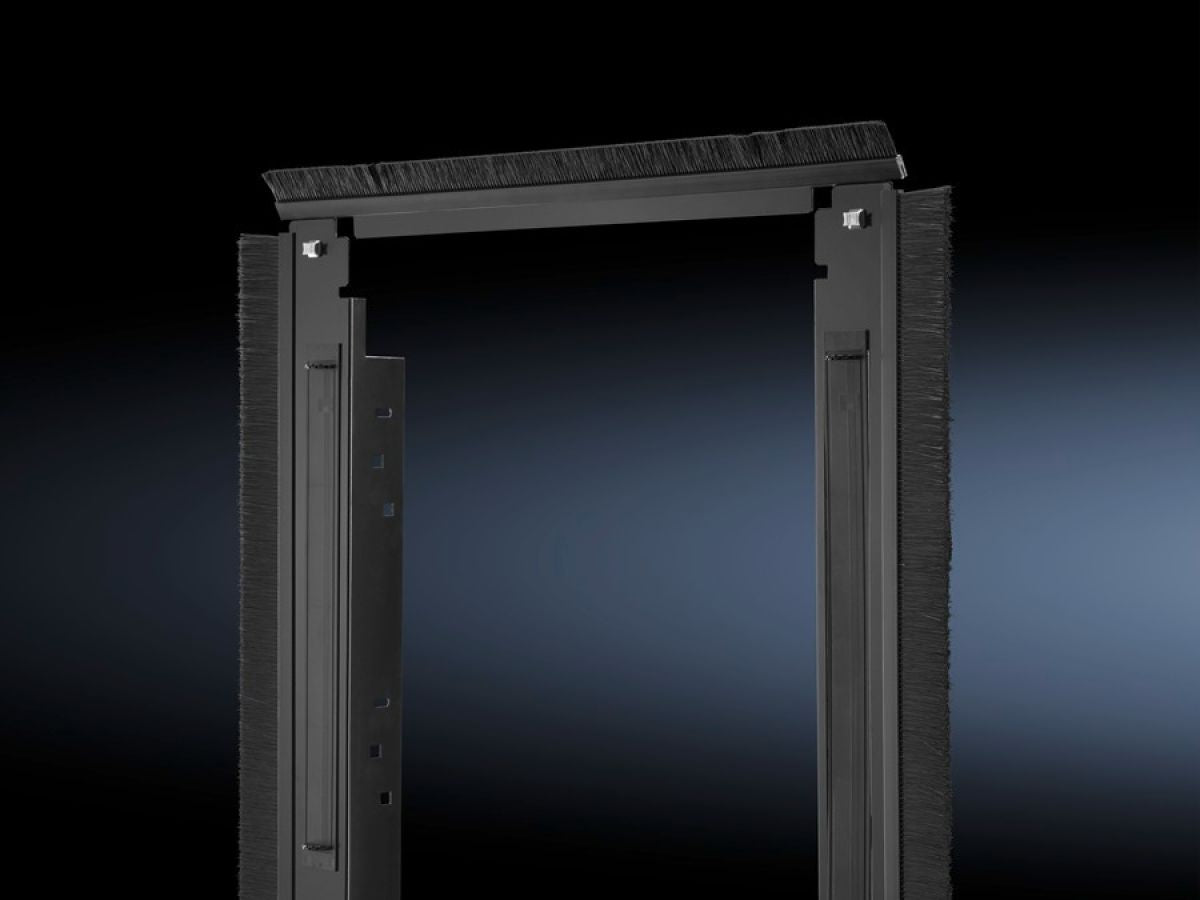

Rittal DK 5302.011, Air baffle plate for VX IT 482.6 mm (19") mounting angles, standard
Rittal DK 5302.011, Air baffle plate for VX IT 482.6 mm (19") mounting angles, standard
Regular price
€209,55
Regular price
Sale price
€209,55
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 03.12.2025
Couldn't load pickup availability
SKU: SKU:DK 5302.011
To separate the hot/cold zones within an enclosure with aisle containment or when using an LCP system.
| Article number: | DK 5302.011 |
| Benefits | To selectively boost the energy efficiency of your climate control system |
| Applications | To separate the hot/cold zones within an enclosure with aisle containment or when using an LCP system. |
| Material | Sheet steelBlanking panel: Plastic, UL 94-HB, halogen-freeBrush strip: Plastic, UL 94-HB |
| Surface finish | Spray-finished |
| Colour | RAL 9005 |
| Supply includes | 2 vertical trim panels2 horizontal trim panels4 brush strips4 cellular PU foam piecesAssembly parts4 blanking panels, 482.6 mm (19"), 1 U |
| Assembly instruction | The vertical trim panels with brush strip may be fitted on both the front and rear 482.6 mm (19") mounting angles for partitioning. |
| To fit | Width: = 800 mmHeight: = 1,200 mm |
| Packs of | 1 pc(s). |
| Net weight | 6.5 kg |
| Gross weight | 6.72 kg |
| PCF per pack (cradle-to-gate) | 20.3 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177955264 |
| ETIM 9 | EC000331 |
| ECLASS 8.0 | 27189272 |
| Product description | Air baffle plate, for VX IT 19" mounting angles, standard, to separate the hot/cold zones within an enclosure with aisle containment or when using an LCP system. WxH: 800x1200 mm, RAL 9005 |
