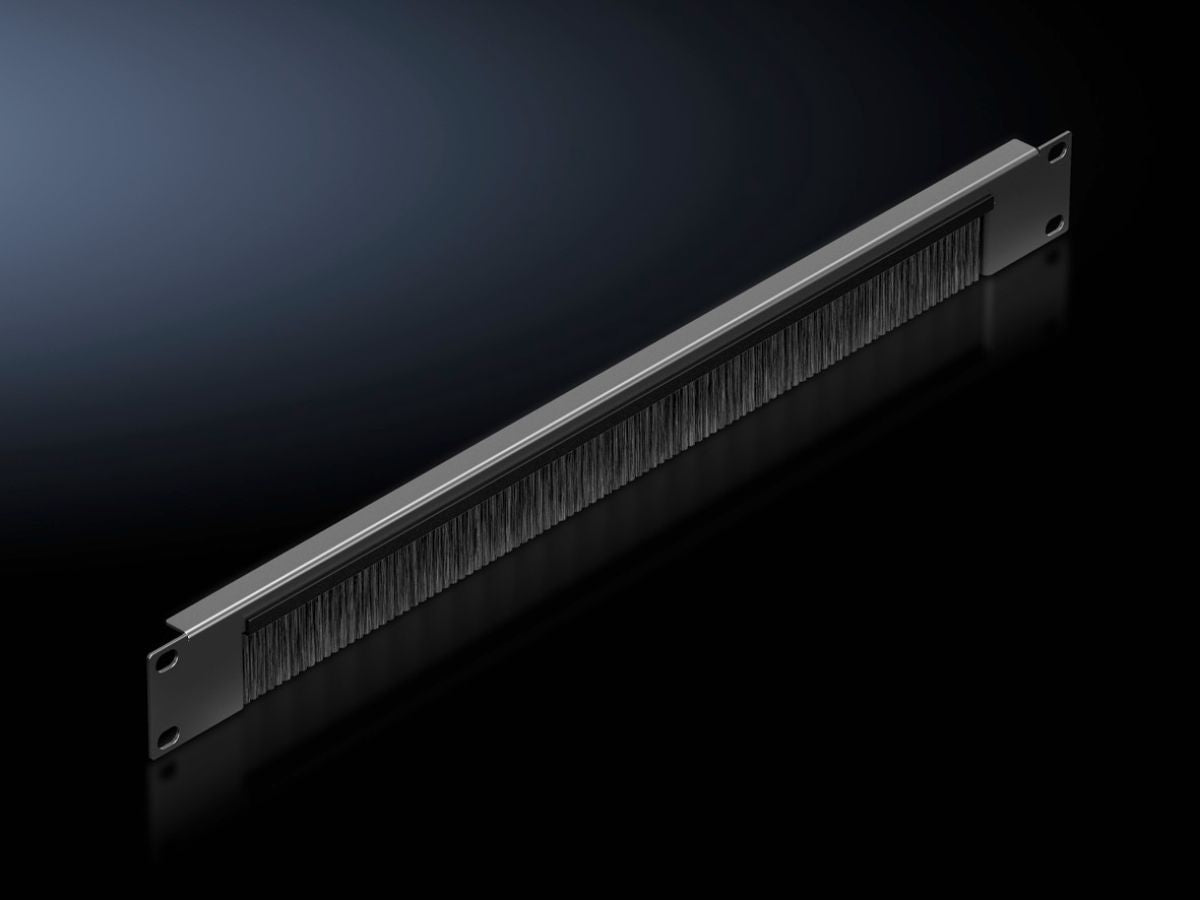

Rittal DK 5302.202, Cable management panel with brush strip 482.6 mm (19")
Rittal DK 5302.202, Cable management panel with brush strip 482.6 mm (19")
Regular price
€44,76
Regular price
Sale price
€44,76
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 5302.202
With cut-out 390 x 40 mm (2 U) or 390 x 20 mm (1 U) with brush insert, accommodation facility for cable clamp straps.
| Article number: | DK 5302.202 |
| Product description | For convenient, simple cable routing between two areas separated by a 482.6 mm (19") mounting level, for example, between the front and rear areas of the 482.6 mm (19") mounting level. |
| Benefits | To make the cable entry larger, two panels are easily combined with one another |
| Applications | For locking and simultaneous cable routing in installation zones to the 1 U, 482.6 mm (19") mounting standard |
| Material | Sheet steelBrush strip: Plastic, UL 94 HB, halogen-freeBrush strip fibres: Plastic PA6, halogen-freeBrush strip mounting body: Plastic PVC, contains halogen |
| Surface finish | Spray-finished |
| Colour | RAL 9005 |
| Mounting cut-out | Width:390 mmHeight:30 mm |
| Dimensions | Width: 482.6 mm |
| Units | 1 U |
| Packs of | 1 pc(s). |
| Net weight | 0.2 kg |
| Gross weight | 0.243 kg |
| PCF per pack (cradle-to-gate) | 0.9 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 94039910 |
| EAN | 4028177952874 |
| ETIM 9 | EC000322 |
| ECLASS 8.0 | 27400604 |
| Product description | Cable gland panel with brush strip, 1 U, 482.6 mm (19"), sheet steel, RAL 9005 |
