Rittal

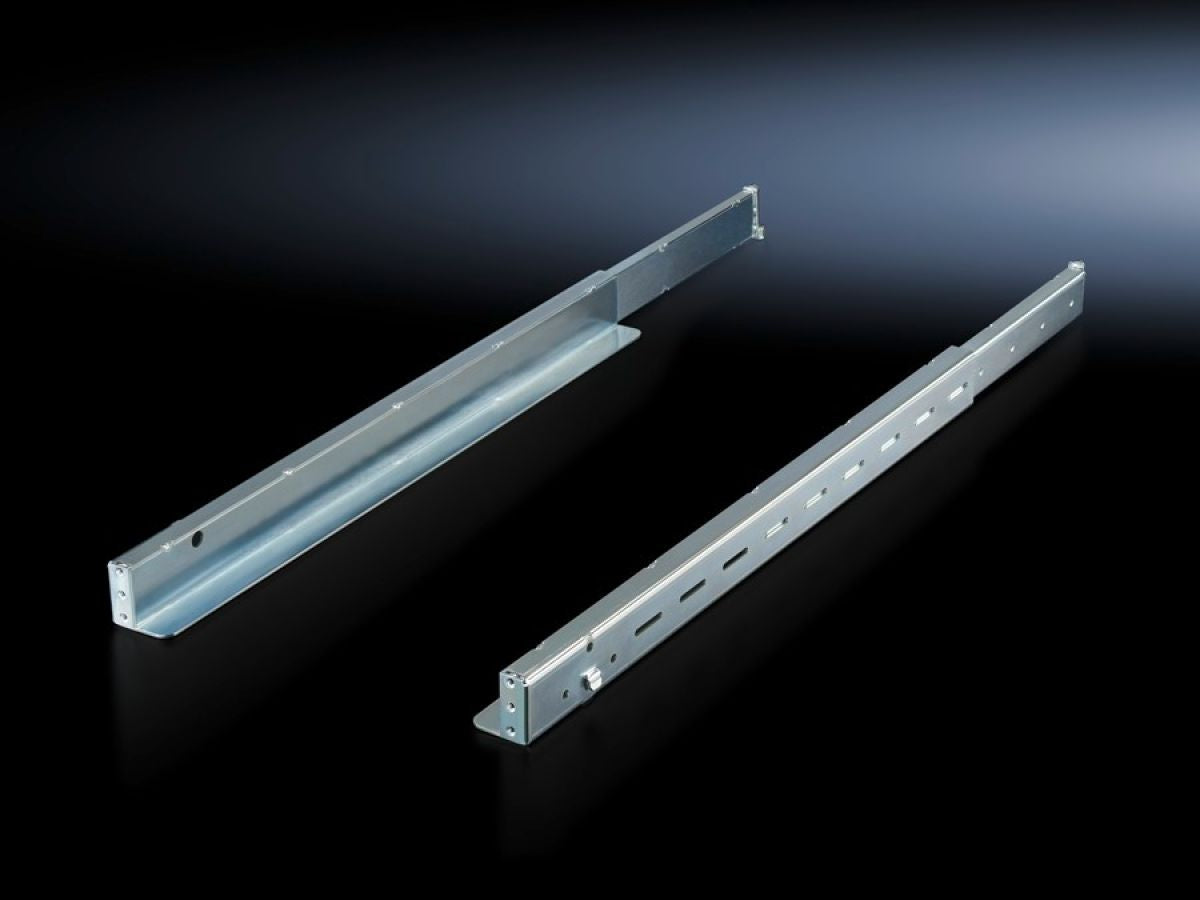

Rittal DK 5501.460, Slide rail, 1 U, depth-variable for VX IT, TE, TX CableNet
Rittal DK 5501.460, Slide rail, 1 U, depth-variable for VX IT, TE, TX CableNet
Regular price
€114,59
Regular price
Sale price
€114,59
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 5501.460
For mounting between a front and a rear pair of mounting angles.
| Article number: | DK 5501.460 |
| Benefits | Tool-free, time-saving one-man assembly from the enclosure front |
| Applications | For mounting on the front mounting level |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | Assembly parts |
| Installation options | 482.6 mm (19") L mounting angles, front and rear |
| Load capacity | 800 N |
| Note | Effective contact surface 25 mm per side |
| To fit | Enclosure type: VX ITTETX CableNet |
| Distance between levels | 400 ‐ 600 mm |
| Packs of | 2 pc(s). |
| Net weight | 2.164 kg |
| Gross weight | 2.34 kg |
| PCF per pack (cradle-to-gate) | 9 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177679016 |
| ETIM 9 | EC002620 |
| ECLASS 8.0 | 27189261 |
| Product description | DK Slide rail, support surface width: 25 mm, depth-variable, 80 kg, For two 482.6 mm (19")-mounting angles (front+rear), distance between levels:: 400-600 mm |
