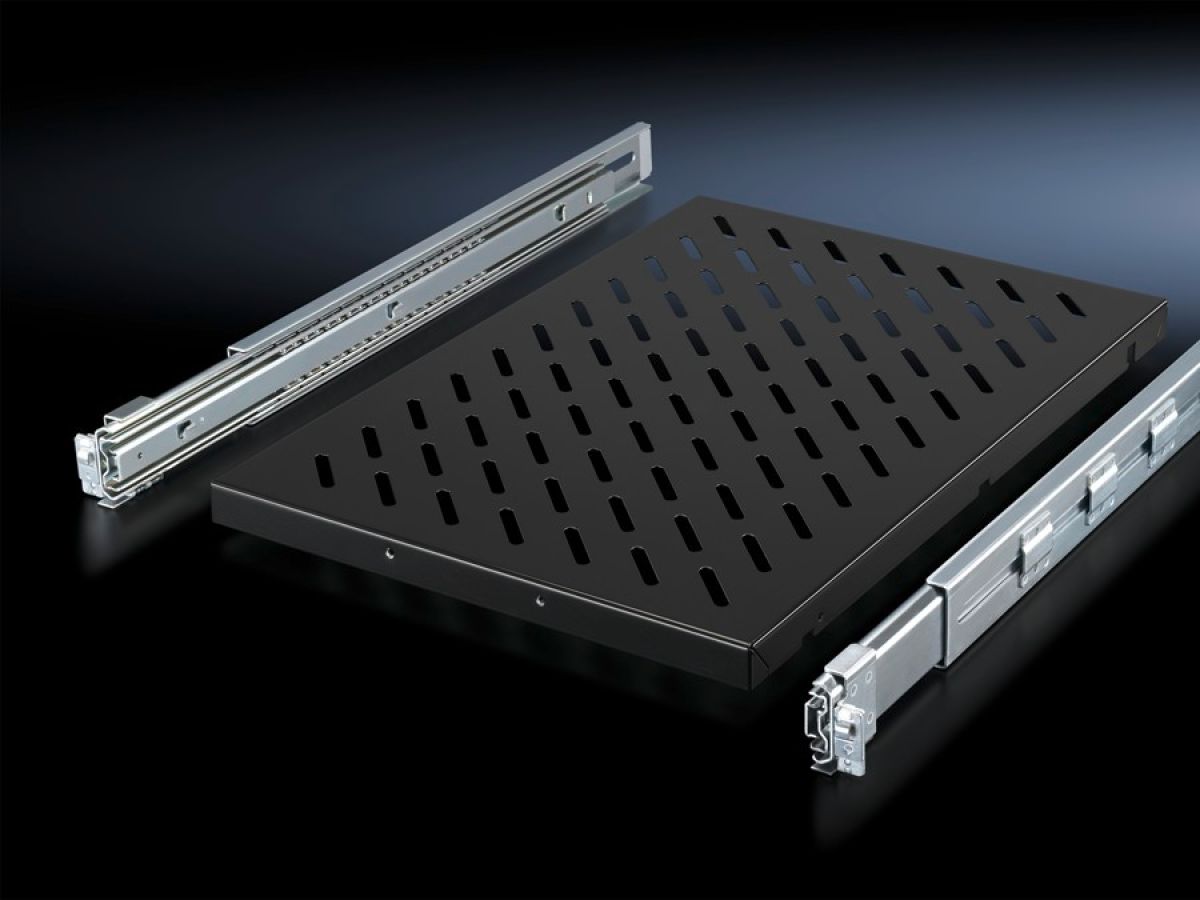

Rittal DK 5501.685, Component shelf, pull-out for VX IT, TS IT, TE, TX CableNet
Rittal DK 5501.685, Component shelf, pull-out for VX IT, TS IT, TE, TX CableNet
Regular price
€191,42
Regular price
Sale price
€191,42
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 5501.685
For mounting between two 482.6 mm (19˝) mounting angles.
| Article number: | DK 5501.685 |
| Product description | For mounting between two 482.6 mm (19”) mounting levels, on 482.6 mm (19”) mounting angles or 482.6 mm (19”) mounting frames. |
| Benefits | Tool-free, time-saving one-man assembly from the enclosure front |
| Applications | Depth-variable to adapt to individual distances between levels |
| Material | Sheet steel |
| Surface finish | Base: Spray-finishedTelescopic slides/installation kit: Zinc-plated |
| Colour | RAL 9005 |
| Supply includes | Component shelf, slottedTelescopic slide with mounting kitAssembly parts |
| Load capacity | 50 kg |
| Dimensions | Width: 419 mmDepth: 700 mm |
| To fit | Enclosure type: VX ITTS ITTETX CableNet |
| Distance between levels | 600 ‐ 900 mm |
| Packs of | 1 pc(s). |
| Net weight | 7.953 kg |
| Gross weight | 8.52 kg |
| PCF per pack (cradle-to-gate) | 32.4 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177679122 |
| ETIM 9 | EC002620 |
| ECLASS 8.0 | 27189261 |
| Product description | DK Component shelf, WHD: 419x1 Ux700 mm, 50 kg, distance between levels: 600-900 mm, Pull-out, RAL 9005 |
