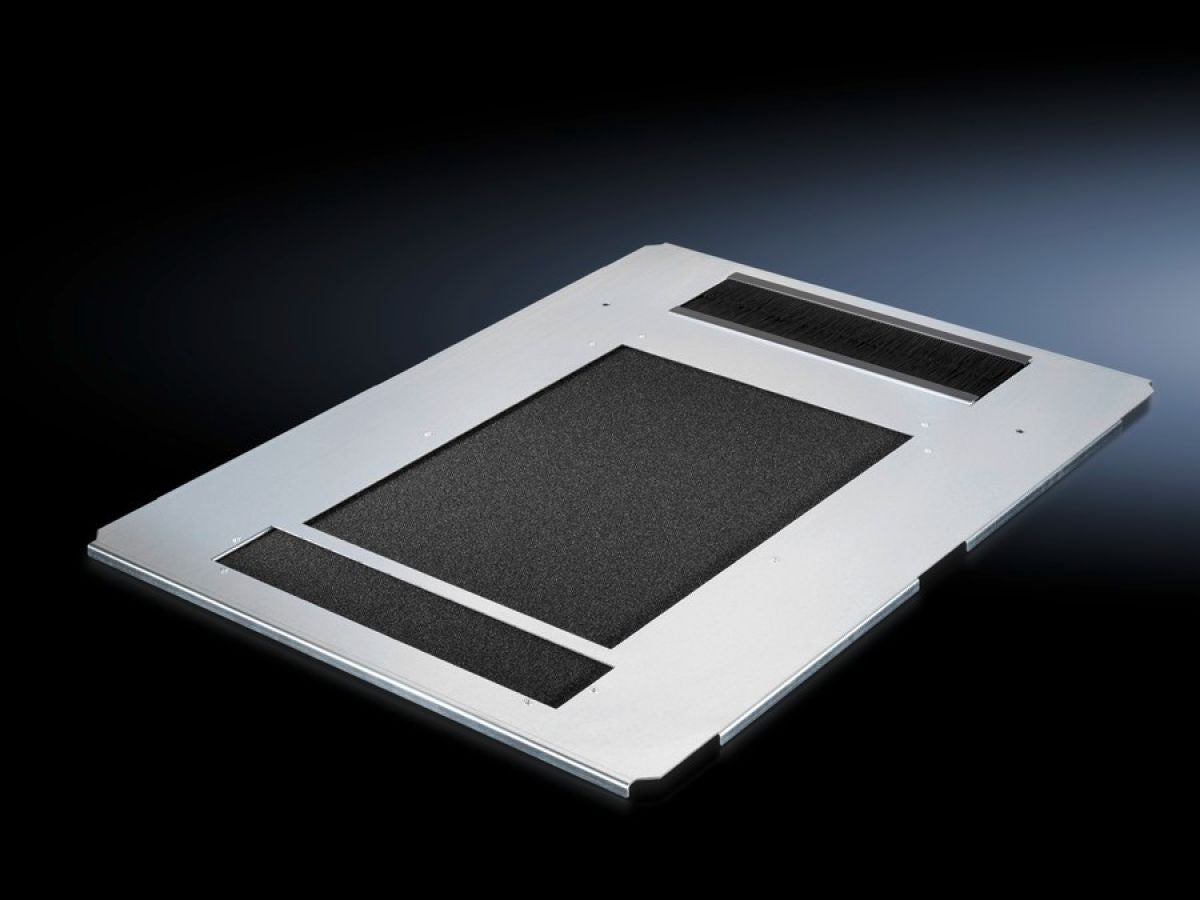

Rittal DK 5502.330, Gland plate, one-piece, vented for TS IT, TX CableNet
Rittal DK 5502.330, Gland plate, one-piece, vented for TS IT, TX CableNet
Regular price
€146,72
Regular price
Sale price
€146,72
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 5502.330
Potential equalisation is provided via assembly components and earthing points. The gland plate set is used to conceal the entire base opening.
| Article number: | DK 5502.330 |
| Product description | To completely cover the open base assembly in one piece. Perforated over the entire surface. This allows cold air to flow in from the base or base/plinth area. This ensures the inflow of cold air, particularly in enclosures with rack climate control. With a brush strip at the rear for user-friendly cable entry from below across the entire enclosure width. Integral guides permit simple accommodation of a filter mat, which is also readily replaced. |
| Material | Sheet steelBrush strip: Plastic, UL 94-HBFilter mat: Foamed plastic |
| Surface finish | Zinc-plated |
| Supply includes | Gland plate, one-piece, vented, with cable entry at the rearFilter matAssembly parts |
| To fit | Enclosure type: TS ITTX CableNetWidth: 800 mmDepth: 800 mm |
| Packs of | 1 pc(s). |
| Net weight | 6.08 kg |
| Gross weight | 6.18 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177707818 |
| ETIM 9 | EC002620 |
| ECLASS 8.0 | 27189261 |
| Product description | DK Gland plate, one-piece, vented, with cable entry at the rear, incl. filter mat, for TS IT, CableNet, WxD: 800x800 mm |
