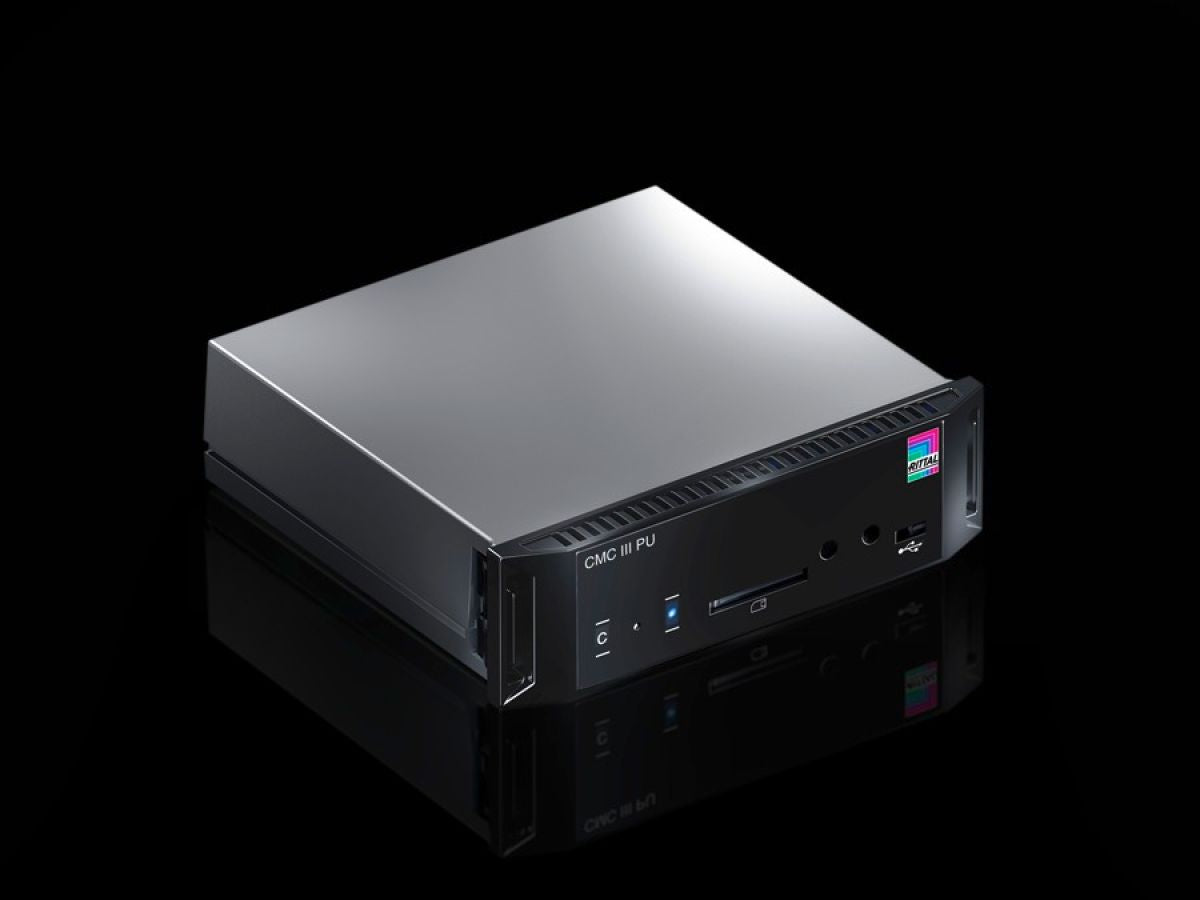

Rittal DK 7030.000, CMC III Processing Units
Rittal DK 7030.000, CMC III Processing Units
Regular price
€801,91
Regular price
Sale price
€801,91
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7030.000
The Processing Unit/Compact is the central unit of the CMC III monitoring system. Up to 32/4 external sensors/CAN-bus connection units may be linked to the integral sensors. The units are connected to the data network via Ethernet and configured via Web/USB. Alarms are sent via an email server and units are connected to the company’s network management system via SNMP.
| Article number: | DK 7030.000 |
| Product description | Central unit of the CMC III monitoring system. In addition, up to 32/4 external sensors/CAN-Bus connection units may be connected additionally to the integral sensors. |
| Benefits | High redundancy due to redundant power supply. |
| Applications | Enclosure monitoring in IT, industry and facility management |
| Function principle | Central monitoring unit for the CMC III system. |
| Design | Piezo signal generator for acoustic information |
| Material | Plastic |
| Surface finish | Front: SmoothEnclosure: Textured |
| Colour | Enclosure: RAL 7035Front: RAL 9005 |
| Supply includes | Basic systemTemperature sensor including connection cable (supplied loose)Infrared access sensor (integrated)Assembly parts for mounting on surfaces |
| Infrared access sensor | Yes |
| Integral temperature sensor | Yes |
| Interface bus system | 2 x RJ45 CAN bus |
| Alarm relay output | Terminal up to 1.5 mm² (max. 24 V DC/1 A) |
| Interfaces | Mini USB |
| Mobile website | For Android and Windows phones |
| Network interface | Ethernet to IEEE 802.3 via 10/100BaseT full-duplex, 10/100 Mbit/s, PoE |
| Interface UPS | Terminal |
| Serial interface | RJ12 |
| Interface streaming | Axis network camera with VAPIX® version 3 |
| Number of sensors (max.) | 32 |
| Note | Unencrypted protocols may be deactivated for enhanced network security |
| LED displays (rear) | Network status |
| LED displays (front) | Status |
| Protocols | TCP/IPv4 |
| Dimensions | Width: 138 mmHeight: 40 mmDepth: 132 mm |
| Operating temperature range | 0 °C...45 °C |
| Ambient humidity (non-condensing) | 5...95 % |
| Packs of | 1 pc(s). |
| Net weight | 0.4 kg |
| Gross weight | 0.64 kg |
| Customs tariff number | 85311095 |
| EAN | 4028177659322 |
| ETIM 9 | EC002627 |
| ETIM 8 | EC002627 |
| ECLASS 8.0 | 27189253 |
| Product description | DK CMC III Processing Unit, Central unit of the CMC III monitoring system, WHD: 138x40x132 mm, max. 32 sensors |
