Rittal

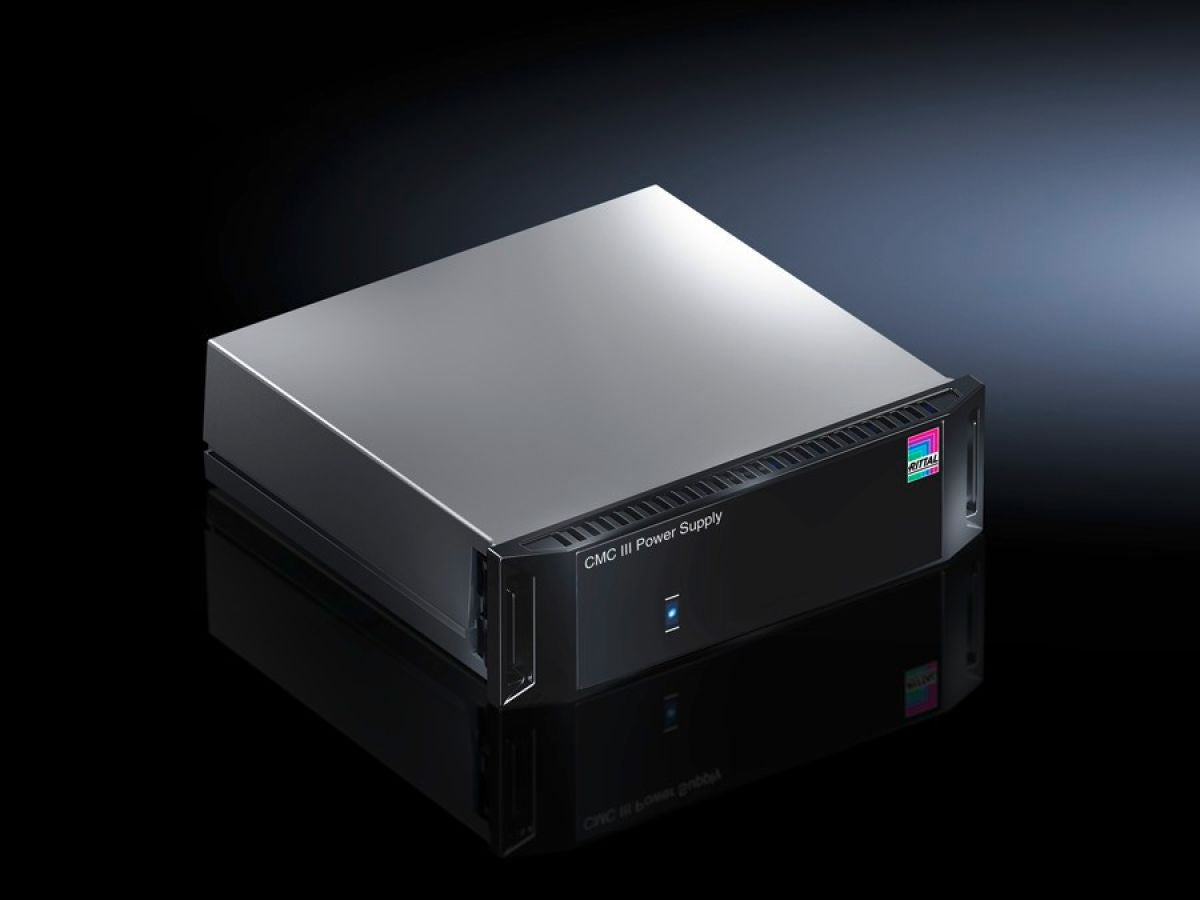

Rittal DK 7030.060, CMC III power pack for PU, PU Compact, LED light strip, door control module
Rittal DK 7030.060, CMC III power pack for PU, PU Compact, LED light strip, door control module
Regular price
€140,72
Regular price
Sale price
€140,72
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 06.01.2026
Couldn't load pickup availability
SKU: SKU:DK 7030.060
CMC III power pack for use across multiple voltage ranges.
| Article number: | DK 7030.060 |
| Product description | The power pack is specifically tailored to the CMC III design and may be positioned in a mounting unit. As well as a special connector for the CMC III Processing Unit/Compact, there are also two further terminals available as 24 V outputs. |
| Material | Plastic |
| Surface finish | Front: SmoothEnclosure: Textured |
| Colour | Front: RAL 9005Enclosure: RAL 7035 |
| Supply includes | Connection cable 24 V (DC)Assembly parts for mounting on surfaces |
| Length of connection cable | 600 mm |
| Input connection | IEC 320 connector C14 |
| Output current (max.) | 2.5 A |
| Dimensions | Width: 138 mmHeight: 40 mmDepth: 132 mm |
| Operating temperature range | 0 °C...40 °C |
| Output voltage | Output voltage: 24 V DC |
| Ambient humidity (non-condensing) | 5...95 % |
| Packs of | 1 pc(s). |
| Net weight | 0.65 kg |
| Gross weight | 0.652 kg |
| Customs tariff number | 85043121 |
| EAN | 4028177659384 |
| ETIM 9 | EC002627 |
| ECLASS 8.0 | 27189253 |
| Product description | DK CMC III Power pack, For power supply of the CMC III Processing Units, Input: C14 100-230 V, 50/60 Hz, Output: 24 V DC, 2 A |
