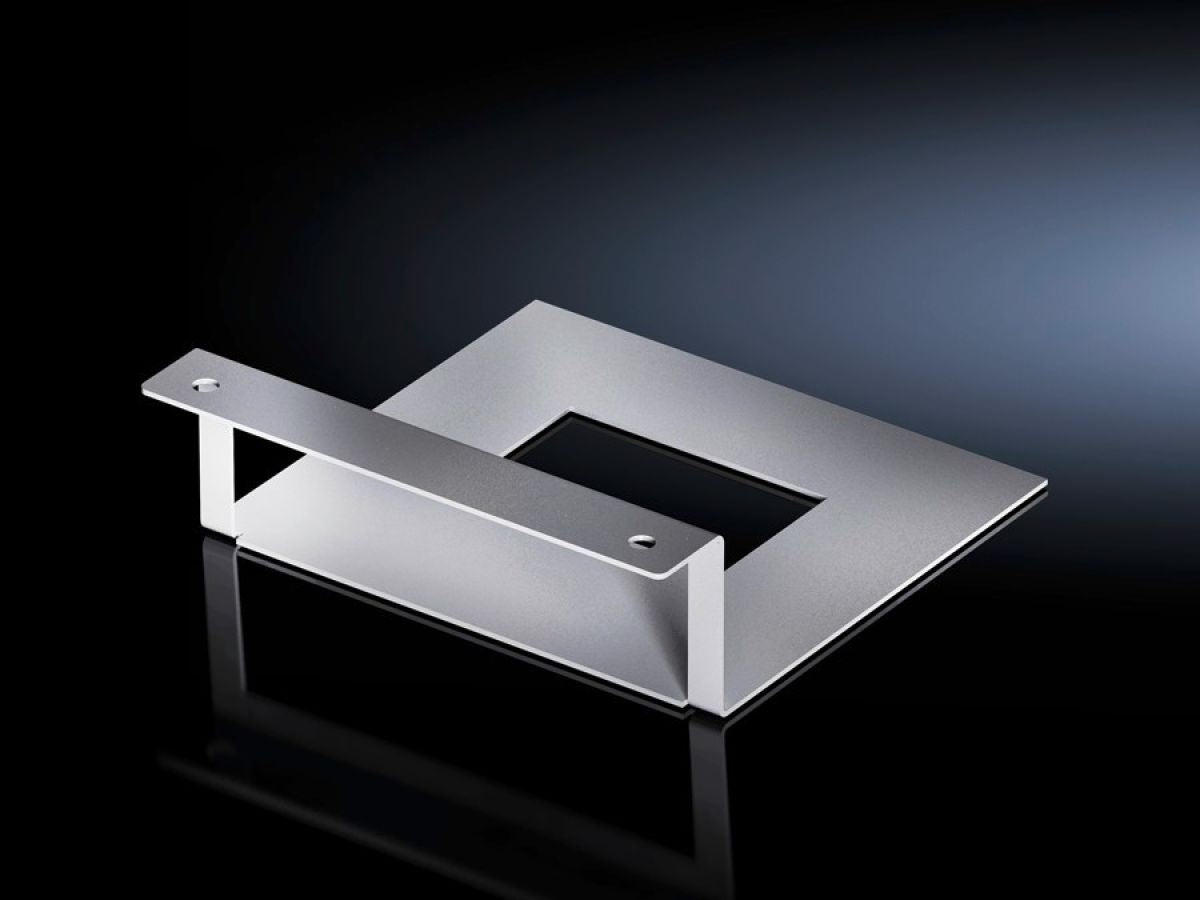

Rittal DK 7030.071, CMC III mounting units
Rittal DK 7030.071, CMC III mounting units
Regular price
€67,61
Regular price
Sale price
€67,61
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7030.071
To accommodate CMC III components.
| Article number: | DK 7030.071 |
| Design | For PU, PU Compact, control units, CMC III CAN bus unit and CMC III power pack. |
| Product description | Depending on the design, the mounting unit can accommodate 1 or 3 Processing Units / sensor units etc. The 482.6 mm version (19" levels) can accommodate 3 units. The enclosure frame version can accommodate 1 unit. |
| Benefits | Fire protection: Self-extinguishing to UL 94 HB |
| Applications | Accommodation of CMC III components. |
| Function principle | Can accommodate one unit and is mounted on the enclosure frame |
| Material | Sheet steelSheet steel |
| Surface finish | zinc-plated |
| Supply includes | Assembly parts |
| Number of locations | 1 |
| Installation options | Enclosure frame |
| Note | To accommodate one CMC III unit and for mounting on the enclosure frame |
| Dimensions | Width: 170 mmDepth: 160 mm |
| Packs of | 1 pc(s). |
| Net weight | 0.35 kg |
| Gross weight | 0.448 kg |
| PCF per pack (cradle-to-gate) | 1.7 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177662711 |
| ETIM 9 | EC002627 |
| ECLASS 8.0 | 27189253 |
| Product description | DK CMC III mounting units, WHD: 170x1 Ux160 mm |
