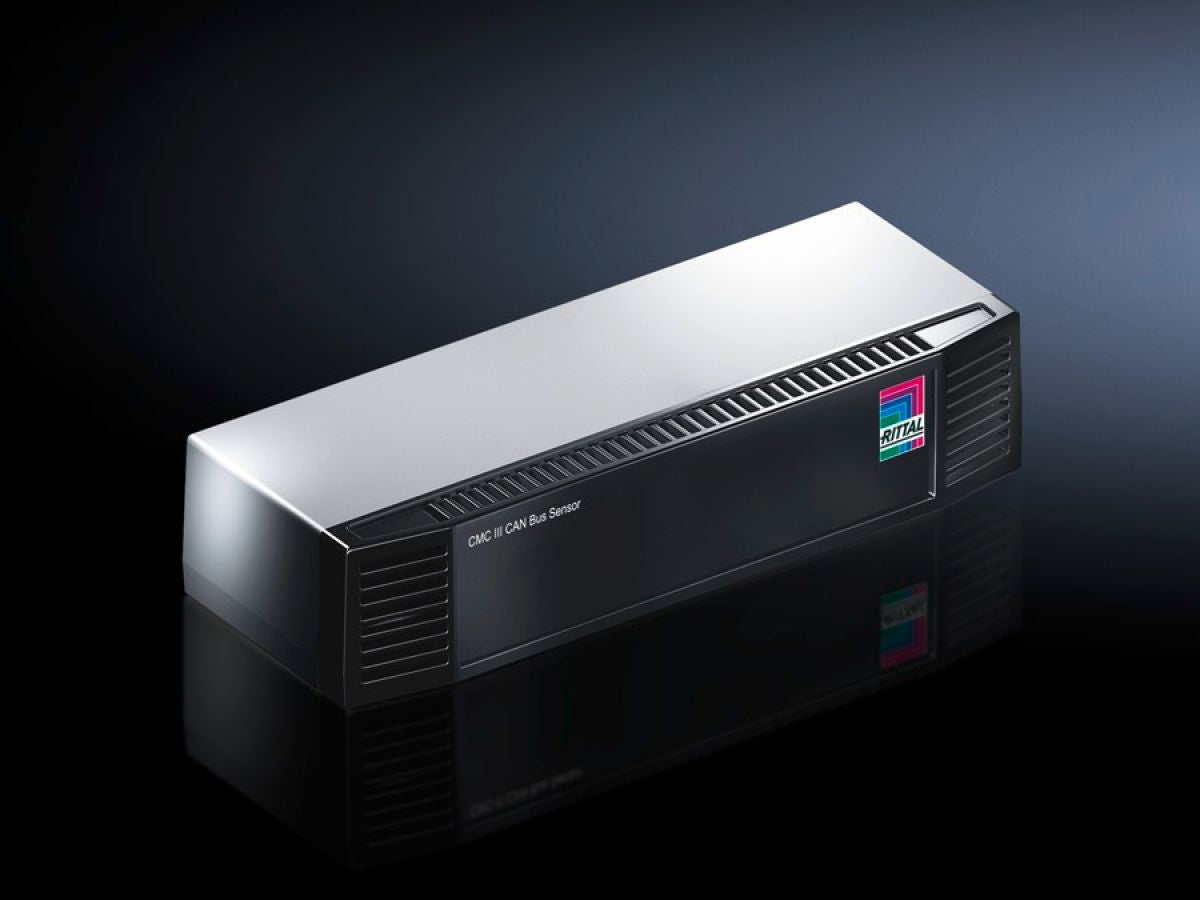

Rittal DK 7030.100, CMC III CAN bus sensor
Rittal DK 7030.100, CMC III CAN bus sensor
Regular price
€116,30
Regular price
Sale price
€116,30
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7030.100
For connecting a CMC-TC sensor
| Article number: | DK 7030.100 |
| Design | For connecting 5 access sensors or one smoke detector, one motion detector, one voltage monitor 48 V DC or one leakage sensor. |
| Product description | The CMC III CAN bus sensor supports the connection of selected sensors from the CMC-TC system to the current CMC III, allowing old applications to be upgraded with the CMC III Processing Unit / Compact. As well as the two CAN bus connections, the unit also has another connection for one of the CMC-TC sensors. In this way, the unit functions as an interface between the CMC-TC sensor and the current CMC III Processing Unit, and adapts the sensor data to the CAN bus protocol. |
| Benefits | Fast connection and automatic detection via plug & play |
| Technical specifications | 2 x CAN bus CMC III: RJ45 for CAN bus cable |
| Applications | Enclosure monitoring in IT, industry and facility management |
| Function principle | Settings can be made via the CMC III Processing Unit |
| Material | PlasticFront: SmoothEnclosure: Textured |
| Colour | Enclosure: RAL 7035Front: RAL 9005 |
| Supply includes | SensorMounting plateAssembly partsAssembly parts |
| Input connection | RJ 45 |
| Interface bus system | 2 x RJ45 CAN bus |
| Interfaces | RJ12 |
| No. of participating PU compact (max.) | 4 |
| No. of participating PU (max.) | 16 |
| Dimensions | Width: 110 mmHeight: 30 mmDepth: 40 mm |
| Operating temperature range | 0 °C...55 °C |
| Ambient humidity (non-condensing) | 5...95 % |
| Packs of | 1 pc(s). |
| Net weight | 0.12 kg |
| Gross weight | 0.18 kg |
| Customs tariff number | 85311095 |
| EAN | 4028177659476 |
| ETIM 9 | EC002627 |
| ECLASS 8.0 | 27189253 |
| Product description | DK CMC III CAN bus sensor, For connecting CMC-TC sensors, WHD: 110x30x40 mm, Interfaces: RJ12, 2xRJ45 CAN bus |
