Rittal

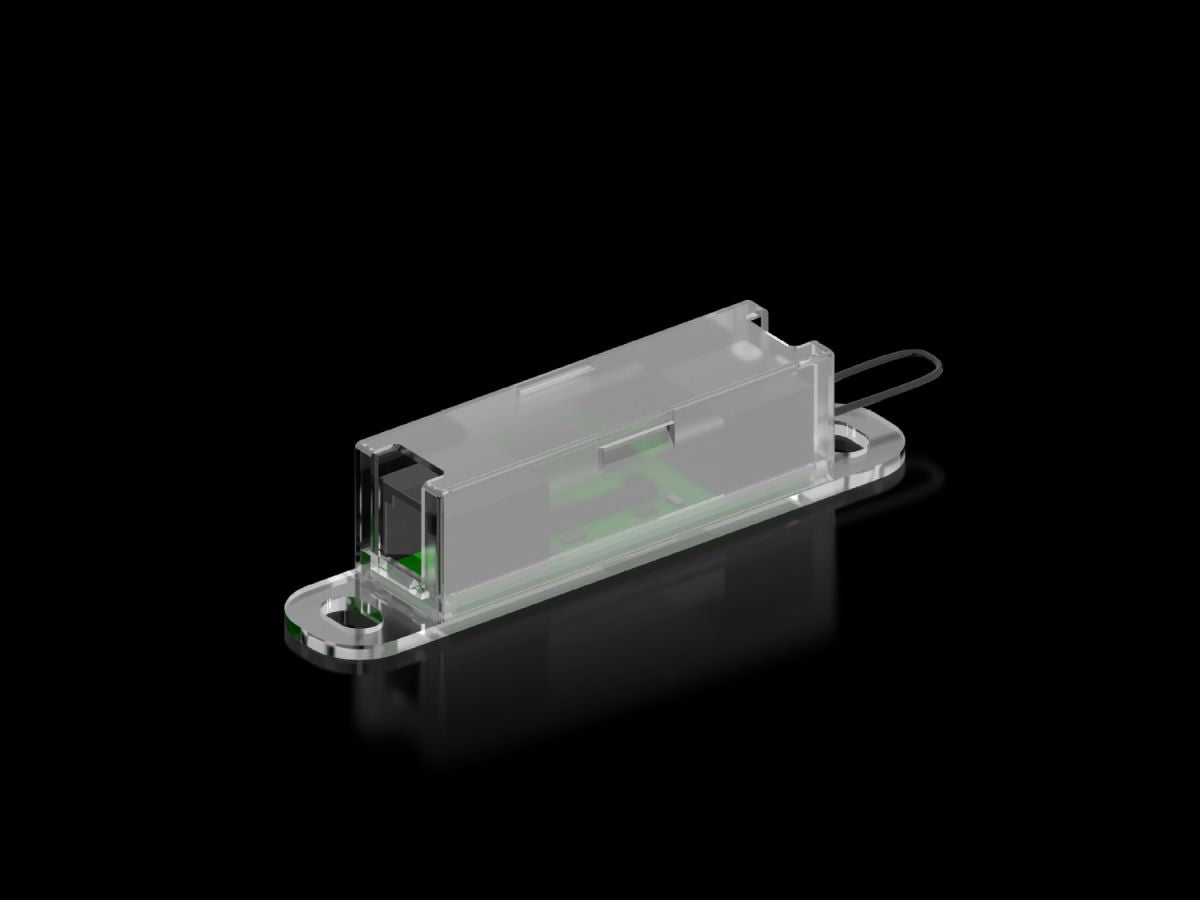

Rittal DK 7030.128, CMC III sensors
Rittal DK 7030.128, CMC III sensors
Regular price
€72,04
Regular price
Sale price
€72,04
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7030.128
CMC III access sensor VX
| Article number: | DK 7030.128 |
| Design | Access sensor VX |
| Product description | CMC III sensors are used for monitoring the physical environment and can be connected directly to the PU via a CAN bus connection cable RJ45. The sensors may also be linked together to form a bus. |
| Benefits | Fast connection and automatic detection via plug & play |
| Applications | Enclosure monitoring in IT, industry and facility management |
| Function principle | Recording of physical ambient parameters |
| Design | Sensor: Reed contact/magnet |
| Material | Plastic |
| Supply includes | SensorMounting plateAssembly partsAccess sensor VXCable 0.5 m |
| Connection to the CAN bus | Indirect, via CMC III CAN bus interfaces |
| Operating temperature range | 5 °C...45 °C |
| Ambient humidity (non-condensing) | 5...95 % |
| Packs of | 1 pc(s). |
| Net weight | 0.085 kg |
| Gross weight | 0.09 kg |
| PCF per pack (cradle-to-gate) | 0.3 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 85319000 |
| EAN | 4028177925830 |
| ETIM 9 | EC002627 |
| ECLASS 8.0 | 27189253 |
| Product description | CMC III Access sensor VX |
