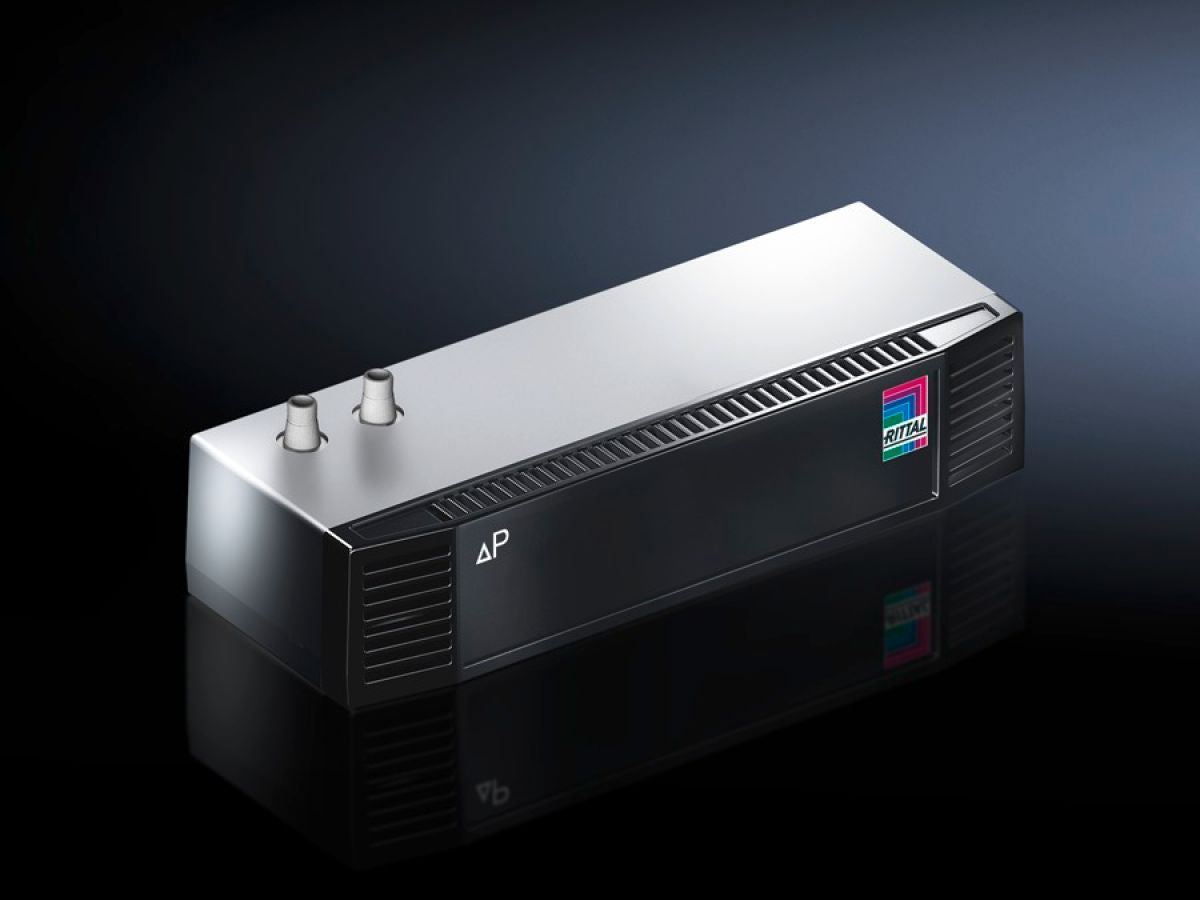

Rittal DK 7030.150, CMC III sensors
Rittal DK 7030.150, CMC III sensors
Regular price
€334,73
Regular price
Sale price
€334,73
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7030.150
CMC III analog differential pressure sensor
| Article number: | DK 7030.150 |
| Design | Analog differential pressure sensor |
| Product description | CMC III sensors are used for monitoring the physical environment and can be connected directly to the PU via a CAN bus connection cable RJ45. The sensors may also be linked together to form a bus. |
| Benefits | Fast connection and automatic detection via plug & play |
| Applications | Enclosure monitoring in IT, industry and facility management |
| Function principle | Settings can be made via the CMC III processing unit or IoT interface |
| Material | PlasticFront: SmoothEnclosure: Textured |
| Colour | Front: RAL 9005Enclosure: RAL 7035 |
| Supply includes | SensorMounting plateAssembly partsAnalog differential pressure sensor |
| Connection to the CAN bus | Direct |
| Interfaces | 2 x RJ45 CAN bus |
| No. of participants per IoT interface (max.) | 32 |
| No. of participating PU compact (max.) | 4 |
| No. of participating PU (max.) | 32 |
| No. of PDU devices (max.) | 16 |
| Measuring technique | Differential pressure measurement |
| Dimensions | Width: 110 mmHeight: 30 mmDepth: 40 mm |
| Operating temperature range | 0 °C...55 °C |
| Ambient humidity (non-condensing) | 5...95 % |
| Packs of | 1 pc(s). |
| Net weight | 0.4 kg |
| Gross weight | 0.539 kg |
| PCF per pack (cradle-to-gate) | 1.6 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 85319000 |
| EAN | 4028177659537 |
| ETIM 9 | EC002627 |
| ECLASS 8.0 | 27189253 |
| Product description | DK CMC III Analog differential pressure sensor, WHD: 110x30x40 mm |
