Rittal

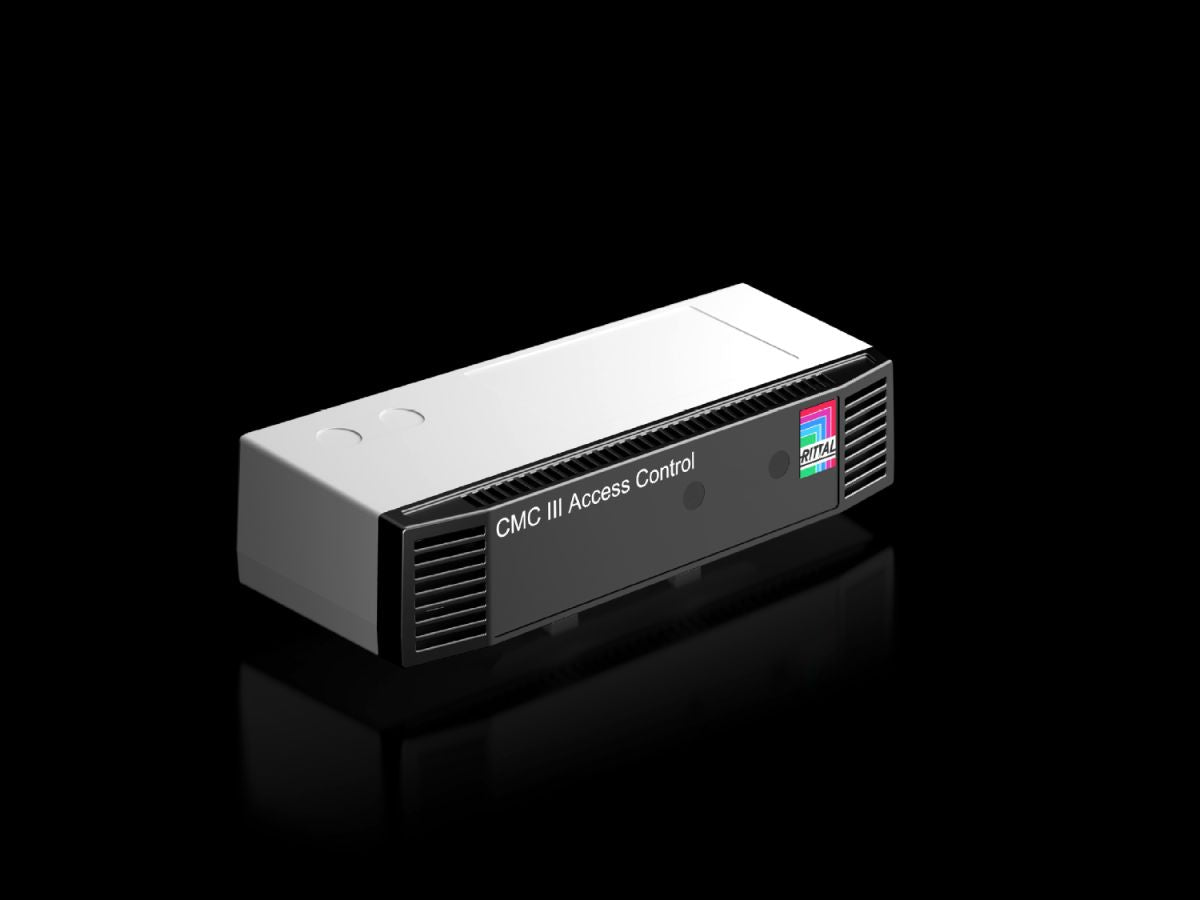

Rittal DK 7030.202, CMC III access control
Rittal DK 7030.202, CMC III access control
Regular price
€135,01
Regular price
Sale price
€135,01
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7030.202
CMC III unit for controlling and monitoring access to enclosures.
| Article number: | DK 7030.202 |
| Product description | CMC III unit for controlling and monitoring access to enclosures. One handle and one reader unit may be connected to one CMC III access control. The handles can be linked to various numerical codes or transponder cards via the CMC III Processing Unit/Compact website, which means that all the handles connected to a CMC III Processing Unit/Compact can be controlled with just one reader unit. The integral infrared sensor also ensures that the status of the controlled door (open/closed) is monitored. |
| Function principle | For connecting one handle and one reader unit to monitor a door |
| Design | Record of every access and each time the door is opened, with user information and time stamp |
| Material | PlasticFront: SmoothEnclosure: Textured |
| Surface finish | Front: SmoothEnclosure: Textured |
| Colour | Front: RAL 9005Enclosure: RAL 7035 |
| Supply includes | CMC III access controlMounting plateAssembly parts |
| Interface bus system | 2 x RJ45 CAN bus |
| Interfaces | RJ12 |
| No. of participants per IoT interface (max.) | 5 |
| No. of participating PU compact (max.) | 2 |
| No. of participating PU (max.) | 16 |
| Dimensions | Width: 110 mmHeight: 30 mmDepth: 40 mm |
| Operating temperature range | 0 °C...55 °C |
| Ambient humidity (non-condensing) | 5...95 % |
| Packs of | 1 pc(s). |
| Net weight | 0.175 kg |
| Gross weight | 0.183 kg |
| Customs tariff number | 85311095 |
| EAN | 4028177925847 |
| ETIM 9 | EC002627 |
| ECLASS 8.0 | 27189253 |
| Product description | CMC III Access Control |
