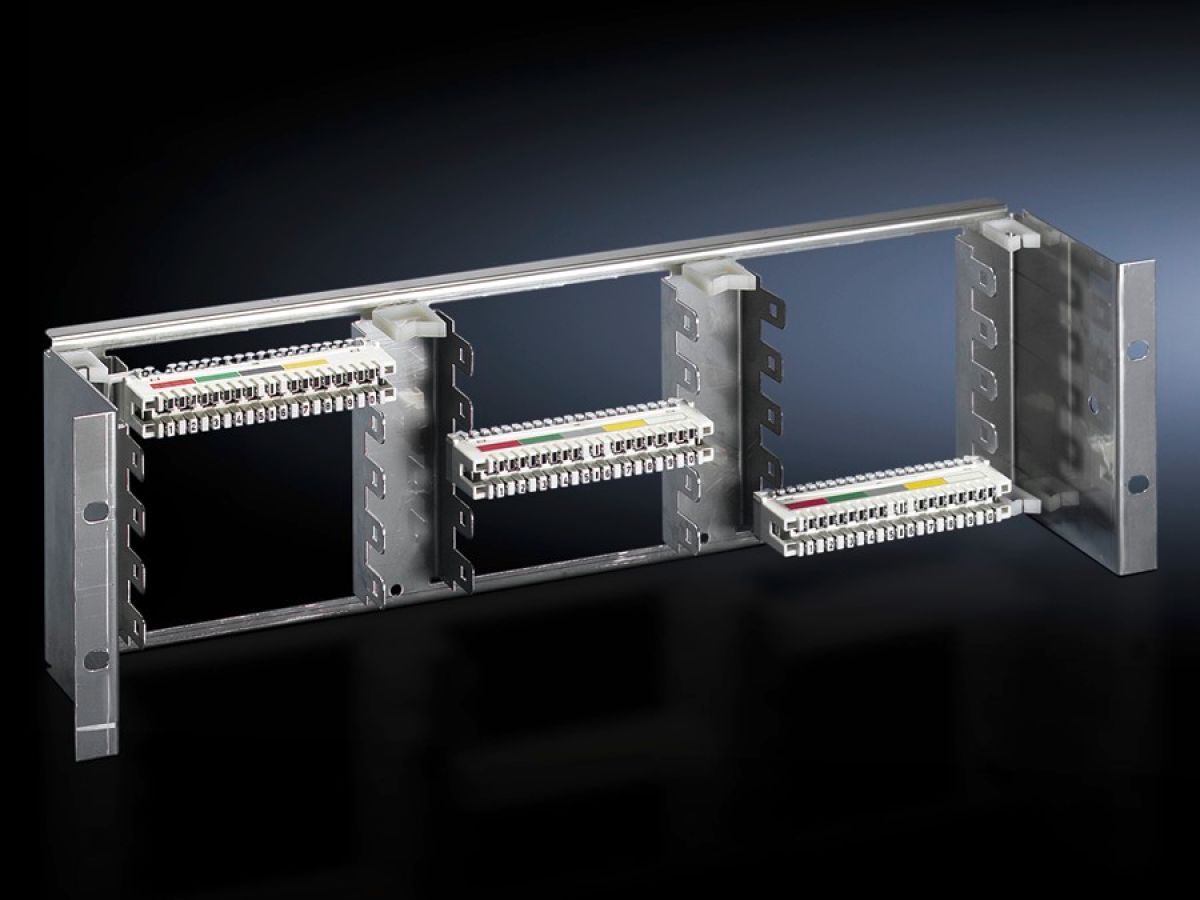

Rittal DK 7050.100, Support unit, 3 U for LSA-Plus strips, max. 150 paired wires
Rittal DK 7050.100, Support unit, 3 U for LSA-Plus strips, max. 150 paired wires
Regular price
€66,32
Regular price
Sale price
€66,32
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7050.100
For LSA-Plus strips, max. 150 paired wires, to accommodate a maximum of 15 LSA-Plusstrips (each with 10 paired wires). 3 x 5 LSA-Plus connection strips 2/10, series 2, horizontally.
| Article number: | DK 7050.100 |
| Product description | To accommodate a maximum of 15 LSA-Plus strips (each with 10 paired wires). 3 x 5 LSA-Plus connection strips 2/10, series 2, may be installed horizontally. Strip length 124 mm, height pitch pattern 22.5 mm. The support unit may be integrated in all 482.6 mm (19") mounting levels. The mounting level is recessed 75 mm behind the 482.6 mm (19") flanges. Integral shunting rings enable tidy routing and distribution of the telecommunication cables. |
| Material | Stainless steel |
| Supply includes | Support unit, 8 shunting rings |
| Packs of | 1 pc(s). |
| Net weight | 0.68 kg |
| Gross weight | 0.8 kg |
| Customs tariff number | 94039910 |
| EAN | 4028177147591 |
| ETIM 9 | EC002620 |
| ECLASS 8.0 | 27189261 |
| Product description | DK Support unit for LSA strips, 3 U |
