Rittal

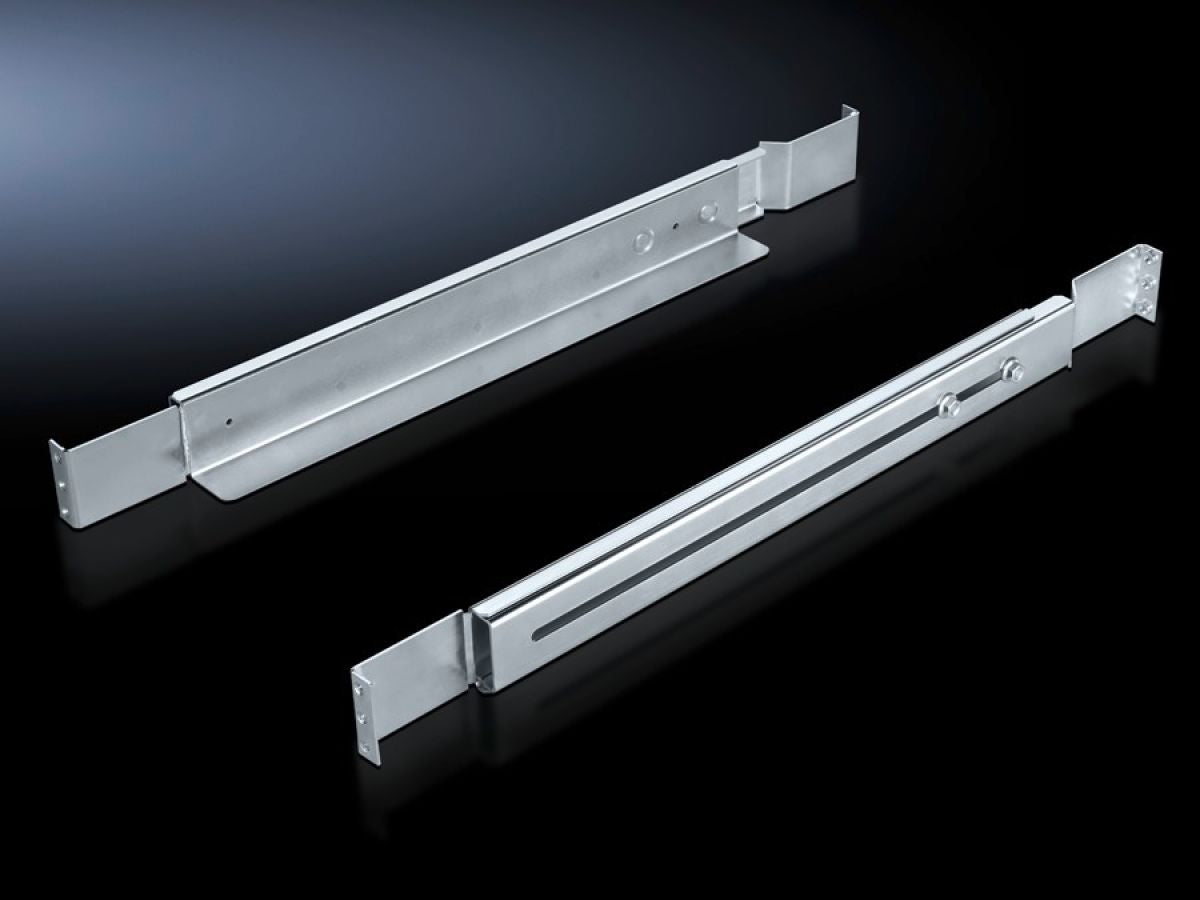

Rittal DK 7063.750, Slide rail, 1 U, depth-variable for VX IT, TE
Rittal DK 7063.750, Slide rail, 1 U, depth-variable for VX IT, TE
Regular price
€109,02
Regular price
Sale price
€109,02
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7063.750
For server and network enclosures with two 482.6 mm (19") mounting levels, for mounting both on cranked and L-shaped mounting angles, 482.6 mm (19") mounting frames and on TE, pull-out.
| Article number: | DK 7063.750 |
| Product description | For direct attachment to the 482.6 mm (19") system punchings on the mounting angles. The slide rails are pulled out to the required length and secured between the front and rear mounting level on the 482.6 mm (19") pitch pattern. |
| Benefits | No loss of U |
| Applications | For mounting on the front mounting level |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | Assembly parts |
| Installation options | For attachment between the front and rear 482.6 mm (19") mounting level |
| Load capacity | 20 kg static load |
| Note | Effective contact surface 30 mm per side |
| Contact surface | Width: 30 mm |
| Distance between levels | 390 ‐ 550 mm |
| Packs of | 2 pc(s). |
| Net weight | 1.8 kg |
| Gross weight | 1.98 kg |
| PCF per pack (cradle-to-gate) | 7.5 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177625440 |
| ETIM 9 | EC002625 |
| ECLASS 8.0 | 27189234 |
| Product description | DK Slide rail, Support surface Width: 30 mm, 1 U, depth-variable, 20 kg, static, distance between levels: 390-550 mm, For TS IT, TE |
